Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
XIMI, ximiir
Model Number :
KR202
Price :
Deliberation
MOQ :
1PC
Certification :
CE, FCC, ROHS
Delivery Time :
1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated
Payment Terms :
L/C D/A D/P T/T Western Union MoneyGram
Supply Ability :
1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated
Model :
KR202
Card Type :
EM / Mifare
Color :
Black
Power / Current :
12VDC / Max.70mA
Size :
86*86*16.3
Wiegand OUT :
26/34
Waterproof :
IP65
Packaging Details :
1pc/box, 10pcs/carton
Description

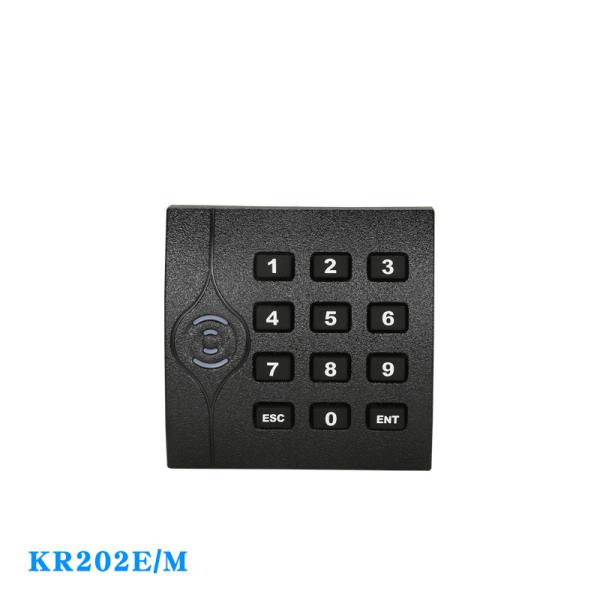

Kr202 IP65 125Khz Rfid Card Reader For Access Control System Mifare Card And Key Wiegand Card Reader

Kr202 Wiegand Card Reader , 125khz Rfid Reader For Access Control System

1. 125KHZ EM / 13.56MHZ Mifare Proximity Card
2. Read Range: Up to 10CM 125KHZ; Up to 5CM 13.56MHZ
3. 26/34bit Wiegand (default).
4. Easy to install on Metal Door Frame or Mullion.
5. External LED Control.
6. External Buzzer Control.
7. Indoor / Outdoor Operation.
8. Solid Epoxy Potted
9. Waterproof IP65
10. Reverse Polarity Protection

Kr202 Wiegand Card Reader , 125khz Rfid Reader For Access Control System

Model

KR202E

KR202M

Read Range

Up to 10CM

Up to 5CM

Reading Time (Card)

≤300ms

Power / Current

DC 6-14V / Max.70mA

Input Port

2ea (External LED Control, External Buzzer Control)

Card Output Format

26bit Wiegand (default)

34bit Wiegand (default)

PIN Output Format

8 bit

LED Indicator

2 Color LED Indicators(Red and Green)

Beeper

Yes

Operating Temperature

-10° to +70°C

Operating Humidity

10% to 90% relative humidity non-condensing

Color

Black

Material

ABS+PC with texture

Dimension
(W x H x T)mm

86*86*16.3

Weight

120g

Index of Protection

IP65
