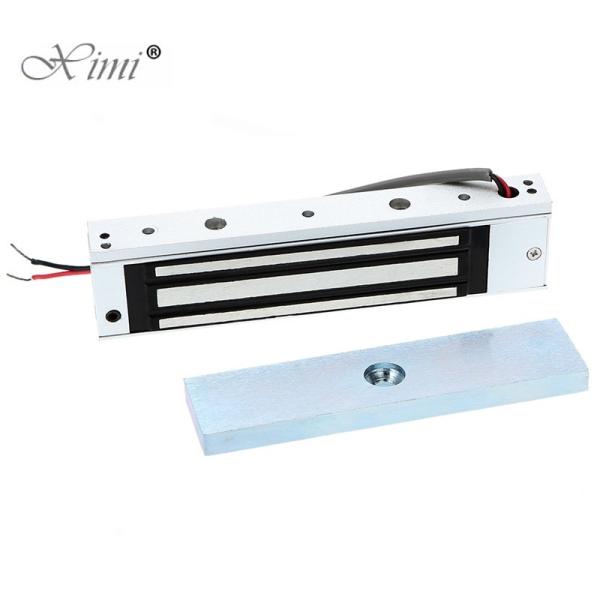

XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
XIMIIR
Model Number :
XM-M280
Size :
250Lx48Wx25H(mm)
Armature Plate Dimension :
180Lx38Wx12H(mm)
Holding Force :
280kg(600Lbs)
Input Voltage :
12 or 24VDC
Current :
12V/500mA or 24V/250mA
Suitable :
Wooden door , Glass door ,Metal door , Fireproof door
LED :
Red indicates the door is unlock,Green indicates the door is lock
Door status signal output :
NO,NC,COM
Cover Finish :
Anodized aluminum/Stainless Steel
Weight :
2KGS
Price :
Deliberation
MOQ :
1PC
Packaging Details :
1pc/box, 10pcs/carton
Delivery Time :
1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated
Payment Terms :
L/C D/A D/P T/T Western Union MoneyGram
Supply Ability :
1 - 100pcs-3days; 101 - 500pcs-7days; 501 - 1000pcs-15days; >1000 To be negotiated
Description
Product Description

Features:

1. Collinear Load Test 280kg,600pounds.

2. Dual Voltage 12 or 24 VDC(optional).
3. The Standard Voltage is 12VDC when Finished.
4. MOV Provides Reverse Current Protection.
5. Anti-Residual Magnetism Designed.
6. High Strength Material,Anodized Aluminum Housing.
7. Design without Mechanical Failure.
8. Increase the holding Force,Dual Insulative Housing.

Specifications:

Model NO.
XM-M280
Size
250Lx48Wx25H(mm)
Armature Plate Dimension
180Lx38Wx12H(mm)
Holding Force
280kg(600Lbs)
Input Voltage
12 or 24VDC
Current
12V/500mA or 24V/250mA
Suitable
Wooden door , Glass door ,Metal door , Fireproof door
LED
Red indicates the door is unlock,Green indicates the door is lock
Door status signal output
NO,NC,COM
Surface Temp
≤+20℃
Operating Temp
-10~+55℃(14-131F)
Humidity
0~90%(non-condensing)
Cover Finish
Anodized aluminum/Stainless Steel
Lock Finish
Zinc
Armature Plate Finish
Zinc
Weight
2KGS
Detailed Images
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
XIMI Cheap Price 280KG 600LBS Magnetic Lock WIth LED For Access Control System XM-M280
