5.25 Home Theatre Passive Speaker System R108-5T CE Certified / 20w Ceiling Speaker
5.25 Home Theatre Passive Speaker System R108-5T CE Certified / 20w Ceiling Speaker
5.25 Home Theatre Passive Speaker System R108-5T CE Certified / 20w Ceiling Speaker
5.25 Home Theatre Passive Speaker System R108-5T CE Certified / 20w Ceiling Speaker
5.25 Home Theatre Passive Speaker System R108-5T CE Certified / 20w Ceiling Speaker
5.25 Home Theatre Passive Speaker System R108-5T CE Certified / 20w Ceiling Speaker
Specifications
Brand Name :
DISCO
Model Number :
R108-5T
Certification :
CE RHOS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
discussible
Payment Terms :
T/T
Supply Ability :
50000PCS/Year
Packaging Details :
Paper Box, Giftbox
Speaker Material :
Plastic
Function :
100V
Woofer :
5.25-Inches
Adjusting Method :
Transforma
Color :
White
Transformer Tapping :
20W,10W,5W
OEM :
yes
Usage :
Portable Player, Home Theatre System, Radio, TV
Tweeter :
1-Inch Mylar
Description

5.25" Home Theatre Passive Speaker System R108-5T CE Certified

Product Description

CE Certified R108-5T 5.25" 100V Coaxial 20w Ceiling Speaker
Description

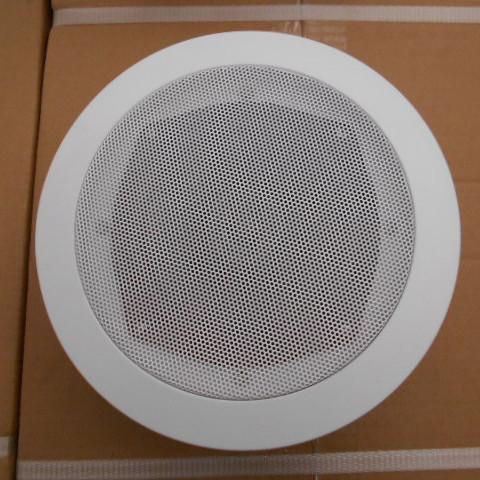

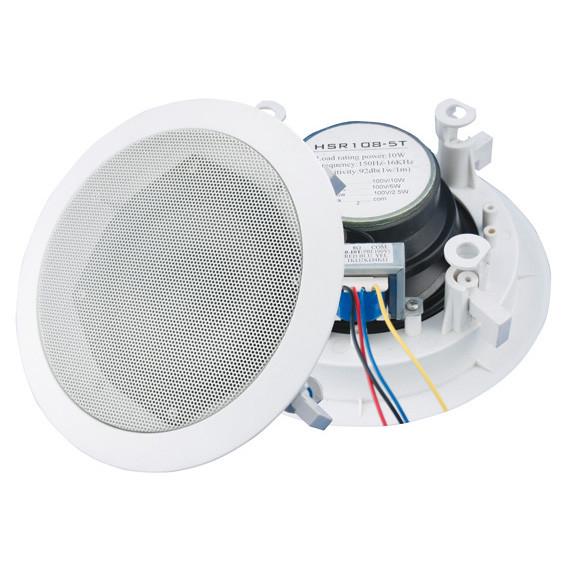

This speaker has the most modern and easy fitting method, a quick fastening clasp. It sets new standards in security and easiness. Three or four screws to mount or dismount and lifting off the grille (with a screwdriver) is all that is necessary.

The installation frame is made of high-quality plastic, the grille of coated steel. The construction is burgle proof and impact resistant.

Please consider the following features:
  • Modern, discreet design with a rim height of approx. 4 mm.
  • High-quality full range two-way coaxial speaker

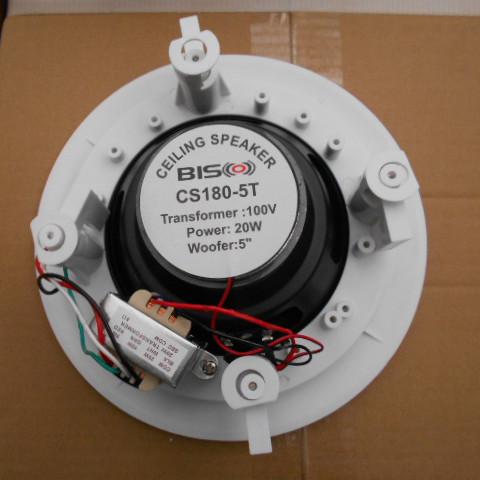

  • The speaker is available impregnated, with a specially prepared chassis and matching transformer.

1. 2-way coaxial speaker.

2. Easy installation using high speed snap fastener.
Specifications/Model Name R108-5T R108-6T R108-8T
Woofer 5.25-inches 6.5-inches 8-inches
Tweeter 1-inch mylar 1-inch mylar 1-inch mylar
Frequency Respone(Hz) 70-20K 50-20K 40-20K
SPL(dB@1W/M) 88 90 92
Power(W) 20 30 40
Input Method 100V 100V 100V
Transformer Tappings(W) 20 10 5 30 15 7.5 40 20 10
Install Diameter(mm) 166 202 240
Total Diameter(mm) 202 238 276
Install Depth(mm) 78 86 93
