Commercial / Home Audio Processor / Pro Audio Dynamic Speaker DSP-260
Commercial / Home Audio Processor / Pro Audio Dynamic Speaker DSP-260
Commercial / Home Audio Processor / Pro Audio Dynamic Speaker DSP-260
Commercial / Home Audio Processor / Pro Audio Dynamic Speaker DSP-260
Commercial / Home Audio Processor / Pro Audio Dynamic Speaker DSP-260
Commercial / Home Audio Processor / Pro Audio Dynamic Speaker DSP-260
Commercial / Home Audio Processor / Pro Audio Dynamic Speaker DSP-260
Commercial / Home Audio Processor / Pro Audio Dynamic Speaker DSP-260
Specifications
Brand Name :
DISCO
Model Number :
DSP-260
Certification :
CE RHOS
Place of Origin :
CHINA
MOQ :
50PCS
Price :
discussible
Payment Terms :
T/T
Supply Ability :
1000 PCS 40DAYS
Noise :
<95dB
Activity :
Passive
Operation Mode :
Button Control
Speaker System :
2.0 Channel
Speaker Material :
None Monitor: LCD Screen
Application :
Commercial, Home
Monitor :
LCD Screen
THD :
<0.005%
Transport Package :
Color Box
Specification Size :
1U
HS Code :
8543709990
Description
Commercial / Home Audio Processor / Pro Audio Dynamic Speaker DSP-260
Product Description:
PRO Audio Dynamic Speaker Audio Processor DSP-260

Features
Stereo Feedback Suppressor 2 × 12 group fast tracking notch filter
dual 28-band graphic equalizer
classic compressor
120A sub-harmonic synthesizer
2 × 3,2 × 4,2 × 5,2 × 6 crossover format available
stereo multi-band parametric equalizer
stereo output limiter
speaker trimming delay
pink noise generator
Auto-EQ automatic room equalization compensation
25 factory preset / 25 user setting program memory
2 input, 6-output
RTA-M real-time spectrum analyzer is located in the panel microphone inputs with phantom power
24-Bit A / D converter provides a dynamic range of greater than 110dB
Patent Type IVTMA / D converter circuit
LCD display

Technical Parameters
Analog Input: Enter Quantity (1 group) RTA microphone input
Line Input 2 groups
Type Electronically balanced / RF filtering, XLR female
Impedance > 40kΩ
Maximum input level +20 dBu
CMRR > 45dB
RTA microphone phantom power +15 VDC
RTA Microphone Equivalent Input Noise <-110dBu, 22Hz,-22kHz, 150Ω


Analog output:
outputs (6 groups) Line Output
Type Electronically balanced / RF filtering, XLR Male
Impedance 120Ω
Maximum Output Level +20 dBu
characteristics A / D
Category Type Iv Conversion
Dynamic range 110dB A-weighted, 107dB without weighted
Type IV dynamic range 123dB, with transient signals, A-weighted, 22kHz BW
121dB, with transient signal, no weighting, 22kHz BW
115dB, with the program signal, A-weighted, 22kHz BW
Sampling Frequency 48kHz
Dynamic range 112dB A-weighted, 110dB without weighting


System features:
Dynamic range > 110dB non-weighted,> 107dB A-weighted
THD + Noise 0.002%, +4 dBu, 1kHz, 0dB input gain
Frequency Response 20Hz-20kHz, ± 0.5dB
Channel Crosstalk <-110dB, 120dB general
Input to Output Crosstalk <-110dB
Delay Each output channel 10ms (of 60ms)

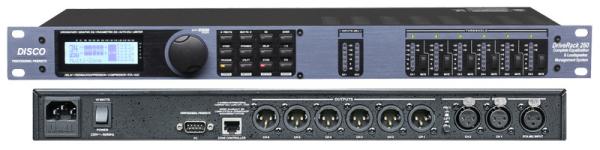

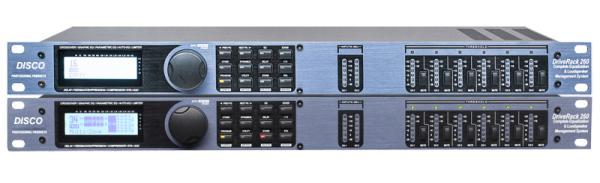

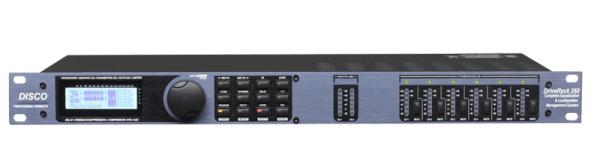

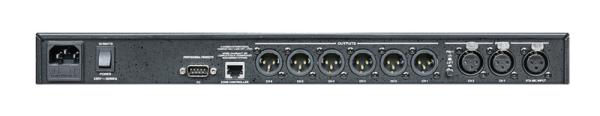

Detailed Pictures
Commercial / Home Audio Processor / Pro Audio Dynamic Speaker DSP-260
