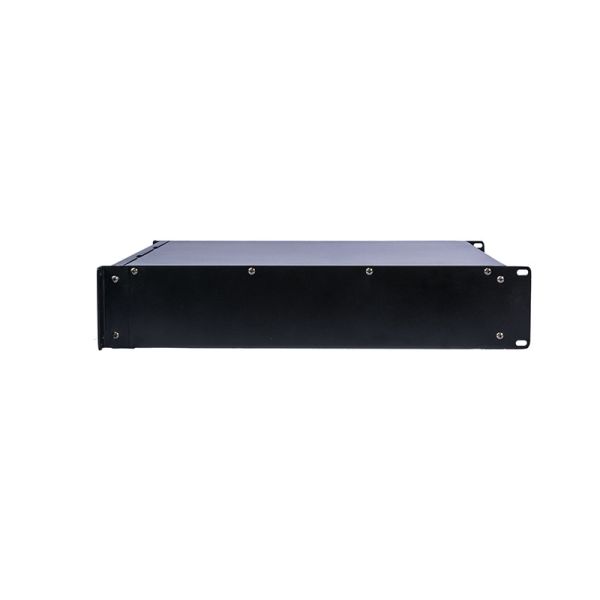

CA2 150 Watt High Power Amlifier With 8 pcs toshiba transistor 575*570*150MM
CA2 150 Watt High Power Amlifier With 8 pcs toshiba transistor 575*570*150MM
CA2 150 Watt High Power Amlifier With 8 pcs toshiba transistor 575*570*150MM
CA2 150 Watt High Power Amlifier With 8 pcs toshiba transistor 575*570*150MM
CA2 150 Watt High Power Amlifier With 8 pcs toshiba transistor 575*570*150MM
CA2 150 Watt High Power Amlifier With 8 pcs toshiba transistor 575*570*150MM
CA2 150 Watt High Power Amlifier With 8 pcs toshiba transistor 575*570*150MM
CA2 150 Watt High Power Amlifier With 8 pcs toshiba transistor 575*570*150MM
Specifications
Brand Name :
DISCO
Model Number :
CA2
Certification :
CE RHOS UL
Place of Origin :
CHINA
MOQ :
50PCS
Price :
discussible
Payment Terms :
T/T
Supply Ability :
1000 Set/Sets per Month
Packaging Details :
Carton and foam packaging togetherSpecifications
hight :
2U
8ohm stereo power :
150w
Channal :
2
operating mode :
bridge,parallel,stereo
transistor :
Toshiba
certificatio :
CE RHOS
weight :
18kg
Dimensions(W×H×D) :
575*570*150MM
Description

CA2 150 Watt High Power Amlifier With 8 pcs toshiba transistor 575*570*150MM

Specifications

full power,higher reliablity,higher level of protect function ,higher damping factor,support OEM/ODM

The CA series power amplifiers feature an incredibly efficient design with high power and atable performance.the CA series amplifiers are designed with an advanced,class H design with a transformer power supply while increasing reliabliity.The series use a powerful high-current toroidal transformer and ample filter capacitance to ensure generous energy reserves.This makes a critical difference in sound quality,allowing the amp to effortlessly punch out high level transients and superior capacity.

Specifications:

Model

CA2

8ΩStereo power

150W*2

4ΩStereo power

225W*2

2ΩStereo power

300W*2

8ΩBridge power

450W

4ΩBridge power

540W

Frequency Response

20Hz-20KHz±0.3dB

THD+N(20Hz-20KHz)

<0.03%@8ohm 1KHz

S/N Ratio

>90dB

Damping Factor

>400

Input Impedance

20K ohm(Balance)/10K ohm(Unbalance)

Output Circuitry

Class h

Input Sensitivity

0.775V/1V/1.4V

Protect

Overheat short circuits,DC limit and softstart, Output relay--Zero Current Switch, Intellctual Clip limiter.

Height

2U

G WEIGHT (KG)

18

Dimensions(W×H×D) mm

575*570*150MM

CA2 150 Watt High Power Amlifier With 8 pcs toshiba transistor 575*570*150MM

FAQ

Q. Can you use our company logo and package type?

A:Yes,We are manufacture ,We provided this service.

Q: I like the design but want to change a little part, is it possible?

A: Yes ,we will try to do it.

Q: I like the product/speaker but i want my own design, is it possible?

A: Yes, we specialize in customized designs for our customers, and welcome your good suggestions.

Q: I want samples with my own logo, is it possible?

A: Yes it is possible. A small charge may apply depending on requirements.

Q: What's your MOQ (Minimum order quantity)?

A: There is no MOQ limited ,you can choose to order 1pc or 1000000pcs.No limit about quality.

Q: Except product value and shipping cost, do I need to pay any other fees in China?

A: No other fees needed in China.

Q. How can I make the payment, what's your payment terms?

A: You can pay by TT,Western Union,or Paypal.


Q. How long is your guarantee period of products?
A: 3 year warrenty, if any problems during this period, we will sent you free replacements to repair, anyway we will find the best solution for you!
