Hdmi Video Wall Processor , LCD/LED Hdmi Splitter Video Wall Ultra - High Bandwidth
Hdmi Video Wall Processor , LCD/LED Hdmi Splitter Video Wall Ultra - High Bandwidth
Specifications
Brand Name :
VISSONIC
Model Number :
X9 series
Certification :
CE/ISO901/ROHS/CCC
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100PCS
Delivery Time :
15 Work days
Packaging Details :
CARTON
Interface bandwidth :
6.75Gbps
Serial control interface :
RS-232，9 pin female D type interface and 9 pin male D type interface
Baud rate and protocol :
Baud rate: 9600, data bits: 8 bits, stop bits: 1 bit, no parity check bit
Keyboard control interface :
Four-way 3.8mm phoenix interface
Operation method :
To use with extended keyboard MCP100
System power :
100VAC ~ 240VAC，50/60 Hz, International adaptive power
Description
X9 series

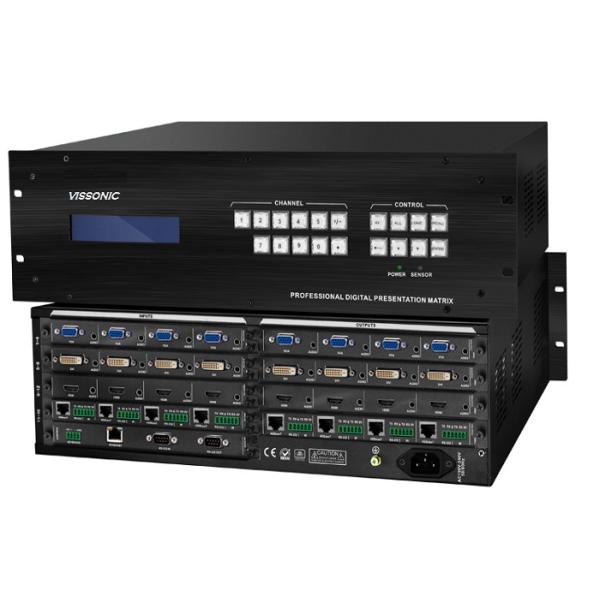

X9 Series Ultra-High Bandwidth LCD/LED Videowall Processor support Multi-Window
X9 series Modular video wall processor can realize graphics processing and seamless switching flexibly. The matrix adopts high-performance hardware design, perfectly supports a variety of high-definition digital / analog signal switching and processing, and supports two-way RS-232, two-way IR signal assigned switching function. It can also divide a completed image signal into several signals assigned to several different display unites, forming a large display screen to display dynamic images. It provides a one-stop solution for various industries to assign, switch and process a variety of video and control signals, which can be widely used in radio and television engineering, multimedia conference room, large-screen display engineering, television teaching, intelligent traffic management centers, command and control centers and other places.

X9 series Modular video wall processor contains 0808,1616,3636,7272 and other models, its signal input/output interface contains HDMI, DVI, VGA, HDBaseT, SDI, optical fiber and other video interfaces. Leading all-digital signal processing technology ensures undistorted processing, sending top quality screen to the display terminal. With customized configuration of various types of the same or different input/output boards, single interface type or multi interface type of matrix can be formed, such as optical fiber matrix, HDMI matrix, DVI matrix, CAT5 matrix, VGA matrix, YUV matrix, Video matrix and so on.

X9 series Modular video wall processor provides a variety of control modes, with remote control operation, RS-485 extended keyboard, but also provides two standard RS-232 communication interfaces and network ports, convenient for users to coordinate it with various remote control devices.

Main Features

● Seamless switching 16 x 16 matrix / router(maximum up to 72x72 with bigger cabinet)
● Support Up to 16 displays splicing and processing
● Display up to 32 layers
● OSD text overlay feature for subtitling and messaging
● Rich of modules for input and output
● Redundant hot swap power supply option
● Smart temperature control
● Videowall Configuration Software is available.
● Support LCD/LED video wall
