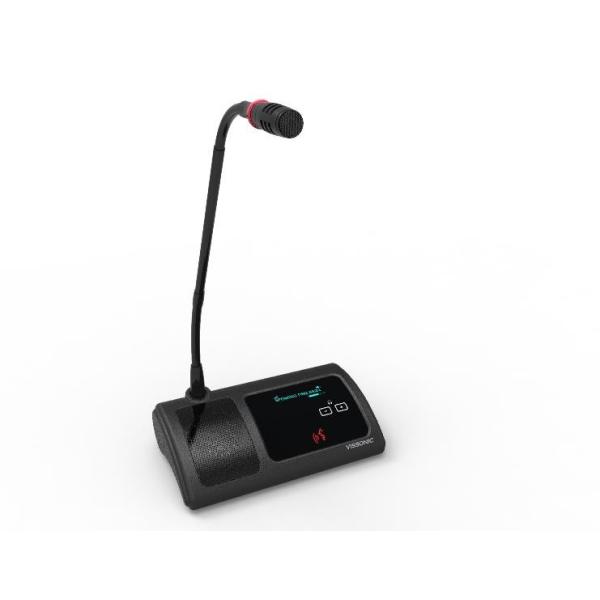

Wireless Digital Discussion Conference Microphone Delegate Unit

New Generation Full Digital Wi-Fi Wireless Conference System, Instantly Setup, leave more time for inspiring minds

CLEACON Digital Conference system

● VISSONIC CLEACON, make wireless come true
The major pain point on traditional meeting room is to connect all
devices by cable, which is complex and wasting of time. VISSONIC
Wireless conference system, start the meeting in anytime, anywhere,
increase the efficiency on planning.
● Standard Wi-Fi technology to co-work perfectly with existing networks

CLEACON wireless unit, choose the frequency point from dozens of
available ones on our access point, working in zero interference with
all other networks in the area.
● Elegant arc-shaped surface design
Arc-shaped glass operation area is dust/water-proof, and there is no
noise/damage risk compare with common physical buttons, anti-scratch
cover technology, it remains smooth glass surface even after thousands
times of touch

Functions

1. Compliance with IEC 60914,GBT 15381-94
2. Standard Wi-Fi technology is compatible with other Wi-Fi networks, support 2.4GHz and 5GHz on all channels.
3. All-digital transmission and processing technology in uncompressed audio, professional microphone to achieve perfect sound quality at 20Hz ~ 20KHz;
4. 128 bits digital encryption technology, with WAP2 secure connection, MAC address filtering, SSID-hiding to prevent wiretapping and unauthorized access from delegate unit
5. 8 units of delegates can open at the same time
6. Support more AP working together to increasing the Wi-Fi coverage range for wireless MIC units working in a large conference room or multi-rooms
7. With our HD PTZ camera and video matrix switcher, using RS485 or RS232 protocol to send the PELCO/VISCA protocol to realize camera auto-tracking function
8. Precise directional microphone head with anti-wind microphone foam cover, with two-color LED indicator
9. Button for MIC ON/OFF, Priority & Apply Answer button for chairman unit
10. Built-in high fidelity speakers, it automatically mutes to prevent howling when press MIC ON
11. Head-set interface in both sides with volume adjustment.
12. Support AGC(Automatic Gain Control)/AFC(Adaptive Feedback Cancellation)/ANC(Active Noise Control )/Mix (Auto-Mix) technology
13. Build-in functions for intercom
14. Without using PC software, our conference controller still owns following settings:
15. Limit on the number of speaking persons: By Setting the number of active units at the same time(Number is 1/2/4/6/ units)

Discussion modes:

"OPEN" Free for all, limited by the active units setting by controller, "OVERRIDE" First in First out,"FREE" Turn on the MIC freely up the max. quantity, "APPLY" To apply then to speak
The unit showing real time on the screen, and count-down timer for speaking person.
Detachable battery pack is easy to replace and charge,power-saving technology to enable 20 hours continuous use and 48 hours for standby.
