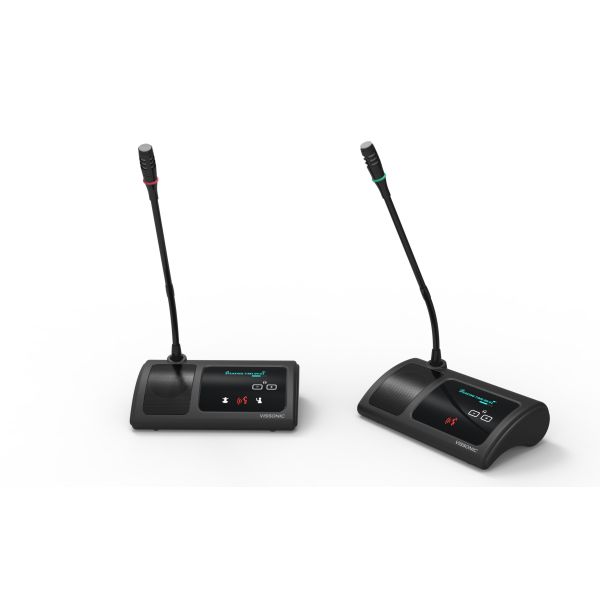

New Generation Full Digital Wi-Fi Wireless Conference System, Instantly Setup, leave more time for inspiring minds

VISSONIC CLEACON, make wireless come true

The major pain point on traditional meeting room is to connect all devices by cable, which is complex and wasting of time. VISSONIC Wireless conference system, start the meeting in anytime, anywhere,increase the efficiency on planning.

Standard Wi-Fi technology to co-work perfectly with existing networks CLEACON wireless unit, choose the frequency point from dozens of available ones on our access point, working in zero interference with all other networks in the area.

Elegant arc-shaped surface design,Arc-shaped glass operation area is dust/water-proof, and there is no noise/damage risk compare with common physical buttons, anti-scratch cover technology, it remains smooth glass surface even after thousands times of touch

Features

1.Stylish, low profile design with touchable interface

2.5G Standard WiFi Wireless communication, with less delay and high quality sound while no interference from 2.4G signal, setting up all system in few minutes to be ready for using, and put them away in short time as well

2.Built-in DC connector for power supply without battery

3.Detachable battery pack is easy to replace and charge, 20 hours continuous working time after full charge.

4.Internal high fidelity loudspeaker

5.Head-set interface in both sides with volume adjust

6.Line-in interface which allows microphone or other line-in device like cell phone, laptop to pass audio through to perform teleconference

7.Full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices.

8.Support pluggable microphone and different length of microphone with strong audio collecting ability.

9.Timer on display to set certain time for each delegate to speak, will remind user or close the MIC automatically

10.All units can be configured as Chairman or Delegate unit through software settings based on model WDC-T

Technical Parameters

Button: Touchable interface, no physical buttons

Sound Pickup: heart type capacitance

Display: OLED display 128 × 32

Sensitivity: -46 dBV / Pa

Maximum power consumption: 2.0W

Directivity: 0 ° / 180 °> 20 dB (1 kHz)

Headphone load: 16Ω

Headphone volume: 10mW

Headphone jack: 3.5mm stereo

Input impedance: 2kΩ

SNR: 70dB

Frequency response: 20 ~ 20000Hz

Equivalent noise: 20dBA (SPL)

Main material: ABS

Operating temperature: 0 ºC to + 55 ºC

Color: Black

The maximum sound pressure: 125dB (THD <3%)

Weight: 1.1kg (with microphone)

Dimension: 185 × 130 × 50mm (width ×depth ×height) (without microphone)
