008A Digital Wireless Audio Tour Guide System For Group Travel
008A Digital Wireless Audio Tour Guide System For Group Travel
008A Digital Wireless Audio Tour Guide System For Group Travel
008A Digital Wireless Audio Tour Guide System For Group Travel
008A Digital Wireless Audio Tour Guide System For Group Travel
008A Digital Wireless Audio Tour Guide System For Group Travel
008A Digital Wireless Audio Tour Guide System For Group Travel
008A Digital Wireless Audio Tour Guide System For Group Travel
008A Digital Wireless Audio Tour Guide System For Group Travel
008A Digital Wireless Audio Tour Guide System For Group Travel
Specifications
Brand Name :
Yingmi
Model Number :
008A
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C,Paypal
Delivery Time :
7days
Packaging Details :
packed in carton box
Price :
negotiation
Product :
travel tour guide
Color :
Black
Componet :
Transmitter&Receiver
Power :
Lithium Battery
Feature :
High quality sound
Application :
Travel /Scenic spot
Description

working 12hours! 008A wireless tour guide system for museum/ exhibition

TuMan 8 series device,apply to: wireless team interpretation,simultaneous interpretation,etc.; Mainly used for manned interpreatation: can manual use,also can play pre-recorded audio,that need human to control. We have many models for your choice!
What's this| HumanTek.cn
All Rights.
TuMan 008A tour guide system is detrusion by HUMANTEK CO.,LTD,The system adopts the international advanced wireless amplification technology,to realize the function of intelligent voice explain.The system related equipment light fashionable appearance,convenient to carry.
Can be for the government officials and VIP customer visits,conferences. more suitable for large companies,museums,theme parks,scenic spots and historical sites,such as a tour by boat tour guide use;

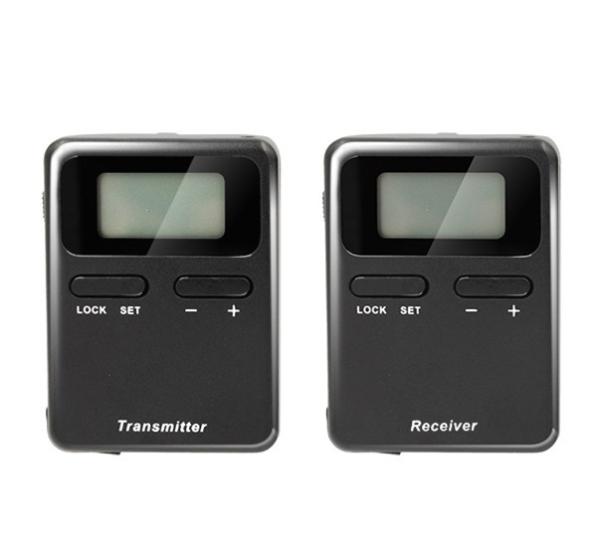

The dvice contains Transmitter and Receiver;		 008A Digital Wireless Audio Tour Guide System For Group Travel

TuMan 008A product feature:

1. Many channels:dual channel 158 channels;

2. Far transmission distance:open field >= 200m;

3. The through wall effect is good:through concrete wall, brick wall penetration effect;

4. The transmission effect to international level,the leading domestic:Using core technology sound processing, perennial export Europe and the United States and other countries!

 008A Digital Wireless Audio Tour Guide System For Group Travel
Appearance can specify the color, printing logo;
or redesign shell.(Larger quantities)
How to use|

Using graphic:

008A Digital Wireless Audio Tour Guide System For Group Travel

Accessories:

008A Digital Wireless Audio Tour Guide System For Group Travel
Headphone(EP01)


008A Digital Wireless Audio Tour Guide System For Group Travel
Micphone(Mic01)


008A Digital Wireless Audio Tour Guide System For Group Travel
Micphone(Mic02)

Parameters:

Name
Value
Working frequency:
70.25-76.3MHz,794-806MHz,
863-865MHz,902-915MHz,2.4GHz etc.,
Broadband, the sound quality is better;
Channel quantity:
158(high frequency 100+Low frequency 58),
80,64,50 etc.,Different frequency different channel quantities;
Channel spacing:
120KHz,200KHz,350KHz etc;
Transmitter power:
10dBm,20dBm,30dBm etc;
Receiving sensitivity:
-110dBm(typical);
Working voltage:
3.0-5.0VDC,recycle polymer lithium battery;
Input:
Output:
Input(Transmitter):3.5mm microphone;
Output(receiver):3.5mm headphone
Oscillator:
PLL;
Second harmonic trap:
>40dbc;
Frequency response:
20Hz-18KHz;
Signal to Noise Ratio:
80dB(typical);
Image reject:
>80dB;
Mirror harmonic:
>75dB;
Separation factor:
70dB(typical);
Frequency offset:
<3k;
Distortion factor:
<1%;
Oscillation frequency:
+/-2ppm;
Working current:
Transmitter:≤30~80mA;
Receiver:≤50mA;
Working distance:
>=250m;
Working temperature:
-20℃—+70℃;
Dimensions:
Length65mm×Width50mm×Height17mm;
Weight:
50g(battery included);

008A Digital Wireless Audio Tour Guide System For Group Travel

Charger 1 for 10(Model:UCG01)



008A Digital Wireless Audio Tour Guide System For Group Travel
Headphone(EP02)



008A Digital Wireless Audio Tour Guide System For Group Travel
Headphone(EP03)

008A Digital Wireless Audio Tour Guide System For Group Travel
Charing box 1 for 30(Model:6BoxC01)



Technical production line

008A Digital Wireless Audio Tour Guide System For Group Travel

Packaging & Shipping


008A Digital Wireless Audio Tour Guide System For Group Travel

Sucessful Case

008A Digital Wireless Audio Tour Guide System For Group Travel

Product atlas

008A Digital Wireless Audio Tour Guide System For Group Travel
