008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception
Specifications
Brand Name :
Yingmi
Model Number :
008B
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
L/C,Paypal
Supply Ability :
2000 pieces per week
Delivery Time :
7days
Packaging Details :
packed in carton box
Price :
negotiation
Product :
Tour guide device
Color :
Black
Componet :
Transmitter&Receiver
Power :
Lithium battery
Feature :
Two Way
Application :
Teaching / Traning
Description

800Mhz 008B bi-directional wireless tour guide system for tourist reception

TuMan 8 series device,apply to: wireless team interpretation,simultaneous interpretation,etc.; Mainly used for manned interpreatation: can manual use,also can play pre-recorded audio,that need human to control. We have many models for your choice!
What's this|
TuMan 008B tour guide system is detrusion by HUMANTEK CO.,LTD,The system adopts the international advanced wireless amplification technology,Use The Wireless Bi-directional tour guide system,the narrator and the audience can interact eachother,can be realized within the team can ask one answer,everyone can hear,the function to fill a gap in the industry!

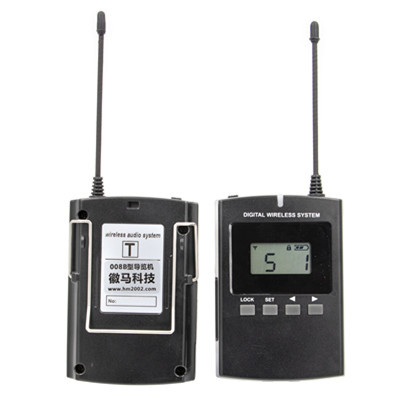

The dvice contains Transmitter and Receiver;		 008B Model Two Way Communication Tour Guide System For Tourist Reception

TuMan 008B product feature:

1. Unique two-way radio: avoid one-way explain the poor interaction;

2. Far transmission distance:open field >= 280 m;

3. The through wall effect is good: through concrete wall,brick wall penetration effect;

4. The transmission effect to international level,the leading domestic:Using core technology sound processing,perennial export Europe and the United States and other countries!

 008B Model Two Way Communication Tour Guide System For Tourist Reception
Appearance can specify the color, printing logo;
or redesign shell.(Larger quantities)
How to use|

Using graphic:

008B Model Two Way Communication Tour Guide System For Tourist Reception

Accessories:

008B Model Two Way Communication Tour Guide System For Tourist Reception
Headphone(EP01)


008B Model Two Way Communication Tour Guide System For Tourist Reception
Micphone(Mic01)


008B Model Two Way Communication Tour Guide System For Tourist Reception
Micphone(Mic02)

Parameters:

Name
Value
Working frequency:
796.0-821.0MHz,Broadband,the sound quality is better;
Channel quantity:
23;Two-way intercom;
Channel spacing:
250KHz;
Transmitter power:
15dBm;
Receiving sensitivity:
-110dBm(typical);
Working voltage:
3.0-5.0VDC,recycle polymer lithium battery;
Input:
Output:
Input(Transmitter):3.5mm microphone;
Output(receiver):3.5mm headphone
Oscillator:
PLL;
Second harmonic trap:
>40dbc;
Frequency response:
20Hz-16KHz;
Signal to Noise Ratio:
80dB(typical);
Image reject:
>80dB;
Mirror harmonic:
>75dB;
Separation factor:
70dB(typical);
Frequency offset:
<3k;
Distortion factor:
<1%;
Oscillation frequency:
+/-2ppm;
Working current:
Transmitter:≤80mA;
Receiver:≤50mA;
Working distance:
>=250m;
Working temperature:
-20℃—+70℃;
Dimensions:
Length86mm×Width60mm×Height19mm;
Weight:
Transmitter:110g(include battery);
Receiver:95g(include battery);

008B Model Two Way Communication Tour Guide System For Tourist Reception

Charger 1 for 10(Model:UCG01)



008B Model Two Way Communication Tour Guide System For Tourist Reception
Headphone(EP02)



008B Model Two Way Communication Tour Guide System For Tourist Reception
Headphone(EP03)

008B Model Two Way Communication Tour Guide System For Tourist Reception
Charing box 1 for 30(Model:6BoxC01)



Technical production line

008B Model Two Way Communication Tour Guide System For Tourist Reception


Packaging & Shipping


008B Model Two Way Communication Tour Guide System For Tourist Reception

Sucessful Case

008B Model Two Way Communication Tour Guide System For Tourist Reception

Product atlas

008B Model Two Way Communication Tour Guide System For Tourist Reception
