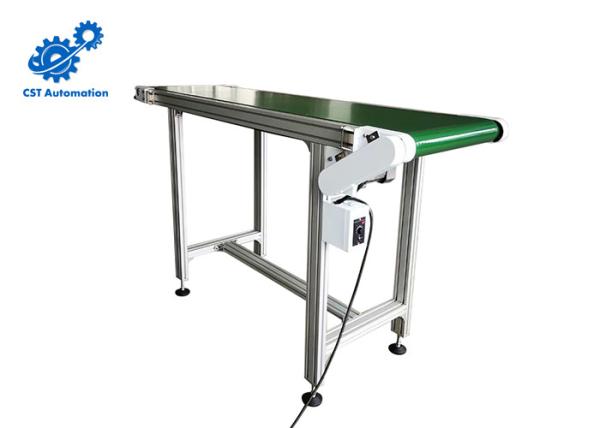

Aluminium Profile PVC Belt Conveyor With Automated Conveyor System
Aluminium Profile PVC Belt Conveyor With Automated Conveyor System
Aluminium Profile PVC Belt Conveyor With Automated Conveyor System
Aluminium Profile PVC Belt Conveyor With Automated Conveyor System
Specifications
Brand Name :
CST
Model Number :
CST-PB07
Place of Origin :
SUZHOU,CHINA
MOQ :
1piece
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
20pcs per month
Delivery Time :
15 working days
Packaging Details :
wooden case for PVC belt conveyor
Material :
Aluminium profile 40*40
Belt :
PVC green 2mm thickness
Motor :
0.45kw with Chinese famous brand
Inverter :
Chinese brand
Speed :
1-5m/min adjustable
Voltage :
220V/380V 50/60HZ 1ph/3ph
Description

Aluminium Profile PVC Belt Conveyor With Automated Conveyor System

1. Descriptions

Aluminium profile PVC Belt Conveyor for automated conveyor system is used for industry and mechine industry.

it's high efficient and save cost .

we also provide the curve conveyor to connect the straight conveyor.

The belt conveyor belt is made of rubber, silica gel, PVC, PU and other materials.

In addition to the transportation of common materials.

it can also meet the special requirements of oil, corrosion, anti-static and other materials.

The use of special food grade conveyor belts can meet the requirements of food, pharmaceutical, and daily chemical industries.

2. Conveyor information:
1. what kind products to conveyor ? Suitable for industry products Provide customized service
2. Frame material: Stainless teel304 Provide customized service
3. belt material: PVC Provide customized service
4. dimension(L*W*H) L1500*W600*H900mm Provide customized service
5. speed 1m-5m/min adjustable Provide customized service
6. Voltage: 220V/380V 50hz 3ph Customers’provide
7. Motor Power: 0.45kw According speed
8. Motor brand: Chinese famous brand Option SEW,Nord,etc
9. Inverter: Chinese famous brand Option Siemension,etc
10. loading weigth 20kg/m³ Option as material
11. Package : Wooden case In general forpvc belt Conveyor
12. Shipping way: By sea or by air Customers’provide

3. Pictures for Inclined Pu belt conveyor with Automated Conveyor System :

Aluminium Profile PVC Belt Conveyor With Automated Conveyor System

Pls kindly provide below information:

1. what kind product need to transfer ? product' weight,and dimension
2. what's the dimension ? Length*width*height
3. what's the speed ? 1-5m/min adjustable
4. waht is the voltage? 220V/380V 50/60HZ 1Ph/3ph
5. other demands customized service

4. Advantages & Factory

1. Provide the customized service

2. Provide the favourate price.

3. Provide the production draft before producing.

4. Experienced 8engineers with more than 15years working time.

5. With the latest drawing tools –Soildworks CAD

6. Provide the installation instruction with video,pictures etc.

7. Provide the after sales serivce

8. With 1year warranty after exporting.

9. Experienced in exporting to USA,Canada,Germany,England,Indonesia,etc

Aluminium Profile PVC Belt Conveyor With Automated Conveyor System
