Specifications
Brand Name :
BIG AUTO
Model Number :
BG X7
Certification :
CCC
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T, L/C
Supply Ability :
5000units per year
Delivery Time :
45-60 Working days
Packaging Details :
Using Carton, fumigated wood pallet and steel pallet
Product Name :
BG X7
Length(mm) :
4736
Width(mm) :
1968
Height(mm) :
1708
Wheelbase(mm) :
2820
Front Wheelbase(mm) :
1652
Rear Wheelbase(mm) :
1652
Approach Angle(°) :
18
Departure Angle(°) :
22
Minimum Turning Radius(m) :
5.9
Description

Assembly Support Plug-in Hybrid SUV BG X7 Pure Electric Range 150 Km With Big Capacity

BG X7 Introduction:

BG X7 is a plug-in hybrid SUV, which combines Chery's flagship chassis technology, BYD and FDD powertrains, as well as Ningde Times batteries and other excellent technological resources in the industry, to achieve a comprehensive improvement in range, space, power and other aspects.

BG X7 Parameters

Technical Specifications
DRIVE MOTOR DESCRIPTION
Energy Type Plug-in hybrid
Displacement (L) 1.5
Intake form Turbocharged
Engine Layout Place horizontally
Cylinders(pcs) 4
Number of valves per cylinder (pcs) 4
Distribution Mechanism DOHC
Maximum horsepower (Ps) 139
Maximum power (kW) 102
Maximum power speed(rpm) 5200
Maximum torque(N·m) 231
Maximum torque(rpm) 2000-4000
Fuel Standard #92
Environmental standard China Ⅵ
Motor Type Permanent Magnet Synchronization

ELECTRIC MOTOR

DESCRIPTION
Number of Driving Motors Single Motor
Motor Layout Front
Maximum Power(kW) 150
Maximum Torque(N.m) 300
Maximum speed(Km/h) 180
BATTERY PACK DESCRIPTION
Battery Type Lithium iron phosphate battery
Rated Power(kW.h) 22.48
CLTC(km) 150
Fast Charging Time (h) 0.5h for fast charging
Battery Fast Charge Range(%) 80
EXTERIOR DESCRIPTION
Length*Width*Height(mm) 4736*1968*1708
Wheelbase(mm) 2820
Wheel Track Front(mm) 1652
Wheel Track Rear(mm) 1652
Approach angle 18
Departure angle 22
CHASSIS DESCRIPTION
Front Suspension Mcpherson independent suspension
Rear Suspension Multi-link independent suspension
Front Brakes Ventilated Disc Brake
Rear Brakes Disc Brake
Parking Brake Electric Parking
ABS/EBD Standard
Drive Type FF
Transmission Type E-CVT
Steering Form Electric Power Steering (EPS)
Tire Size 255/ 50 R20
BODY DESCRIPTION
Body Structure Five-door, Five/Seven-seat SUV
Seat Belt Type Three-Poin
Air Conditioning

Automatic air conditioning

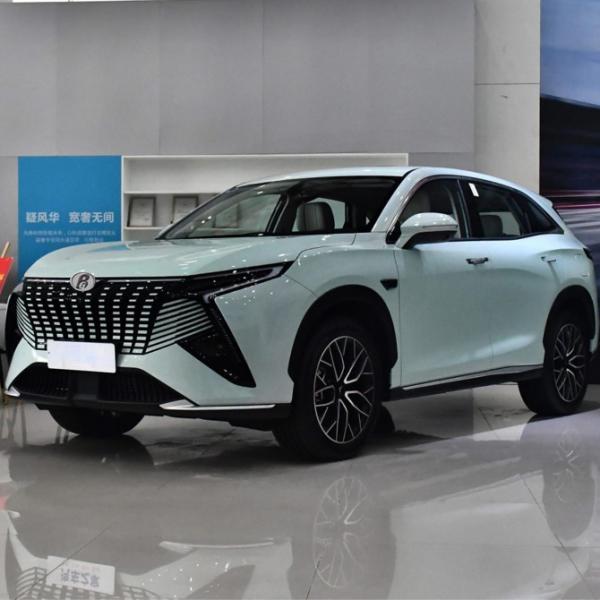

Detailed Pictures

Assembly Support Plug-in Hybrid SUV BG X7 Pure Electric Range 150 Km With Big CapacityAssembly Support Plug-in Hybrid SUV BG X7 Pure Electric Range 150 Km With Big Capacity
