Backcheck Commercial Hydraulic Door Closer D3036 Eurospec Opening Angle 180 Degree
Backcheck Commercial Hydraulic Door Closer D3036 Eurospec Opening Angle 180 Degree
Backcheck Commercial Hydraulic Door Closer D3036 Eurospec Opening Angle 180 Degree
Backcheck Commercial Hydraulic Door Closer D3036 Eurospec Opening Angle 180 Degree
Specifications
Brand Name :
Dorrenhaus, Dorhaus
Model Number :
D3036
Certification :
ISO9001:2015
Place of Origin :
Zhejiang, China
MOQ :
100pcs
Price :
USD24.00 - USD26.00 per pc
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5,000pcs per month
Delivery Time :
around 30 days
Packaging Details :
1pc in 1 paper box, 6pcs in carton of 385*330*142mm, 54ctns in 1 wooden pallet size: 116*92cm
Key Words :
Commercial Hydraulic Door Closer
Working Temp. :
- 40℃ to 45℃
Width Range :
950-1500mm
Optional Features :
DA, Hold Open
Weight Limit :
150kgs
Size Adjusting :
#3-6
Open Angle :
180degree
Guarantee Period :
3years
Description

Backcheck Commercial Hydraulic Door Closer Eurospec Opening Angle 180 Degree

  • EN1154 certification pending, life cycles 300,000 +
  • Dorrenhaus - CE Marked | Exporting since 2011
  • Exquisite Craft: even operation, oil tight, noiseless


Ω Eurospec commercial hydraulic door closer D3036 for heavy door

Ω Adjustable backcheck, hold open arm and delayed aciton optional

Ω Bigger closer shell with larger size metal spring for powerful closing force

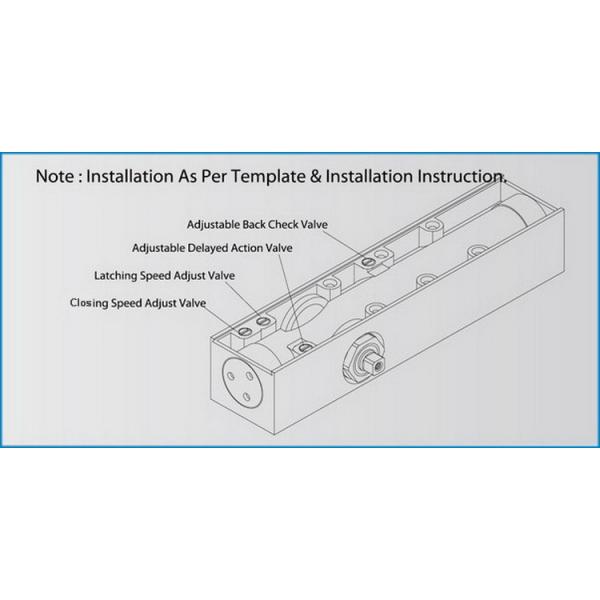

Ω Closing & latching speed adjustable by two separate regulating screws

Ω Precised casting aluminum closer body with reinforced steel rocking arm

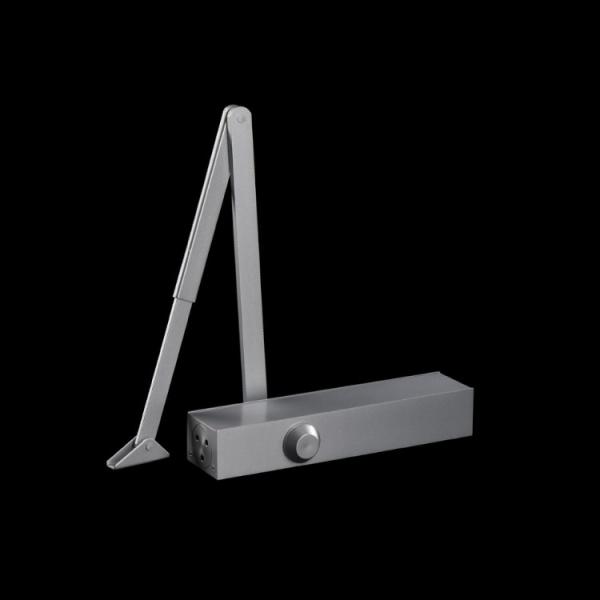

Ω Non-hand installation, suitable for regular and parallel arm mounting

Ω Maximum opening angle 180 degree, normally from 90 to 120 degree

Ω Adjusting closing force #3-6 regulated by independent adjusting shaft

Ω Pending certification of BS EN1634, fire rated testing up to 2 hours

Ω High quality Fuchs lubricating oil especially for all weather operation

► Reliable cooperative vendors of global famous door control trade mark

Closer Color - Silver, Bronze, Gold, White, Brown, Black

* GENTLE, NO NEED TO CLOSE MANUALLY: let the door do the work, enjoy automatic

shutdown and lock, maintaining quiet and safety.

* SPRING THRUST, EASY BACK: the commercial-grade arm will not impact opening, and

close the door slow enough to allow for elegant entry and exit
* ADJUSTING ACCORDING TO YOUR REQUEST: Let customers go their own pace, which

size should be used for different closing force: from size 3 to size 6.

Type No.

Max. Door

Width

Applicable

Weight

Body Spec.

(LxWxH)

Installation

Dimension

D3036

 1500 mm 40-150 kg 265*61*46 mm 50*50*45 mm

Spring

Power

Fire Rated

Standard

Assurance

Period

Factory Tested

Life Cycles

Manufacturing

Standard#
#3 - 6 EN1634 36 months 300,000+

CE EN1154


Backcheck Commercial Hydraulic Door Closer D3036 Eurospec Opening Angle 180 DegreeBackcheck Commercial Hydraulic Door Closer D3036 Eurospec Opening Angle 180 Degree

Backcheck Commercial Hydraulic Door Closer D3036 Eurospec Opening Angle 180 Degree

Backcheck Commercial Hydraulic Door Closer D3036 Eurospec Opening Angle 180 Degree
