Specifications
Brand Name :
Dorrenhaus, DORHAUS
Model Number :
D303, D304
Certification :
CCC, ISO9001:2015
Place of Origin :
Zhejiang, China
MOQ :
100 sets
Price :
USD7.00-USD7.50/set
Payment Terms :
D/P, L/C, , T/T, Western Union, MoneyGram
Supply Ability :
20,000sets per month
Delivery Time :
5 weeks

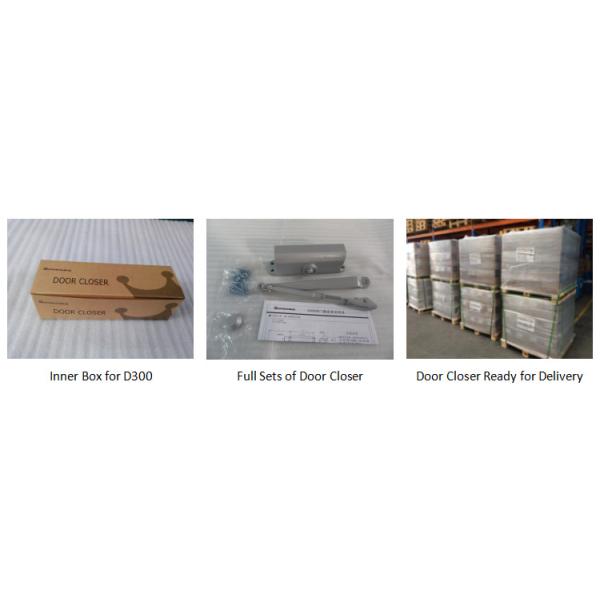

Packaging Details :
1set in 1 paper box, 20sets in carton of 416*270*325mm, 24ctns in 1 wooden pallet size: 110*85cm
Primary Keyword :
Overhead Hydraulic Door Closer
Function Alternate :
Hold-open
Working Temp. :
-40℃ to 45 ℃
Applicable Weight :
40-85kg
Max. Door Width :
950mm, 1100mm
Assurance Period :
2 years
Spring Strength :
size three and four
Max. Open Angle :
105º
Description

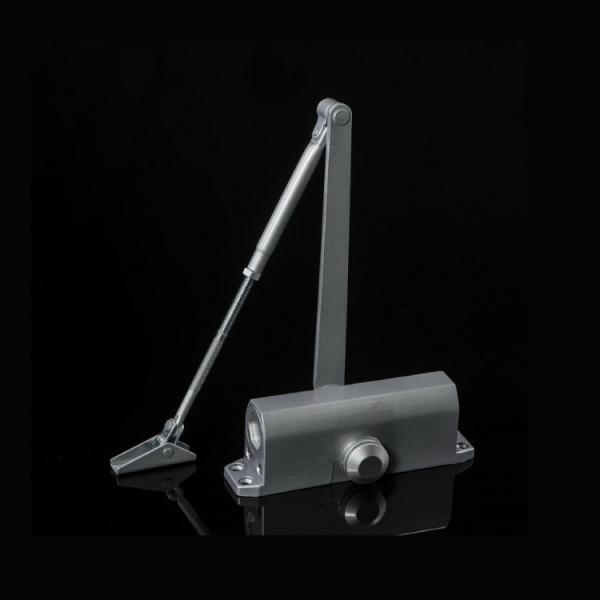

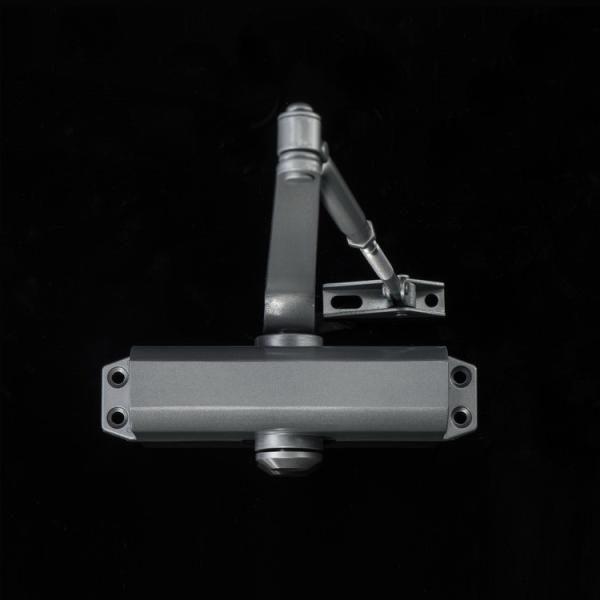

Exterior Overhead Hydraulic Door Closer Size 4 / 3 Top Jamb Mounted Outward Opening

  • Traditional style, domestic market leader model
  • Dorhaus - Focus on manufacturing door closers
  • Smooth operation, oil tight, no abnormal sound

Dorhaus overhead door closers D300 are the most common model, it's widely used

throughout residential properties. For example, exterior doors in offices, conference

doors, they are typically affixed with a door closer that automatically closes the door.

Ω Light duty exterior overhead hydraulic door closer mainly for residential door

Ω Power bearing, rack and pinion contained in precision cast aluminum body

Ω Certificate of China Compulsory Product Certification for Fire Rated Door Closer

Issued by China Certification Center for Fire Products Ministry of Public Security

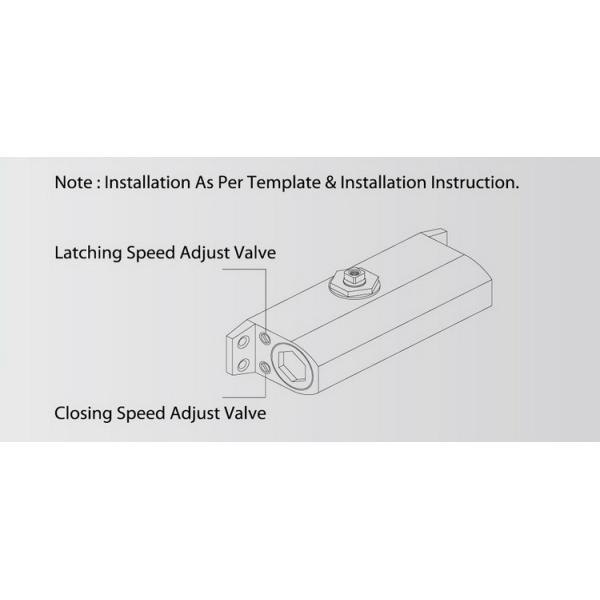

Ω Double Regulating Valves Controls Closing and Latching Speed Adjustable

Ω Fixed Closing Power size three / four , applicable door width 950mm, 1100mm

Ω Suitable for regular arm and top jamb overhead mounted ( for outward opening )

Ω Fuchs high quality lubricating fluid for door closer constant lubrication

Ω Grade II for medium working frequency, such as office meeting room, school,

chamber or club

Trusty cooperative supplier of universal high-end door control enterprises

Finishes: Painting - Aluminum, Gold, Bronze, Black, White, Brown

* SPRING FORWARD, EASY BACK: screw thread steel swing arm will not impact opening,

meanwhile shut doors gradually to allow for graceful entry and exit

* GENTLE, NO NEED TO CLOSE BY HAND: let the door close by itself, enjoy self-driven

shutdown and lock, maintain quiet and sureness.

Type No.

Width Limit

Max. Door

Weight

Closer Spec.

LxWxH)

Installation Dim.

D303

950mm 65kg 178*40*59.3mm 162*19mm

D304

1100mm 85kg 178*40*59.3mm 162*19mm

Exterior Overhead Hydraulic Door Closer Size 4 / 3 Top Jamb Mounted Outward OpeningExterior Overhead Hydraulic Door Closer Size 4 / 3 Top Jamb Mounted Outward Opening

Exterior Overhead Hydraulic Door Closer Size 4 / 3 Top Jamb Mounted Outward Opening

Exterior Overhead Hydraulic Door Closer Size 4 / 3 Top Jamb Mounted Outward Opening
