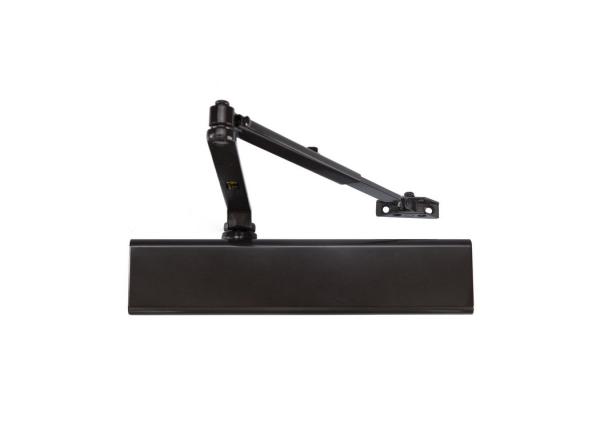

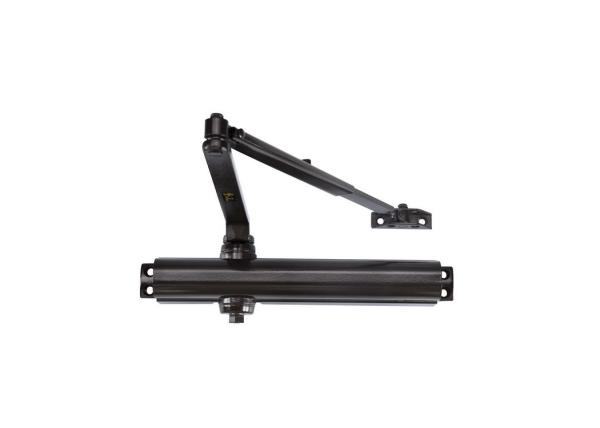

Overhead Size Adjusting Door Closer D8016 Steel Arm American Style ANSI Grade 1

• ANSI and UL-certified | Exporting since 2011
• Best-selling type in Amazon and USA market
• Smooth running, oil tight, no abnormal noise

SPECIFICATION:

Finish: Aluminum (ALU), Dark Bronze (DURO), Brown, Gold, Black, White
Powder Coated Finished Body to enhance corrosion resistance
Feature: ANSI A156.4 Grade 1, Overhead Size Adjusting, American Style
Material: Cast Aluminum body, Steel arm, Heat Treated Piston and Pinions.
Adjustable: 3 valves regulating backcheck, closing and latching speed.
Tri-Pack screw package (Regular, Top Jamb, and Parallel Arm Mount)
Spring Size Adjusting through 1 to 6 (Spring Pre-Set as #3).

Use for doors weight up to 331lbs and 59.1 inches width

TESTED AND CERTIFIED:

ANSI/BHMA 156.4:
UL/cUL Listed:
Grade 1 tested for 2,000,000+ cycles
ADA Compliant

► Long-term cooperative supplier of universal first-rate door control enterprises

* SPRING FORWARD, EASY CLOSING: the commercial-grade arm will not impact opening,

and close the door slow enough to allow for elegant entry and exit

* GENTLE, NO NEED TO CLOSE BY HAND: let the door close by itself, enjoy automatic closing

and latching, maintaining quiet and security.

* FITS WHERE YOU NEED IT: The surface mount design and tri pack options, allow you to install

this over any high-traffic area, while providing complete control

* TRUSTABLE CERTIFICATION: ANSI 156.4 - Grade 1 is the highest standard achievable for

door closers. This model is actually super passed 2 million+ cycles testing.

* SIZE ADJUSTABLE AS PER YOUR REQUIREMENT: Let customers go their own pace. Closing

force of size 1 to 6 is available for various door weight and width.
