Aluminum Automatic Fire Door Closers Reinforced Steel Arm Small Size and Body
Aluminum Automatic Fire Door Closers Reinforced Steel Arm Small Size and Body
Aluminum Automatic Fire Door Closers Reinforced Steel Arm Small Size and Body
Aluminum Automatic Fire Door Closers Reinforced Steel Arm Small Size and Body
Specifications
Brand Name :
DORHAUS, Dorrenhaus
Model Number :
D202, D203
Certification :
ISO9001:2015, CCC
Place of Origin :
China
MOQ :
100 sets
Price :
USD5.50-USD5.80 per set
Payment Terms :
D/P, L/C, , T/T, Western Union, MoneyGram
Supply Ability :
20,000 sets per month
Delivery Time :
around 35 days
Packaging Details :
1 set in 1 paper box, 20 sets in carton of 430*260*300mm, 24ctns in 1 wooden pallet size: 110*85cm
Primary Keyword :
Automatic Fire Door Closer
Max. Open Angle :
115 degree
Spring Strength :
#2, #3
Max. Door Width :
850-950 mm
Assurance Period :
2years
Applicable Weight :
25-65 kg
Optional Features :
Hold Open
Working Temp. :
-40 ℃ to 45 ℃
Description

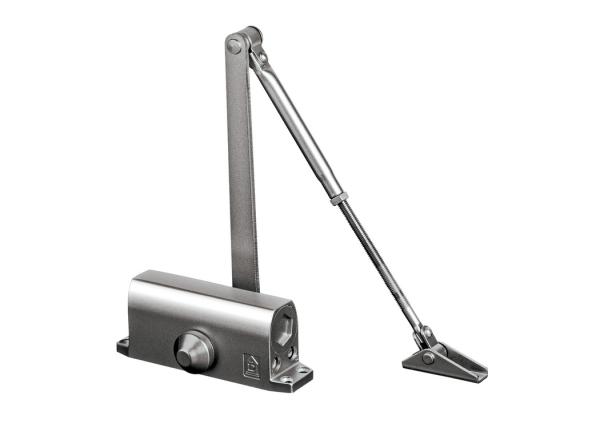

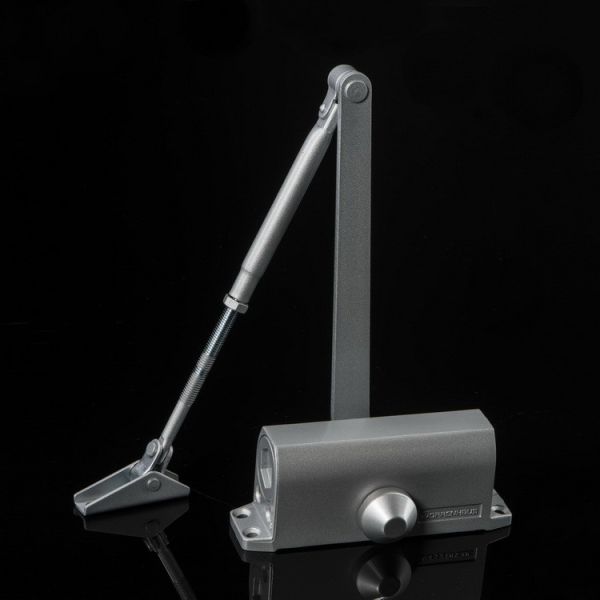

Aluminum Automatic Fire Door Closers Reinforced Steel Arm Small Size and Body

  • CCC certificated, pass 2 hours fire rating test
  • Skilled Workmanship: even running, oil tight, noiseless
  • Focusing on manufacturing door closer only


Dorrenhaus D200 series door closer is of smallest body size (dimension) and
closing force (size 2), most cost-effective model. Suitable for max. 950mm
width and/or 65kg door weight, it's best for family or office room door.

Ω Aluminum Automatic Fire Door Closer Mainly for Residential Use
Ω Key Features: Economic Model, Smallest Size, Fire Rated
Ω Precise Casting Aluminum Closer Body and Reinforced Steel Arm
Ω Automatic Closing and Latching Speed Adjustable
Ω Non-handed Installation, Standard Mounting
Ω Hydraulic Structure, Rack and Pinion type
Ω Fixed Spring Force #2, #3 for 25-65kg door
Ω Fuchs Closer Lubricating Oil, Soft Closing
Ω Internal ( inside body ) Hold Open ( HO ) Function Optional

► Trusted cooperative partner of universal famous door hardware companies


Painting - Aluminum, Bronze, Black, Brown, White, Gold

* GENTLE, NO MANUAL CLOSING required: allow the door do the work, enjoy
self-driven shutdown and lock, maintain quiet and sureness.
* SPRING THRUST, EASY CLOSING: the reinforced steel arm won’t interfere with
opening, while closing doors slowly enough to allow graceful entrance and exit

Opening
Angle

Fire Rating
Standard

Average
Life Cycles

Production
Standard


Assurance Period


115º

 GA93-2004 200,000 CCC 24 Months


Type No.

 Max. Width Weight Limit

Closer Size
(LxWxH)

 Installation Dim.


D202

 850 mm 25-45 kg

144*36*56 mm

132*19 mm


D203

 900 mm 40-65 kg 144*36*56 mm 132*19 mm


Aluminum Automatic Fire Door Closers Reinforced Steel Arm Small Size and Body
Aluminum Automatic Fire Door Closers Reinforced Steel Arm Small Size and Body
Aluminum Automatic Fire Door Closers Reinforced Steel Arm Small Size and Body
