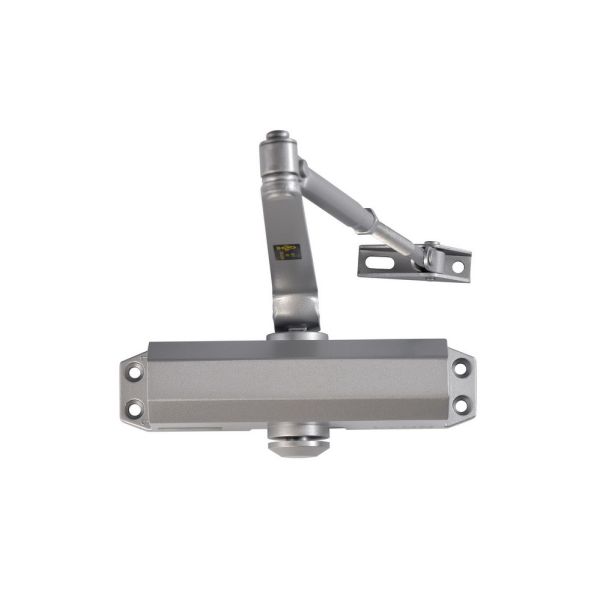

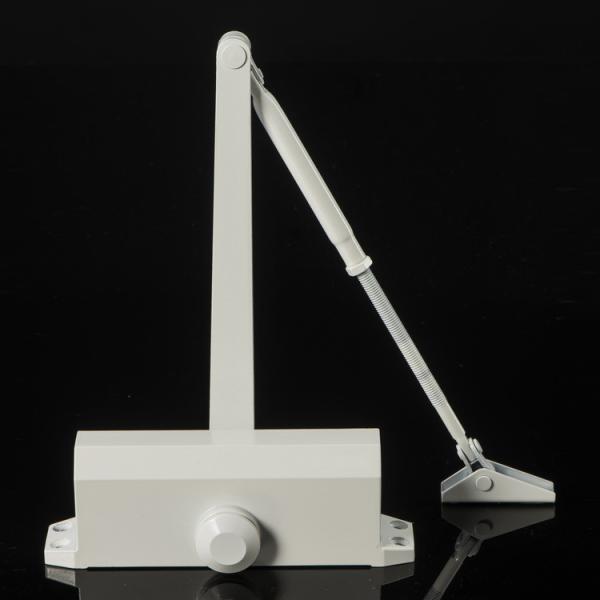

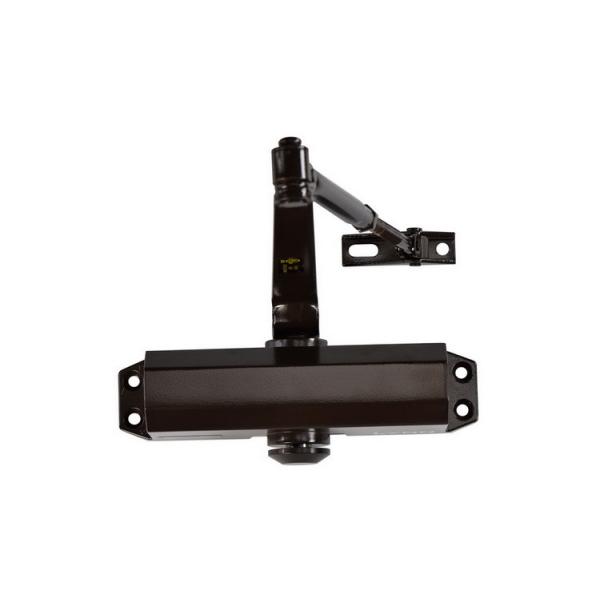

65kgs Brass Door Closer
65kgs Brass Door Closer
65kgs Brass Door Closer
65kgs Brass Door Closer
65kgs Brass Door Closer
65kgs Brass Door Closer
65kgs Brass Door Closer
65kgs Brass Door Closer
Specifications
Brand Name :
Dorrenhaus
Model Number :
D503
Certification :
UL 228, ISO9001:2015
Place of Origin :
Zhejiang, China
MOQ :
100 pcs
Price :
USD7.80-USD8.30/PC
Payment Terms :
D/P, L/C, , T/T, Western Union, MoneyGram,
Supply Ability :
20,000pcs per month
Delivery Time :
5 weeks
Packaging Details :
1pc in 1 paper box, 10pcs in carton of 445*280*178mm, 40ctns in 1 wooden pallet size: 116*92cm
Catergories :
Automatic Hydraulic Door Closer
Function Optional :
Hold Open
Temp. Range :
-40℃ to 45 ℃
Door Open Angle :
105 degree
Max. Door Weight :
40-65kgs
Warranty Period :
3years
Spring Power :
size 3
Max. Door Width :
950mm
Description

Automatic Brass Door Closer Soft Close Speed Adjustment for Office Door

  • UL 228 Certification, tested life cycles of 300,000+
  • Smooth running, no abnormal sound, no oil leakage
  • Focusing on door closer manufacturing for 15+ years

  • Light and Medium Duty Economic Model for Office and Residential Doors
  • Dual Valves: adjust closing and latching speed , Soft close automatically
  • Precised casting aluminum body & forged steel arm, hold open arm optional
  • Adjustable back check comes standard, giving more control over the competition

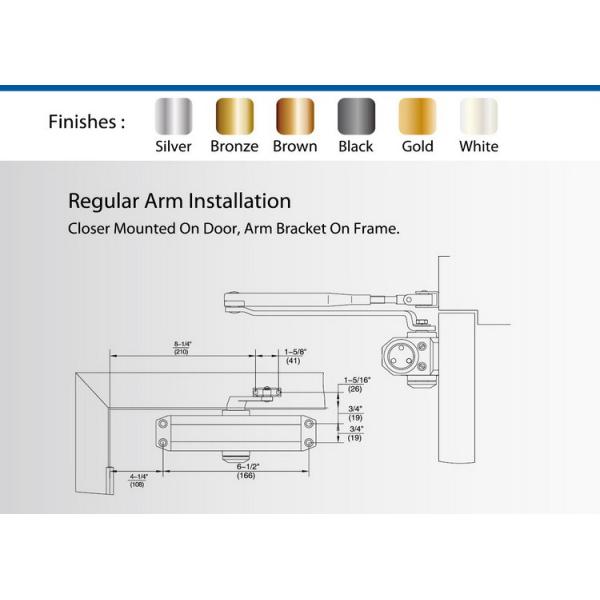

  • Brackets and Soffit Plate to allow Regular -Top Jamb - Parallel Arm Installation.
  • Non-handed installation
  • Compare to Grade 2 Door Closers
  • Fixed Spring (Closing) Force size 3
  • UL 10C certification 3 hours fire rating
  • UL 228 Certification, life cycles of 300,000+

► Long-term cooperative supplier of world's top security brands

65kgs Brass Door Closer

Painting: - Silver, Brass, Bronze, Black, White, Brown

Other Specifications to Note

  • Item Weight: 1.45kg (3.2 lbs)
  • Box Dimensions: 44.5x28.3x18cm (17.5 ”x 11.14”x 7.09 ”)
  • Screw/Bolt Pattern: 6-1/2″ width x 3/4″ height (center to center spacing)
  • Footprint H: 1-11/16” (43mm) W: 7.125” (181mm) Projection: 2-3/8” (60mm)
  • Max Opening Angle = 105 degrees

Model

Door

Width

Door

Weight

Closer Dim.

(LxWxH)

Mounting

Dimension

D503

 950mm 40-65kg 182*41*60.5 mm

166*19 mm

65kgs Brass Door Closer

65kgs Brass Door Closer

65kgs Brass Door Closer65kgs Brass Door Closer

65kgs Brass Door Closer

65kgs Brass Door Closer
