Female 12 Pin Automotive Wire Connectors , Black Car Light Connectors
Female 12 Pin Automotive Wire Connectors , Black Car Light Connectors
Female 12 Pin Automotive Wire Connectors , Black Car Light Connectors
Female 12 Pin Automotive Wire Connectors , Black Car Light Connectors
Female 12 Pin Automotive Wire Connectors , Black Car Light Connectors
Female 12 Pin Automotive Wire Connectors , Black Car Light Connectors
Specifications
Brand Name :
ZHONGZHI
Model Number :
174045-2
Certification :
TS16949
Place of Origin :
China
MOQ :
200pcs/box
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300K pcs per month
Delivery Time :
5-8 working days
Packaging Details :
paper box and carton
Material :
PBT
Pin Number :
12 Pins
Color :
Black
MOQ :
200pcs/box
Application :
Automotive
Sample :
Free
Description

Automotive Female Black Plastic Wire Harness Connectors 12 Pins

Product Overview

Part Number Pin Number Material Color Applicable Terminal MOQ
174045-2 12 Pins PBT Black 173716-1 200

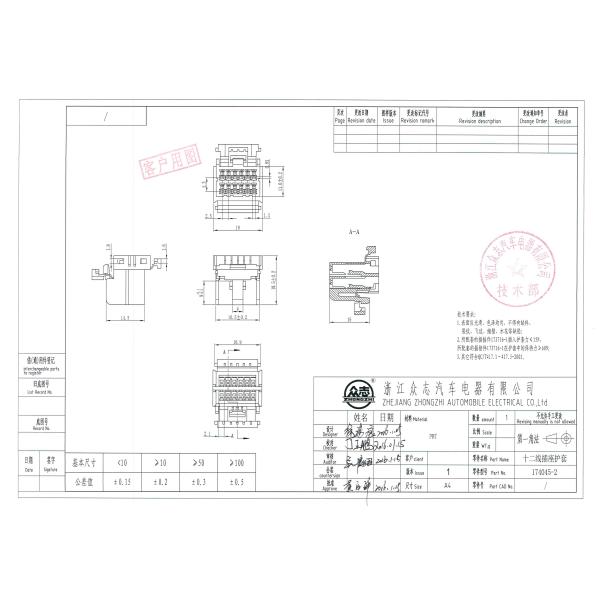

Product Drawing

Female 12 Pin Automotive Wire Connectors , Black Car Light Connectors

Product Type Features

  • Connector Style : Housing for female terminals

  • Connector System :Wire-to-Board, Wire-to-Device, Wire-to-Wire

  • Sealable : No

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Strain Relief : No

  • Row-to-Row Spacing (mm): 3, 5

  • Row-to-Row Spacing (in): .118, .197

Configuration Features

  • Number of Positions : 12

  • Number of Rows : 2

Electrical Characteristics

  • Nominal Voltage Architecture (V): 12

  • Operating Voltage (VDC): 12

Body Features

  • Color : Black

  • Cable Exit Angle : 180°

  • Body Material : PBT

Contact Features

  • Mating Tab Width : 1 mm [ .039 in ]

Mechanical Attachment

  • Mounting Feature : Without

  • Terminal Position Assurance : Yes

  • Polarized : Yes

Housing Features

  • Centerline (Pitch) : 2.5 mm [ .098 in ]

Dimensions

  • Width : 18.1 mm [ .713 in ]

  • Height : 18.9 mm [ .744 in ]

  • Length : 18.5 mm [ .728 in ]

Usage Conditions

  • Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

Operation/Application

  • Circuit Application : Signal

Industry Standards

  • UL Flammability Rating : UL 94-HB

Packaging Features

  • Packaging Method : Package

  • Packaging Quantity : 200

Other

  • Connector Position Assurance Capable : No

  • Serviceable : Yes

FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.

2. Q: How can I get some samples?
A: We are honored to offer you samples if you find the products you are interested in or send us your drawing.

3. Q: Can you make it according to my drawing?
A: Yes,we can.We will make it according to your request.

4. Q: Samll order can be accepted?
A: Yes,we can accept it,don't worry about it.

5. Q: How can i get a quotation?
A: Please send your inquiry to our email,and we need to some information about the project,such as dimensions,material ,quantity etc.
