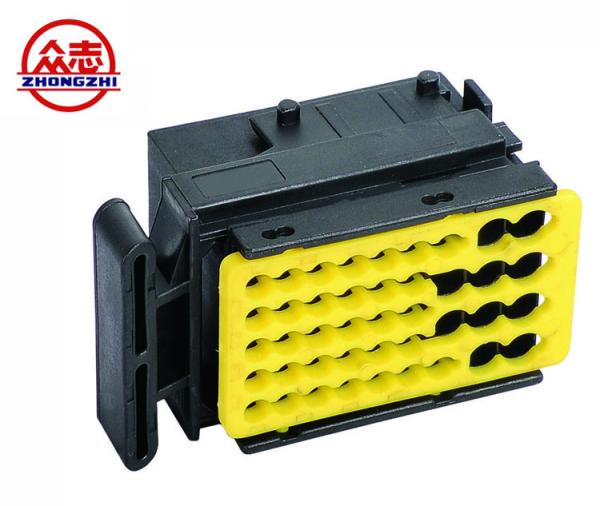

936421-2 42 Pins PBT Auto Connectors For Wire Harness
936421-2 42 Pins PBT Auto Connectors For Wire Harness
936421-2 42 Pins PBT Auto Connectors For Wire Harness
936421-2 42 Pins PBT Auto Connectors For Wire Harness
936421-2 42 Pins PBT Auto Connectors For Wire Harness
936421-2 42 Pins PBT Auto Connectors For Wire Harness
Specifications
Brand Name :
ZHONGZHI
Model Number :
936421-2
Certification :
TS16949
Place of Origin :
China
MOQ :
100pcs/bag
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300K pcs per month
Delivery Time :
5-8 working days
Packaging Details :
paper box and carton
Material :
PBT
Pin Number :
42 Pins
Color :
Black
MOQ :
100pcs/bag
Sample :
Free
Application :
Automotive
Product name :
42 pins connector
Gender :
Female
Description

936421-2 Black Auto 42 Pins Waterproof Connector, Auto Wire Harness Connectors

Product Overview

Part Number Pin Number Material Color Applicable Terminal MOQ
936421-2 42 Pins PBT Black DJ623-E1.5A,DJ623-E3.5A 100

Product Description

Timer connector housings are available with a wide range of cavity options from power to high pin density PCB connections. These connectors accept Timer contacts and are available in both pin and receptacle housings.View All TIMER, CONNECTOR HOUSING (555)

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

  • Connector Style : Housing for female terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : Yes

  • Primary Locking Feature : On the Terminal

  • Strain Relief : No

  • Row-to-Row Spacing : 4 mm [ .157 in ]

Configuration Features

  • Number of Positions : 42

  • Number of Rows : 5

  • Blank Cavity Position : 0

Body Features

  • Color : Black

  • Cable Exit Angle : 180°

  • Body Material : PA GF

Contact Features

  • Mating Tab Width : 2.5 mm [ .098 in ]

Mechanical Attachment

  • Mounting Feature : Without

  • Terminal Position Assurance : Yes

  • Polarized : Yes

Housing Features

  • Centerline (Pitch) : 4.5 mm [ .177 in ]

Dimensions

  • Width : 33.4 mm [ 1.31 in ]

  • Height : 33 mm [ 1.29 in ]

  • Length : 52 mm [ 2.04 in ]

Usage Conditions

  • Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120

  • Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248

  • Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

Operation/Application

  • Circuit Application : Signal

Industry Standards

  • UL Flammability Rating : UL 94-HB

Packaging Features

  • Packaging Method : Box

  • Packaging Quantity : 90

Other

  • Connector Position Assurance Capable : No

  • Serviceable : Yes

936421-2 42 Pins PBT Auto Connectors For Wire Harness

Company Information

Why choose Zhongzhi

1. Excellent service before purchasing

Zhongzhi know what the best cost-effective spare parts are. According to clients’ circumstances, we will recommend most suitable parts for them.

2. Guaranteed quality

Most products which Honha are sold all over the worlds with high quality and also provide warranty to security benefits.

3. Rich experience and resources of various manufactures

Zhongzhi has enormous resources of various manufacturers and distributors. Not only we are able to supply large quantity order, but also we can organize small quantity complex order as well.

PRODUCT NAME 3 pin female automotive waterproof electrical car connector 6189-0193
Specification: According to the costomer picture,item NO. or picture
Certification: ISO9001,TS16949,ROHS,3C,SGS,UL and the latest REACH
Inspections: 100% tested before delivery.
Delivery: The stock goods will be delivered within 1-2 days,and the customized goods will be delivered within 7days as soon as we received the payment.
Sample: Free
MOQ: Most product not have MOQ,the common connectos are in stock
Terms of trade: EXW,FOB,CIF,CFR and so on.
Payment Terms: T/T in advance,Western Union,Paypal,L/C etc.If the amount more than 5000USD,we can do 30% T/T deposit,70%T/T deposit before shipment and blance against shipment.
Application:

Widely used in household appliances,automotive,cameras,

telecommunication equpment,computer,controllers,alarm security,appliance instuments and fields
Serivce: ODM/OEM

Acting Brand

Zhejiang Zhongzhi Automobile Electric Appliances Co., Ltd. As a reliable partner and supplier, we offer advanced products and have large stock. In these ways, we react fast, shorten lead time and increase order amounts. Our product are sold to many country,have been exported to North America,Western Europe,Southeast Asia,South America,Northern Europe,Mid East,Southern Europe,Africa and many other countries. We would like to cooperate with global customers and make the good protection project in world market.
