Motorcycle Automotive Electrical Connectors / Vehicle Wiring Connectors
Motorcycle Automotive Electrical Connectors / Vehicle Wiring Connectors
Motorcycle Automotive Electrical Connectors / Vehicle Wiring Connectors
Motorcycle Automotive Electrical Connectors / Vehicle Wiring Connectors
Motorcycle Automotive Electrical Connectors / Vehicle Wiring Connectors
Motorcycle Automotive Electrical Connectors / Vehicle Wiring Connectors
Specifications
Brand Name :
ZHONGZHI
Model Number :
174046-2
Certification :
TS16949
Place of Origin :
China
MOQ :
200pcs/bag
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300K pcs per month
Delivery Time :
5-8 working days
Packaging Details :
paper box and carton
Material :
PBT
Pin Number :
16 Pins
Sample :
Free
MOQ :
200pcs/bag
Application :
Automotive
Gender :
Female
Description

Motorcycle Automotive Electrical Connectors / Vehicle Wiring Connectors

Product Overview

Part Number Pin Number Material Color Applicable Terminal MOQ
174046-2 16 Pins PBT Black 173716-1 200

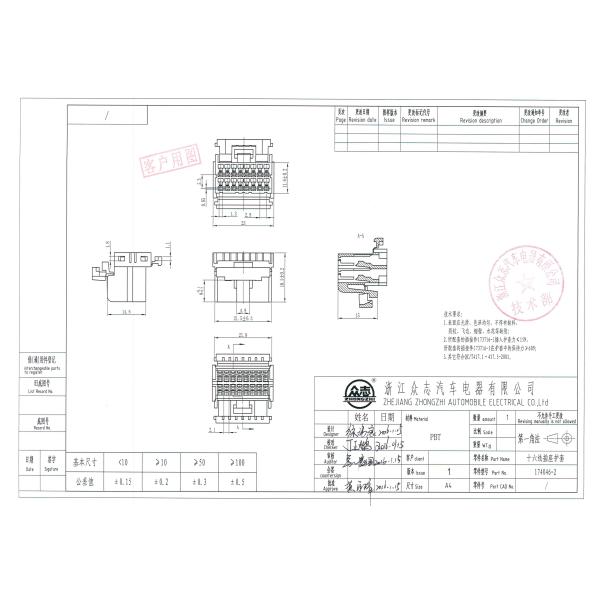

Product Drawing

Motorcycle Automotive Electrical Connectors / Vehicle Wiring Connectors

Product Type Features

  • Connector Style : Housing for female terminals

  • Connector System : Wire-to-Board, Wire-to-Device

  • Sealable : No

  • Hybrid Connector : No

  • Primary Locking Feature : Integrated in Housing

  • Strain Relief : No

  • Row-to-Row Spacing (mm): 3, 5

  • Row-to-Row Spacing (in): .118, .197

Configuration Features

  • Number of Positions : 16

  • Number of Rows : 2

Electrical Characteristics

  • Nominal Voltage Architecture (V): 12

  • Operating Voltage (VDC): 12

Body Features

  • Color : Black

  • Cable Exit Angle : 180°

  • Body Material : PBT

Contact Features

  • Mating Tab Width : 1 mm [ .039 in ]

Mechanical Attachment

  • Mounting Feature : Without

  • Terminal Position Assurance : Yes

  • Polarized : Yes

Housing Features

  • Centerline (Pitch) : 2.5 mm [ .098 in ]

Dimensions

  • Width : 23.1 mm [ .909 in ]

  • Height : 18.9 mm [ .744 in ]

  • Length : 18.5 mm [ .728 in ]

Usage Conditions

  • Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]

Operation/Application

  • Circuit Application : Signal

Industry Standards

  • UL Flammability Rating : UL 94-HB

Packaging Features

  • Packaging Method : Bag

  • Packaging Quantity : 100

Other

  • Connector Position Assurance Capable : No

  • Serviceable : Yes
