Professional 16 Pin Wire Harness Connector / Automotive Electrical Connectors
Professional 16 Pin Wire Harness Connector / Automotive Electrical Connectors
Professional 16 Pin Wire Harness Connector / Automotive Electrical Connectors
Professional 16 Pin Wire Harness Connector / Automotive Electrical Connectors
Specifications
Brand Name :
ZHONGZHI
Model Number :
1534094-1 & 1534101-1
Certification :
TS16949
Place of Origin :
China
MOQ :
400pcs/bag
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300K pcs per month
Delivery Time :
5-8 working days
Packaging Details :
paper box and carton
Material :
PBT
Pin Number :
16 Pins
Color :
Brown & Black
MOQ :
400pcs/box
Sample :
Free
Application :
Automotive
Gender :
Female
Connector Type :
Crimp Cable
Description

Professional 16 Pin Wire Harness Connector / Automotive Electrical Connectors

Product Overview

Part Number Pin Number Material Color Applicable Terminal MOQ

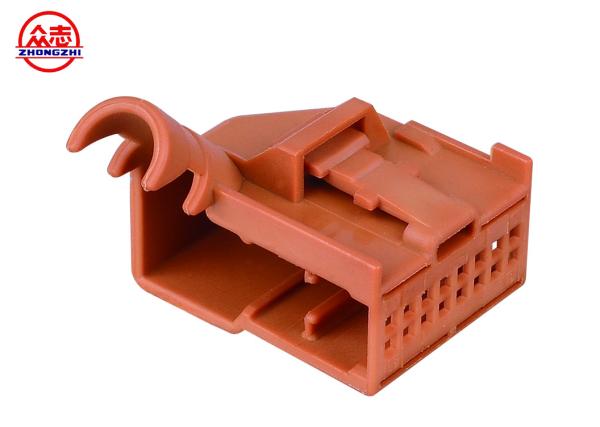

1534094-1 16 Pins PBT Brown 400

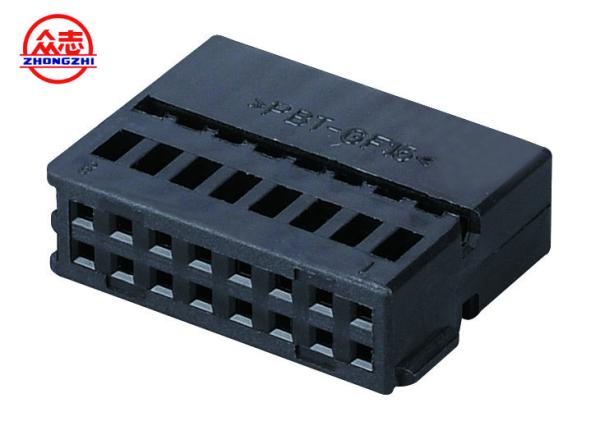

1534101-1 16 Pins PBT Black 400

Product Drawing

Professional 16 Pin Wire Harness Connector / Automotive Electrical Connectors

Professional 16 Pin Wire Harness Connector / Automotive Electrical Connectors

Product Type Features

  • Connector Style : Housing for female terminals

  • Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire

  • Sealable : No

  • Hybrid Connector : No

  • Primary Locking Feature : On the Terminal

  • Strain Relief : No

  • Row-to-Row Spacing : 4.24 mm [ .167 in ]

Configuration Features

  • Number of Positions : 16

  • Number of Rows : 2

Electrical Characteristics

  • Nominal Voltage Architecture (V): 12

  • Operating Voltage (VDC): 12

Body Features

  • Color : Black

  • Cable Exit Angle : 180°

  • Body Material : PBT GF

Contact Features

  • Mating Tab Width : .63 mm [ .025 in ]

Mechanical Attachment

  • Mounting Feature : Without

  • Terminal Position Assurance : Yes

  • Polarized : Yes

Dimensions

  • Width : 16.2 mm [ .638 in ]

  • Height : 6.8 mm [ .268 in ]

Usage Conditions

  • Operating Temperature Range : -40 – 80 °C [ -40 – 176 °F ]

Operation/Application

  • Circuit Application : Signal

Industry Standards

  • UL Flammability Rating : UL 94-HB

Packaging Features

  • Packaging Method : Box

  • Packaging Quantity : 1000

Other

  • Connector Position Assurance Capable : No

  • Serviceable  Yes

  • Professional 16 Pin Wire Harness Connector / Automotive Electrical Connectors
