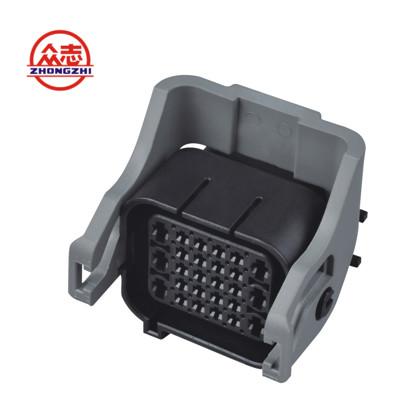

ST7261-1-6-2-8-21 Automotive Connector Hybrid, Housing For Female Terminals, Wire-To-Wire, 26 Position
ST7261-1-6-2-8-21 Automotive Connector Hybrid, Housing For Female Terminals, Wire-To-Wire, 26 Position
ST7261-1-6-2-8-21 Automotive Connector Hybrid, Housing For Female Terminals, Wire-To-Wire, 26 Position
ST7261-1-6-2-8-21 Automotive Connector Hybrid, Housing For Female Terminals, Wire-To-Wire, 26 Position
Specifications
Brand Name :
ZHONGZHI
Model Number :
ST7261-1-6-2-8-21
Certification :
TS16949
Place of Origin :
China
MOQ :
32pcs/box
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300K pcs per month
Delivery Time :
5-8 working days
Packaging Details :
paper box and carton
Material :
PBT
Pin Number :
26 Pins
Color :
Black
MOQ :
32pcs/box
Application :
Automotive
Gender :
Female
Description

ST7261-1-6-2-8-21 Automotive Connector Hybrid, Housing for Female Terminals, Wire-to-Wire, 26 Position

Product Overview

Part Number Pin Number Material Color Applicable Terminal MOQ
ST7261-1.6/2.8-21 26 Pins PBT Black 0-963902-1/1-962915-1 32

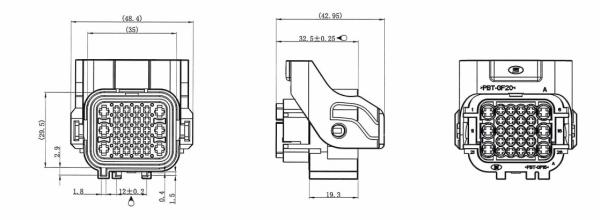

Product Drawing

  • Connector & Housing Type : Housing for Female Terminals

  • Mating Tab Width (mm): 1.6, 2.8

  • Mating Tab Width (in): .063, .11

  • Connector System : Wire-to-Wire

  • Number of Positions : 26

  • Centerline (Pitch) : 4 mm [ .157 in ]

​

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

  • Connector & Housing Type : Housing for Female Terminals

  • Connector System : Wire-to-Wire

  • Sealable : Yes

  • Hybrid Connector : Yes

  • Primary Locking Feature : Integrated in Housing

Configuration Features

  • Number of Positions : 26

Body Features

  • Body Material : PBT GF

  • Cable Exit Angle : 180°

  • Primary Product Color : Black

  • Connector Code : A

Contact Features

  • Mating Tab Width (mm): 1.6, 2.8

  • Mating Tab Width (in): .063, .11

Mechanical Attachment

  • Mating Alignment Type : Polarized

  • Strain Relief : No

  • Terminal Position Assurance : No

  • Mounting Feature : Without

Housing Features

  • Centerline (Pitch) : 4 mm [ .157 in ]

Dimensions

  • Product Height : 46.7 mm [ 1.83 in ]

  • Product Length : 48.2 mm [ 1.89 in ]

  • Product Width : 43.1 mm [ 1.69 in ]

Operation/Application

  • Circuit Application : Signal

Packaging Features

  • Packaging Method : Box

  • Packaging Quantity : 90

Other

  • Connector Position Assurance Capable : No

  • Serviceable : No

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: How can I get some samples?

A: We are honored to offer you samples if you find the products you are interested

in or send us your drawing.

3. Q: Can you make it according to my drawing?

A: Yes,we can.We will make it according to your request.

4. Q: Samll order can be accepted?

A: Yes,we can accept it,don't worry about it.

5. Q: How can i get a quotation?

A: Please send your inquiry to our email,and we need to some information about

the project,such as dimensions,material ,quantity etc.
