High Efficiency Steel Rule Die Equipment , Steel Rule Die Maker CE / SGS Approval
High Efficiency Steel Rule Die Equipment , Steel Rule Die Maker CE / SGS Approval
High Efficiency Steel Rule Die Equipment , Steel Rule Die Maker CE / SGS Approval
High Efficiency Steel Rule Die Equipment , Steel Rule Die Maker CE / SGS Approval
Specifications
Brand Name :
ZY
Model Number :
ZY-320A
Certification :
CE, SGS, ISO9001:2008
Place of Origin :
ShenZhen
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets/Month
Delivery Time :
5- 15 Wordays
Packaging Details :
Export Standard Wooden Case
Process Accuracy :
±0.03mm
Functions :
Flat cutting, Lipping, Bridging
Material Specification :
Height: 32-50mm, Thickness: 2pt-3pt
Software :
Self-develped free-installation software which is easy to upgrade and work steadily
Description

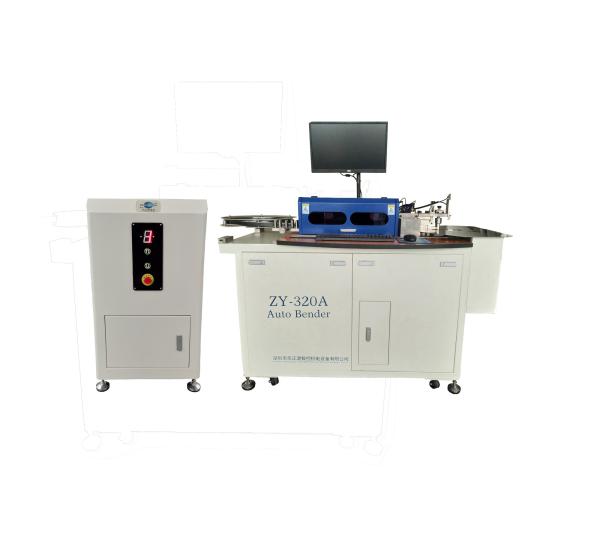

Diemakeing machine / Automatic rule bending machine ZY-320A

>>Feature:

1. All of bending, cutting, lipping, bridging, no-slot joint can be done in one machine.


2. Rule clamp system with double ball screw guarantee continuous and stable feed.

3. Self-developed Software supports the industrial standard CAD files (DXF, AI) and humanized design is easy to operate.


4. Auto rule holder is optional for bending machine, the holder can take 5 different tpye of rule. In addition, it can be precisely controlled by wireless remote as your wish

5: Takes double screw clamping technology, self-develop no stop feeding control system which guarantee the feeding speed and accuracy, Max increase the efficiency and precision

>>Technical Parameter:

Max bending angle 100°
Min arc radius of 180° R3.5
Min arc radius of 90° R1.0
Min cutting size 1.0mm
Min bending size 1.5mm
Power 3.5KW
Overall dimensions(L*W*H) 1.5m*1.2m*1.5m
Weight 600kg
Power supply 220V, 50/60Hz
Air compressor 6-8kg/cm²
Operation system Windows 7
Support language Chinese, English
Support file format DXF, AI

Our Considerate After-Sale Service:

1. All the new machines enjoy free on-site installation and training service.

2. All the new machines enjoy 12 months free warranty ever since machine being installed.

3. All the machines enjoy 7*24 hours after-sales service and fast response within 12 hours.

4. All the machines enjoy lifelong technical support.

5. If there are some troubles about machine, user need to send description, pictures and video to us, we will arrange engineers for online diagnose and send free parts for replacement during warranty period. Within warranty, we can send parts freely and we pay DHL charge.

6. If online diagnosis not work, we will appoint engineers to on-site inspection.

>>For more details, just be free to contact with us and welcome any suggestion
