Specifications
Brand Name :
ZY
Model Number :
ZY-320B
Certification :
CE, SGS, ISO9001:2008
Place of Origin :
Shenzhen
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets / Month
Delivery Time :
15 Workdays
Packaging Details :
Export Standard Wooden Case
Basic Functions :
Flat cut Lip, Bridge, Broach
Broach :
90° broaching, V type broaching, head & tail broaching
Optional Functions :
Perforation, Nick, Circular Bridge, Auto Stacker
Process Accuracy :
±0.02mm
Nick Range :
0.3~1mm
Material Specification :
Height: 8-32mm, Thickness: 1~3pt
Description

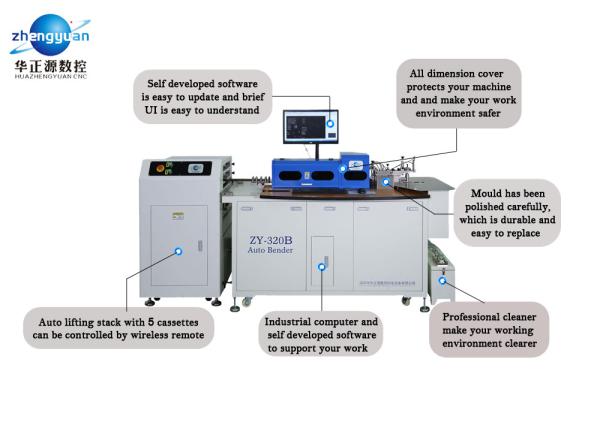

Auto Broach Bender Machine Eco Type ZY-320B


>> Advantages:

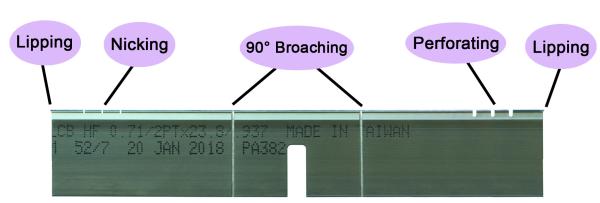

-> All of bend, cut, lip, bridge, broach, perforation, nick, no-slot joint can be automatically done in one machine.


-> Self-developed multiwheels control system can meet with demands of different broach and nick size.


-> Broach depth can be controlled easily by modifying parameters.

-> Auto 90° Broaching, V Type Broaching, Head & Tail Broaching.


-> Double clamp system guarantee continuous and stable feed.

-> The flatness and consistency for bending is the basic standard.


-> Self-developed Software supports the industrial standard CAD files (DXF, AI) and humanized design is easy to operate.


>>Technical Parameters:

Max bending angle 100°

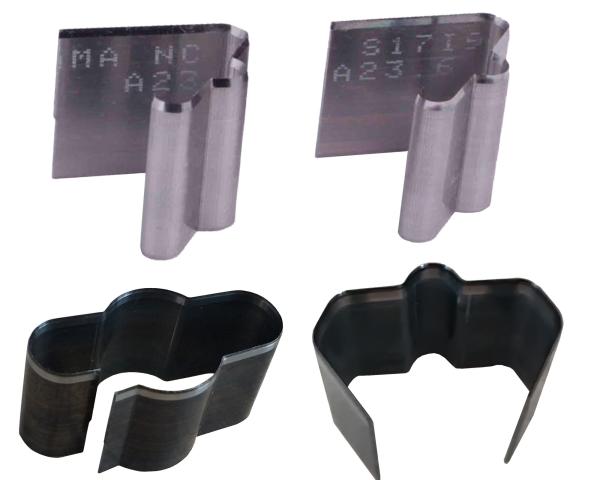

Min arc radius of 180° R3.5
Min arc radius of 90° R1.0
Min cutting size 1.0mm
Min bending size 1.5mm
Power 3KW
Manual Bridge Width: 5~15mm, Height: 15~18mm
Overall dimensions(L*W*H) 1.5m*1.2m*1.5m
Weight 600kg
Power supply 220V, 50/60Hz
Air compressor 6-8kg/cm²
Operation system Windows 7
Support language Chinese, English
Support file format DXF / AI / NC / CDR/ DWG



>>Why Choosing us

Our Considerate After-Sale Service:

-> All the new machines enjoy free on-site installation and training service.

-> All the new machines enjoy 12 months free warranty ever since machine being installed.

-> All the machines enjoy 7*24 hours after-sales service and fast response within 12 hours.

-> All the machines enjoy lifelong technical support.

-> If there are some troubles about machine, user need to send description, pictures and video to us, we will arrange engineers for online diagnose and send free parts for replacement during warranty period. Within warranty, we can send parts freely and we pay DHL charge.

-> If online diagnosis not work, we will appoint engineers to on-site inspection.


>>We are now search for global partners for long-time cooperation,,kindly welcome to join us !
