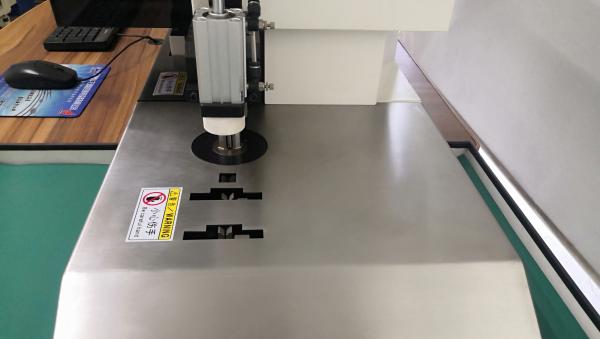

Intelligent Laser Die Making Equipment Multi Broach Cut lip bridge nick perforation
Intelligent Laser Die Making Equipment Multi Broach Cut lip bridge nick perforation
Intelligent Laser Die Making Equipment Multi Broach Cut lip bridge nick perforation
Intelligent Laser Die Making Equipment Multi Broach Cut lip bridge nick perforation
Specifications
Brand Name :
ZY
Model Number :
320D
Certification :
CE, SGS
Place of Origin :
Shenzhen
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets
Delivery Time :
15 Workdays
Packaging Details :
Export Standard Wooden Case
Basic Functions :
Flat cut, Lip, Bridge, Perforation, One-time Cut
Optional Functions :
Hole Bridge, Coattails type Joint, Auto Stacker
Broach :
90° broaching, V type broaching, rectangular broaching, arc broaching, head & tail broaching
Process Accuracy :
±0.02mm
Software :
Self-develped free-installation software HZY_Bender
Material Specification :
Height: 8-32mm, Thickness: 1-3pt
Overall Dimension :
2.0m* 1.5m *1.8m
Auxiliary :
Auto Stacker, Built-in Professional Cleaner
Description

Multi-function Cut Lip Bridge Nick Perforation

Multi Broach UltraBender ZY-320D


>>Strengths:


-> All of bend, cut, lip, bridge, broach, perforation, nick, no-slot joint can be done in one machine.


-> Self-developed multiwheels control system can meet with demands of different broach and nick size.


-> Broach depth can be controlled easily by modifying parameters.


-> Double clamp system guarantee continuous and stable feed.

-> The flatness and consistency for bending is the basic standard.


-> Self-developed Software supports the industrial standard CAD files (DXF, AI) and humanized design is easy to operate.

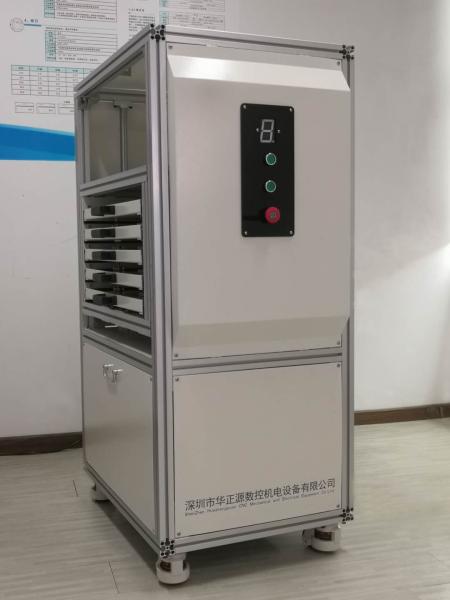

-> Auto steel rule stacker is optional for bender, it can take 5 different tpye of rule and be precisely controlled by wireless remote as your wish.

-> Together with professional mannual bender can extremly boost the work efficiency.



>>Technical Parameter:

Max bending angle 100°
Min arc radius of 180° R3.5
Min arc radius of 90° R1.0
Min cutting size 1.0mm
Min bending size 1.5mm
Power 3.5KW
Setting of bridge Height can be adjusted by software within 15-18mm
Width can be adjusted by software within 5-10mm
Being able to customization of circular hole Bridge
Overall dimensions(L*W*H) 2.0m* 1.5m *1.8m
Weight 600kg
Power supply 220V, 50/60Hz
Air compressor 6-8kg/cm²
Operation system Windows 7
Support language Chinese, English
Support file format DXF / AI / NC / DWG / CDR


>>Packing & Delivery

-> Each machine(no matter new or used) is well packed with export standard wooden Case.


-> We will take photos & videos of machine before shipping.

Intelligent Laser Die Making Equipment Multi Broach Cut lip bridge nick perforation

>>For more details and services, just be free to contact with us and welcome any your suggestion !
