High Accuracy Steel Rule Bender , 0.3 - 1mm Nicking Range Channel Bending Machine
High Accuracy Steel Rule Bender , 0.3 - 1mm Nicking Range Channel Bending Machine
High Accuracy Steel Rule Bender , 0.3 - 1mm Nicking Range Channel Bending Machine
High Accuracy Steel Rule Bender , 0.3 - 1mm Nicking Range Channel Bending Machine
High Accuracy Steel Rule Bender , 0.3 - 1mm Nicking Range Channel Bending Machine
High Accuracy Steel Rule Bender , 0.3 - 1mm Nicking Range Channel Bending Machine
High Accuracy Steel Rule Bender , 0.3 - 1mm Nicking Range Channel Bending Machine
High Accuracy Steel Rule Bender , 0.3 - 1mm Nicking Range Channel Bending Machine
High Accuracy Steel Rule Bender , 0.3 - 1mm Nicking Range Channel Bending Machine
High Accuracy Steel Rule Bender , 0.3 - 1mm Nicking Range Channel Bending Machine
Specifications
Brand Name :
ZY
Model Number :
ZY-320B
Certification :
CE, SGS, ISO9001:2008
Place of Origin :
Shenzhen
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets / Month
Delivery Time :
5-15 Workdays
Packaging Details :
Export Standard Wooden Case
Accuracy :
±0.02mm
Basic Functions :
Flat cut, Lipper, Bridge
Optional Functions :
Broach, Customizable Perforation and Nick(Notch)
Broach :
90° broaching, V type broaching, head & tail broaching
Nick Range :
0.3~1mm
Material Specification :
Height: 8-32mm, Thickness: 0.45~1.07
Description

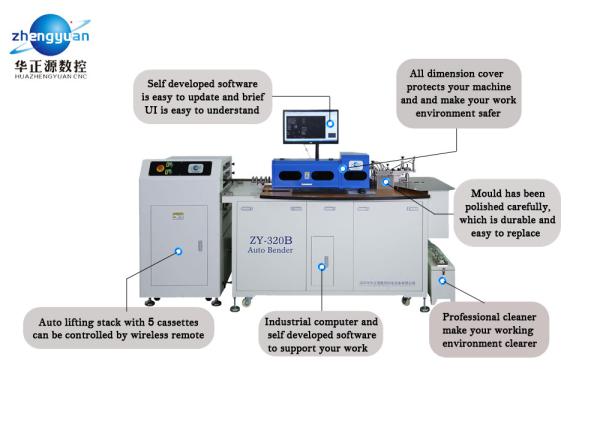

Auto Broaching Steel Rule Bender ZY-320B


>>Machine properties:

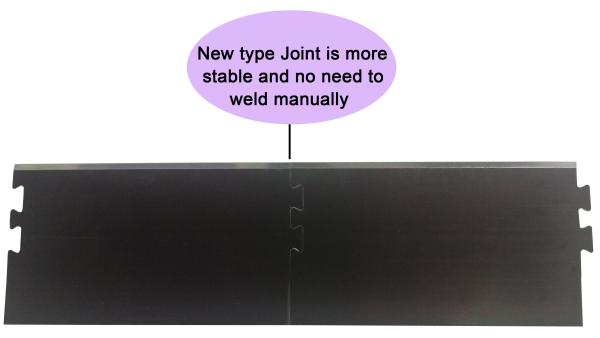

~ All of auto bend, cut, lipper, bridge, broach, perforation, nick, no-slot joint can be done in one machine.


~ High precision feed within ±0.03mm deviation and flatness is one of the basic performance of Ultrabender.


~ Easy broach part can meet with most of your demands for efficiency and shape.

~ The mode of perforation can be set fast as operator's wish.


~ Nick depth can be easily adjusted by software and nicking spare part can be replaced quickly.

~ Fast replacement of mould within 1 minute.


~ Self-developed Software supports the industrial standard CAD files (DXF, AI) and brief UI is easy to understand.


~ Auto lifting stack is optional for bender, it can take 5 different tpye of steel rule. In addition, it can be precisely controlled by wireless remote as your wish.


>>Parameters:

Max bending angle 95°
Min arc radius of 180° R3.5
Min arc radius of 90° R1.0
Min cutting size 1.0mm
Min bending size 1.5mm
Power 3KW
Manual Bridge Width: 5~15mm, Bridging Height: 15~18mm
Overall dimensions(L*W*H) 1.9m*0.8m*1.5m
Weight 550kg
Power supply 220V, 50/60Hz
Air compressor 6-8kg/cm²
Operation system Windows 7
Support language Chinese, English
Support file format DXF, AI


>>Just no hesitate to contact with us if anything want to know and welcome any your suggestions !
