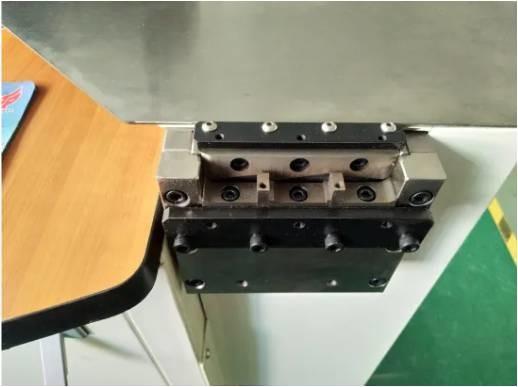

General Type Computer Blade Bending Machine With 19 Inches LCD ZY - 510B Model
General Type Computer Blade Bending Machine With 19 Inches LCD ZY - 510B Model
Specifications
Brand Name :
ZY
Computer configuration :
Inter core2 E5300 mainframes 19 inches LCD
Power supply :
220, 50Hz
pressure :
6kg/cm
power :
0.8kg
Function :
Lipping cutting bending flat cutting
Height of rule :
8mm-32mm
Price :
Negotiation
Description

ZY-510B general type computer bender machine

Features:

1. Software supports the industrial standard CAD files (DXF, AI) and it's humanization design is easy to operate.

2. Customization of auto ruler cassette, the cassette can take 5 different tpye of ruler and crease. In addition, it can be precisely controlled by wireless remote and anyone of 5 ruler can be selected as your wish.

3. All of bending, cutting, lipping, bridging, no-slot joint can be done in one machine.

4. This kind of Machine takes imported steel for bending mould which is tough, high strength, durable.

5. Original hydaulic ruler-clamping system with double ball screw can accurately feed continuously.

Technical Parameter:

Max bending angle 130°
180° Min arc radius R2.0
90° Min arc radius R1.0
Min cutting size 1mm
Min bending size 1.8mm
Power 0.8KW
Overall dimensions(L*W*H) 1.4m*0.64m*1.5m
Weight 300kg
Power supply 220V, 50Hz
Air compressor 6-8kg/cm²
Operation System Windows 7
Support language Chinese, English
Ruler thickness 0.45-1.07mm
Ruler height 8-32mm
Support file format DXF, AI
Computer configuration Intel core2 E5300 mainframes
19 inches LCD

>>Packing & Delivery

1. Each machine is well packed with export standard wooden box.
2. We will take photos & videos of machine before shippingGeneral Type Computer Blade Bending Machine With 19 Inches LCD ZY - 510B Model

Our Considerate After-Sale Service:

1. All the new machines enjoy free on-site installation & training service by our engineer.

2. All the machines leave factory with free quick-wear parts, extra paying parts on optional.

3. All the machines enjoy 12 months free warranty ever since machine being installed.

4. All the machines enjoy 7*24h after-sales service & fast response in 12hs.

5. For machine failures, user need to send description, pictures and video to us, we will arrange engineers for online diagnose and send free parts for replacement during warranty period. Within warranty, we can send parts freely and we pay DHL charge.

6. If on line diagnose not work, we can send engineers for on-site inspection.

7. All the machines enjoy lifelong technical support
