800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
800-2000 Books/H Double Loop Wire Binding Machine For Calendars
Specifications
Brand Name :
Nanbo
Model Number :
DWC-520
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
10-15 days
Packaging Details :
one machine package into one export wooden box ,box size:165x100x145cm
product name :
Double Loop Wire Book Binding Machine
Model :
DWC-520
Binding Wire Specification :
1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8"
Max Paper Width :
520mm
Min Paper Width :
75mm
Max Binding Width :
507mm
Working Speed :
800-2000 Books/hour
Size Of Worktable :
660x300mm
Machine Power :
220v/1ph/50Hz/60Hz/0.2kw
Air Compressor :
1.5kw
Air Pressure :
6-8bar
Main Machine Dimension :
1000x760x1230mm
Machine Net Weight :
380kg
Dimensions Of Pay-off Unit :
490x760x1230mm
Package Dimension :
1800x760x1230mm
Description

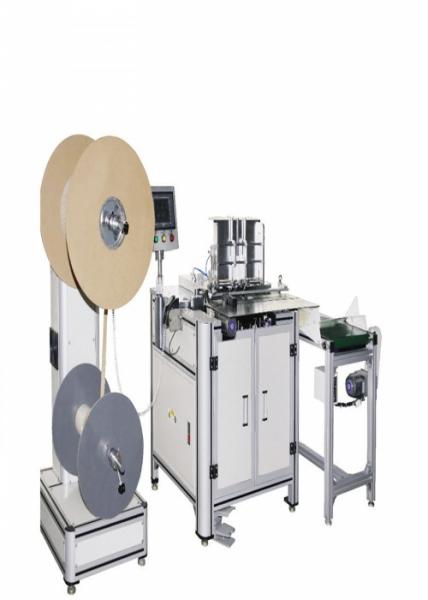

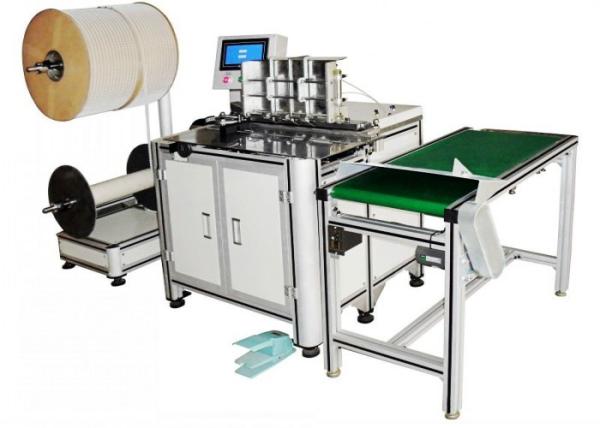

DWC-520 Auto Twin Ring Binding Machine 800-2000 Books / Hour For Books Calendars

*Description:

Double Loop Wire Book Binding Machine is used for binding double loop wire books,notebooks,calendars and so on.it has the functions Of automatic cutting,loops counting ,skip binding and closing.it's your best choice for double loop wire book binding

*Advantages:

1: can bind notebook speed up to 800-2000 books per hour

2: can bind double wire diameter 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" pitch 3:1 &2:1 with one machine just need different sizes binding mould

3: can bind book width 70-520mm

4: machine also includes auto hanger binding attachment

5: machine has auto error reminder function

6: Multifarious language interface design according to customer requested

7: Automatic transmission books,and allow workers to easy operate

8: the actuating element of the machine to switch to new side type to ensure long life and stability

9: Controlled by PLC,Easy to set and adjust

*Specifications:

Item:

Double Loop Wire Book Binding Machine
Feeding Mode: Manual,Automatic cutting,Insertion&Closing
Wire Specification: 1/4" 5/16“ 3/8” 7/16“ 1/2” 9/16“ 5/8” 3/4“ 7/8”
Wire Pitch: 3:1 2:1
Max Paper Width: 520mm
Max Binding Width: 507mm
Min Paper Width: 75mm
Working Speed: 800-2000 books/hour
Size of worktable: 660X300
Power: 220v/1ph/50Hz/60Hz/0.2kw
Air Compressor(not Included) 1.5kw
Air Pressure: 6-8bar
Main Machine Dimensions: 1000*760*1230mm
Package Dimensions: 1670*1000*1450mm
Net Weight : 400kg

800-2000 Books/H Double Loop Wire Binding Machine For Calendars

800-2000 Books/H Double Loop Wire Binding Machine For Calendars

800-2000 Books/H Double Loop Wire Binding Machine For Calendars

800-2000 Books/H Double Loop Wire Binding Machine For Calendars​

800-2000 Books/H Double Loop Wire Binding Machine For Calendars

800-2000 Books/H Double Loop Wire Binding Machine For Calendars

800-2000 Books/H Double Loop Wire Binding Machine For Calendars

*Double Loop Wire Spool 's specification,for double loop wire spool binding machine reference

Size Pitch Loops Per Spool(small) Loops per Spool(big) Binding thickness(mm) Binding sheets(80gsm)
3/16”(4.8mm) 3:1 116000 135000 3.5 30
1/4"(6.4mm) 3:1 80000 99000 4.8 45
5/16"(7.9mm) 3:1 71700 58000 6.4 60
3/8"(9.5mm) 3:1 53400 42000 7.9 75
7/16"(11.1mm) 3:1 38600 28000 9.5 85
1/2"(12.7mm) 3:1 30000 24000 11.1 100
9/16"(14.3mm) 3:1 21500 18000 12.7 120
5/8”(15.9mm) 3:1 12300 15000 14.3 135
5/8"(15.9mm) 2:1 12300 10000 14.3 135
3/4"(19.0mm) 2:1 8500 7000 17.5 165
7/8"(22.2mm) 2:1 6100 4500 20.6 180
1"(25.4mm) 2:1 4500 3600 23.8 200
1-1/8"(28.6mm) 2:1 3900 3000 25.4 230
