Specifications
Brand Name :
TAISHENG
Model Number :
TS1506-4
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
5 sets per month
Delivery Time :
45days
Packaging Details :
40'OT+20'GP
Material :
Carbon Steel
Usage :
Steel Plate Cleaning
Qty of Wheel :
2pcs x 11kw
Dust Collector :
Cartridge
Power :
33kw
Overall Size :
13000mm*5000mm*4500mm
Description

Steel Pipe Shot Blast Machine for Cleaning External Side diameter < 350mm

TS Machinery offers a wide range of steel pipe cleaning machines for different diameter. These machines are preferred over chemical pickling in many applications as well as friendlier to our environment.

Advantages of using TS Pipe Cleaning Machine:

  • The V-shape rollers arrangement is designed with a certain angle which can make sure the pipe move forward and rotate at the same time.
  • High throughput with optimum Blast coverage, getting good cleaning result
  • Equip with manganese steel plate as the protective ling, more durable.
  • Eco-friendly, with high efficiency dust collector system
  • Flexible design

Technical Data

Item Unit Specification
Gas Cylinder Max.Size mm φ60-φ350mm
Length mm 800mm-1600mm
V-Roller Conveyor Transport Speed (variable speed) m/min 0.5-5.0
Cylinder Cleaning Speed m/min 1.5-2.0
Surface Grade after Treatment Sa2.0-Sa2.5
Roughness Ra12.5-25um
Total Consumption Power kw About 33.4
Compressed Air Demand m3/min 1.0(Customer Scope)
Air Pressure MPa 0.4~0.8
Overall Machine Space Required (probably) L*W*H mm 13000mm*5000mm*4500mm

Note: our equipment can be designed according to customer special requirements

Machine Description

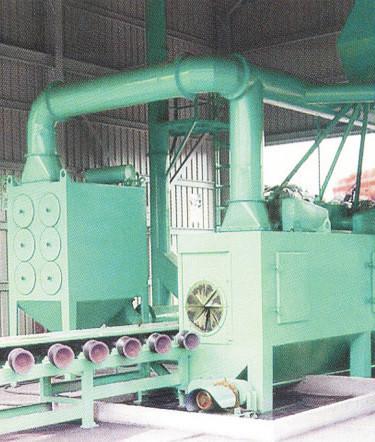

The equipment mainly consist of entry/exit vestibule, blasting chamber, blasting system, abrasive recovery system, V shape roller conveyor system, dust collector and electrical control system.

Cleaning Steel Pipe Shot Blasting Machine , Carbon Steel Shot Blasting Equipment

If you can't find suitable model, please feel free to contact with our sales team.
