14 Inch Steel Pipe Shot Blasting Machine , 4pcs X 11kw Vapour Blasting Equipment
14 Inch Steel Pipe Shot Blasting Machine , 4pcs X 11kw Vapour Blasting Equipment
Specifications
Brand Name :
TAISHENG
Model Number :
TS0620-4
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
5 sets per month
Delivery Time :
45days
Packaging Details :
40'OT+20'GP
Material :
Carbon Steel
Usage :
Steel Plate Cleaning
Qty of Wheel :
4pcs x 11kw
Dust Collector :
Cartridge
Power :
58kw
Overall Size :
L33000*W3600*H5300mm
Description

Steel Pipe Shot Blast Machine for Cleaning External Side diameter up to 14inch

TS Machinery offers a wide range of steel pipe cleaning machines for different diameter. These machines are preferred over chemical pickling in many applications as well as friendlier to our environment.

Advantages of using TS Pipe Cleaning Machine:

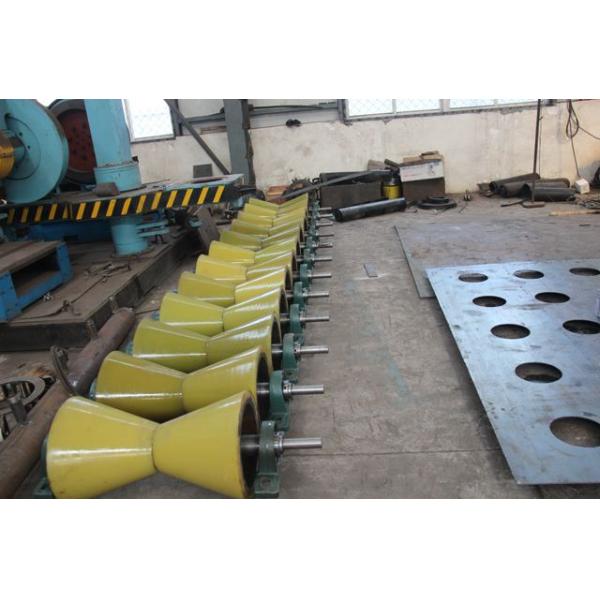

  • The V-shape rollers arrangement is designed with a certain angle which can make sure the pipe move forward and rotate at the same time.
  • High throughput with optimum Blast coverage, getting good cleaning result
  • Equip with manganese steel plate as the protective ling, more durable.
  • Eco-friendly, with high efficiency dust collector system
  • Flexible design

Technical Data

tem Pipe Diameter(mm) Cleaning Speed(m/min) Application
QG100 50-300 2-10 External Clean
QG720 159-720 2-6
QG1200 219-1016 1-6
QG1500 325-1600 1-6
QG2800 1016-2800 1-2
QGN100 50-300 1-4 Internal Clean

Note: our equipment can be designed according to customer special requirements

Machine Description

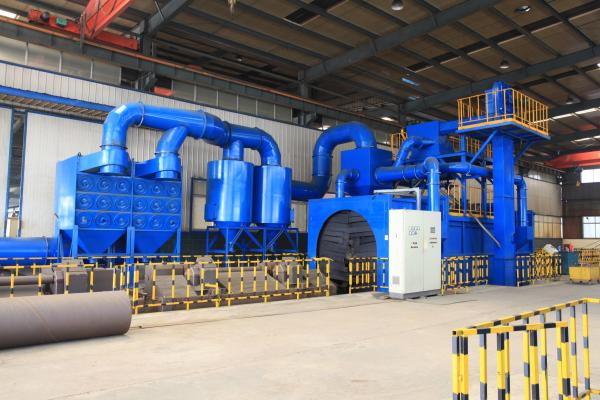

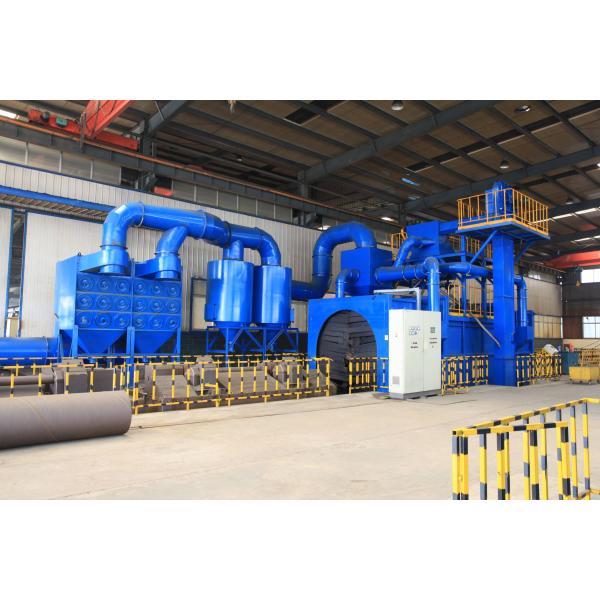

The equipment mainly consist of entry/exit vestibule, blasting chamber, blasting system, abrasive recovery system, V shape roller conveyor system, dust collector and electrical control system.

14 Inch Steel Pipe Shot Blasting Machine , 4pcs X 11kw Vapour Blasting Equipment

14 Inch Steel Pipe Shot Blasting Machine , 4pcs X 11kw Vapour Blasting Equipment

If you can't find suitable model, please feel free to contact with our sales team.
