Abrasive Steel Pipe Shot Blasting Machine , Stable Pipe Blasting Equipment
Abrasive Steel Pipe Shot Blasting Machine , Stable Pipe Blasting Equipment
Abrasive Steel Pipe Shot Blasting Machine , Stable Pipe Blasting Equipment
Abrasive Steel Pipe Shot Blasting Machine , Stable Pipe Blasting Equipment
Specifications
Brand Name :
TAISHENG
Model Number :
TS-SP300
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 set
Delivery Time :
5-8 working days
Packaging Details :
PE+ABF+Pallet
Purpose :
Pipe Internal Clean
Dia.of Pipe :
>300mm
Description

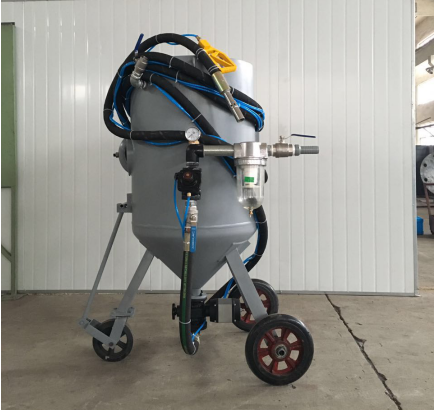

Diameter > 300mm Steel Pipe Internal Clean Machine for Small Quantity Low Operation Cost

Character:

  • High cleaning efficiency, it’s easy to move.
  • It’s used to a variety of materials and the size of the abrasive
  • Sample operation, convenient service, less wearing parts, low failure rate. (Control switch in the hand, no need another person to assist to turn on/off)
  • Pressurized tank is stable.(With pressure vessels certification)
  • Blasting time per fill is about 30 minutes.

Abrasive Steel Pipe Shot Blasting Machine , Stable Pipe Blasting Equipment Abrasive Steel Pipe Shot Blasting Machine , Stable Pipe Blasting Equipment

Applications:

  • Clear up the oxide, glitch, dross of the heat treatment pieces and weldment. The quality of clearance is up to Sa3.
  • Clear up the minor glitches and surface residues.
  • Plating and cleaning need to do before sand-blasting to improve the adhesion.
  • Apply to blast sand on the jeans, steel, container, remove oxide, rust on the machine tools, railway, metallurgy, bridges and so on.

Specification

Equipment Overall Dimension Φ600mm x 1300mmH
Tank Volume 0.3m³
Air compressor(customer scope) 22kw
Continuous Blasting Time About 30 mins
Air Working Pressure 0.3~0.7MPa
Control Method Pneumatic Control
Sand blasting nozzle 1 pc
Nozzle Diameter Φ8-10mm
Sand blasting hose DN25(Standard Length: 9m)
Air Source hose DN25
Weight (approximately) 150kg
Abrasive Steel Shot/Steel Grit/Silica Less than 16 mesh
Movable Type 2 or 3 industrial wheels

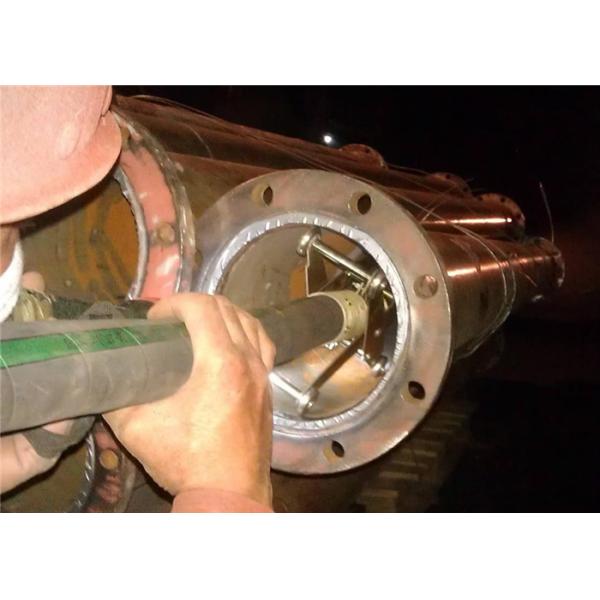

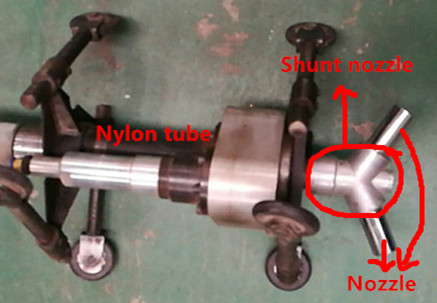

Additional Alternative Special Gun(for internal pipe clean) clean pipes of Φ300-900mm

Abrasive Steel Pipe Shot Blasting Machine , Stable Pipe Blasting Equipment
