Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment
Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment
Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment
Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment
Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment
Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment
Specifications
Brand Name :
TAISHENG
Model Number :
Q376
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
15-20days
Packaging Details :
PE+ABF+Pallet
Material :
Carbon Steel
Max.Product :
Φ600*1200mmH
Qty of Wheel :
2pcs x 7.5kw
Dust Collector :
Cartridge
Total Power :
29kw
Overall Size :
L2730mm*W5760mm* H4690mm
Description

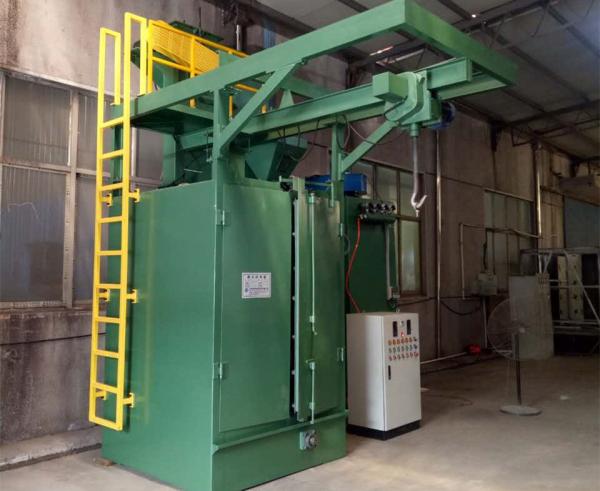

Q376 Single Hook Spinner Hanger Blast Machine for Cleaning Castings Dimension Dia.600mm Height 1200mm

Quick detail

Workpiece Description Max part dimension Φ600*1200mmH
Max part weight ＜600kg
Cleaning requirement Meet standard of GB8923-88 A-B Sa2½, surface roughness Ra12.5
Time of cleaning one hook Casting 8-15min; Forging 5-8min
Noise Level ≤85 dB
Dust Emission ≤80 mg/m³
Recommend Abrasive Φ0.2～Φ1.0mm steel cut wire or steel shot
Abrasive Initial Feed 1.0-1.5T
Machine Footprint L2730mm*W5760mm* H4690mm
Pit Foundation Not required
Compressed Air Consumption <0.6m3/min; 0.4Mpa~0.6Mpa
Power Consumption 29kw

Application possibilities

TS Spinner Hanger Machines are designed to clean a wide range of parts size and shapes. These shot blasting machines can be set up with dual swing doors, I or Y hanger and with multiple blast wheels. Parts are loaded onto a hanger and moved in, started rotating, got blasted and moved out.

Widely used in small and medium size of stainless steel parts, castings, die castings, forgings, welding structures and heat treatment parts surface cleaning and strengthening.

Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment

Advantages of using TS Spinner Hanger Machine

  • High throughput with optimum Blast coverage, getting good cleaning result
  • Using Mn13 wear-resistant steel plate as the protective plate, which effectively improves the service life of shot blasting chamber.
  • Equip with pulse-jet reverse air blowing system on dust collector, automatic clean the cartridges
  • Good sealing device prevent shot escape
  • Small machine footprint with flexible design

Machine Introduction

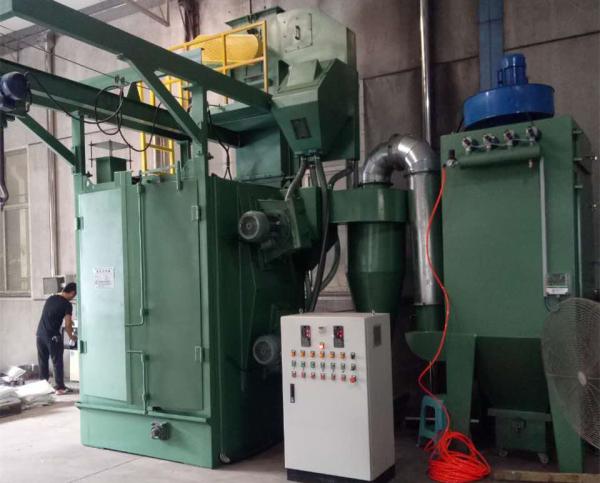

It is composed by shot blasting cabinet, blasting system, electrical hanger system, rotation system, abrasive recovery system, dust removal system, electrical control system and so on.

Blast Cabinet

This machine equips with thickness 6mm wear-resistant manganese steel plate Mn13 as protective.

Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment

Blast Wheel 7.5kw x 2pcs

Hanger System

Rotation speed 2.8r/min

Motor Power 0.55kw

Moving power 0.2 kw

Moving speed 14 m/min

Lifting power 1.5 kw

Lifting speed 4 m/min

Max loading 600kg

Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment

Abrasive Recovery System 3.0kw

Catridge Dust Collector 4.0kw Filtering Area 56m2

Pulse-jet Air Clean System: The dust collector has a programmable time board to “pulse” the cartridges with a jet of compressed air between blast cycle to purge the filter.

Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment

Electrical Control System 380V/50Hz/3phase (Customize)

If you can't find suitable model, please feel free to contact with our sales team.
Single Hook Automatic Shot Blasting Machine , Castings Cleaning Shot Blasting Equipment
