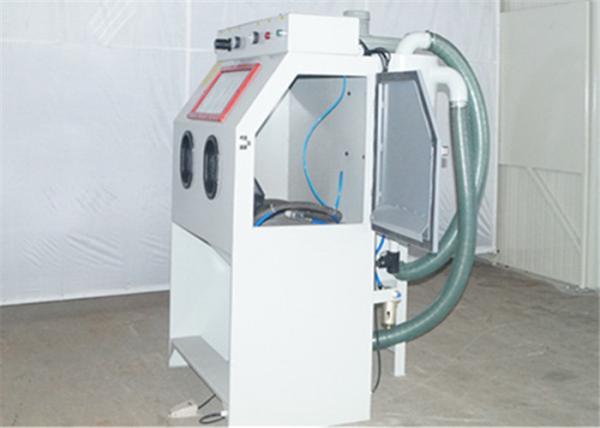

Small Parts Manual Sandblasting Cabinet , 550W Power Glass Beads Blast Cabinet
Small Parts Manual Sandblasting Cabinet , 550W Power Glass Beads Blast Cabinet
Small Parts Manual Sandblasting Cabinet , 550W Power Glass Beads Blast Cabinet
Small Parts Manual Sandblasting Cabinet , 550W Power Glass Beads Blast Cabinet
Small Parts Manual Sandblasting Cabinet , 550W Power Glass Beads Blast Cabinet
Small Parts Manual Sandblasting Cabinet , 550W Power Glass Beads Blast Cabinet
Specifications
Brand Name :
TAISHENG
Model Number :
TS9060A
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 sets per month
Delivery Time :
7 days
Packaging Details :
Pallet / Wooden + PE + ABF,
Material :
Carbon Steel
Working Chamber :
900mm*600mm*550mm
Air Consumption :
0.8-1.2m³/min
Diameter of Nozzle :
8mm
Dust Collector :
Bags
Warranty :
1 year
Description

Suction Blast Cabinet TS9060A Manual Type for Blasting Small Parts with 550W Power

Specifications

Working cabinet dimensions 900mm*600mm*600mm
Power Supply 220V 50Hz
Air pressure 0.3-0.7Mpa(kg/cm2)
Air consumption(Approx) 0.8~1.2m³/min
Quantity of process Gun 1pc
Load capacity ≤60Kg
Motor for dust collector 550W AC220V 50Hz
Machine lighting 15W AC220V 50Hz
Initial media charge(Approx) 5~10Kg
Weight of the machine(Approx) 250Kg
Abrasive recommended Alumina oxide, Glass beads

Small Parts Manual Sandblasting Cabinet , 550W Power Glass Beads Blast Cabinet

Applications

1. Improve the adhesion of electroplate.

2. Remove oxide, rust of castings, stamping pieces and heat-treated piece.

3. Applying for medium and small parts (single and small batch production).

4. It’s suitable for high strength work piece.

4. Clear up the oxide, glitch, dross of the heat treatment pieces and weldment. The quality of clearance is up to Sa2.5~ Sa3.

5. Clear up the minor glitches and surface residues.

6. Plating and cleaning need to do before sand-blasting to improve the adhesion.

Features

1. Right side door for easy loading.

2. Resilient-to-scratches LED lighting system for exceptional visibility

3. Foot pedal operated blasting

4. Automatic safety switch

5. Tool-free glass change in minutes

6. Actual space requirements for a complete system depends on the equipment configuration, options and requested work flow. Take care also about additional work space for the operator and for maintenance access.
