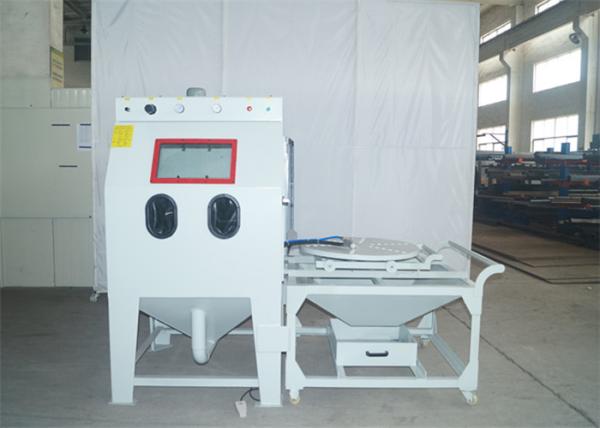

Turntable Dry Suction Blast Cabinet , Abrasive Blasting Cabinets For Large Mold with Cart

Specifications

Descriptions:

As a rule, turntable units are designed for the processing of a particular work-piece with an individual degree of automation.

Linear operating vertical and horizontal nozzle moving devices increase the degree of automation of the units. Even the basic version can be equipped with turntables in different sizes to take the parts. The bottom part of the body of the machine is designed as a hopper, which collects the circulating blasting media. This material hopper is fitted with discharge buckets to which the blasting guns are connected.

On the back wall of the machine there is an updraft separator that catches residual blasting media, dust and light foreign bodies. After blasting, the parts are blown off by special nozzles in a chamber that is separate from the blasting chamber to remove any residual blasting media.

Applications:

Used in sandblasting heavy workpieces, such as mold, stone carvings, motor and aluminum wheels etc.

Advantages:

● Equipped with separator, which can make more efficient separation of abrasives and repeated use.

● It’s also equipped with the dust collector, no floating dust produced while working, which greatly reduce the dust pollution to the environment and health hazards to operators

● When operating, place the workpiece on the rotary table of the platform, push the rotary into the sandblasted cabinet, and then close the door to start blasting

TS blast cabinets can be customized with many optional accessories like:

Boron carbide nozzles 6, 8, 10 ,12mm

Blow-off (blowing) gun

Blast gun holder

Inside rubber lining

Rubber/plastic blast gloves

Metal ring for glove attachment

Manual turntable

Feet pedal

Recommended equipment and accessories:

Abrasive media

Dust collector or recycling unit

Packing of Cart and Turntable:
