Full - Auto PE Blow Molding Machine , 8L-20L Extrusion Blow Molding Machine ABLB90
Full - Auto PE Blow Molding Machine , 8L-20L Extrusion Blow Molding Machine ABLB90
Full - Auto PE Blow Molding Machine , 8L-20L Extrusion Blow Molding Machine ABLB90
Full - Auto PE Blow Molding Machine , 8L-20L Extrusion Blow Molding Machine ABLB90
Specifications
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
APOLLO
Certification :
CE/SGS
MOQ :
1SET
Packaging Details :
Film packaging
Delivery Time :
40DAYS
Payment Terms :
L/C, T/T
Supply Ability :
20 SETS PER MONTH
Dry cycle :
450pc/h
Screw L/D ratio :
25 L/D
Screw heating capacity :
18 KW
Output of HDPE :
130 KG/H
Clamping force :
260 KN
Mold stroke :
450-1000mm
Description

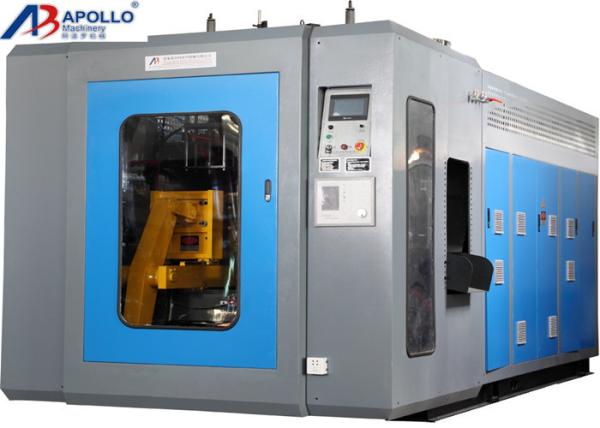

Full-auto PE blow molding machine 8L-20L Extrusion blow moulding machine ABLB90

ABLB90 blow molding machine is suitable for producing all kinds of plastic containers and bottles in all shapes from 5L to 20L.Adopt advanced PLC control system and a simple panel.PLC control system has counting function and time control presion to 0.1 second.Special fan design for the cooling system in the heating channel to keep the oven with constant temperature and ensure the plastic can be heated evenly.
Perfect design, guaranteed quality with economics investment.
Easy to operate and maintain,operated by one person,no need professional training.
If you need further info.,don’t hesitate to contact us.
For more information about the machine,please don't hesitate to contact us.

Related technical parameter(ABLB90)

Max. Product volume 20liters Dry cycle 450pc/h
Screw diameter 90mm Screw L/D ratio 25 L/D
Screw drive power 37 KW Screw heating capacity 18 KW
No.of heating zone 4 zones Output of HDPE 130 KG/H
Oil pump drive power 30 KW Clamping force 260 KN
Max.size of mold 700X950mm Mold stroke 450-1000mm
Max.die diameter 340mm Die heating powe 7.6 KW
Die heating segments 4 zones Blowing pressure 0.8mpa
Air volume 1.0 M/MIN Cooling water pressure 0.3mpa
Water consumption 90 L/MIN

PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
Pairs of spiral type flow dishes of first-in first-out store material mould hair, remove and converge the line completely, guarantee the purity of the products.
Multi- import wall thickness control system use, Can satisfy each irregular product to wall thickness request.
Gathers when the mold diffraction grating induction protective device, Increased the operation security.
Various kinds of functions suitable for matching special products, for instance; Leave and blow and go up and down, prop up the material ,the internal and external whorl is rotated, the drawing of patterns,the sub mould is opened and close, seal automatically, automatically take out/manipulator/,etc.
