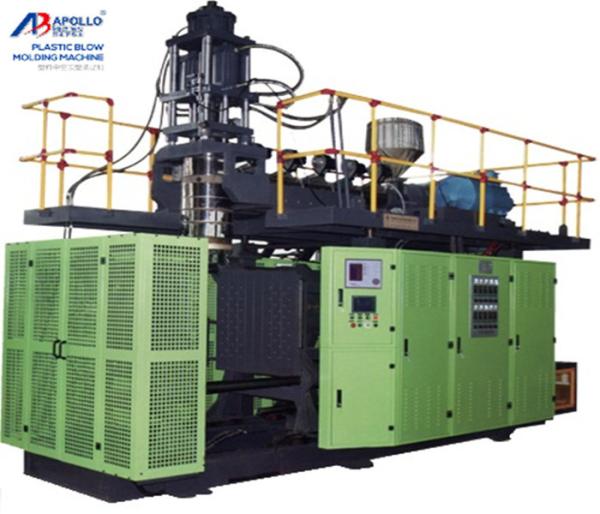

100L 120L 150L Blue Plastic Drum Making Machine Jerry Can Extrusion High Efficiency
100L 120L 150L Blue Plastic Drum Making Machine Jerry Can Extrusion High Efficiency
100L 120L 150L Blue Plastic Drum Making Machine Jerry Can Extrusion High Efficiency
100L 120L 150L Blue Plastic Drum Making Machine Jerry Can Extrusion High Efficiency
100L 120L 150L Blue Plastic Drum Making Machine Jerry Can Extrusion High Efficiency
100L 120L 150L Blue Plastic Drum Making Machine Jerry Can Extrusion High Efficiency
Specifications
Brand Name :
APOLLO
Model Number :
ABLD110
Certification :
CE/SGS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 SETS PER MONTH
Delivery Time :
90DAYS
Packaging Details :
Film packaging
Max. volume :
160L
Screw diameter :
110mm
Oil pump drive pump :
30KW
Clamping force :
900KN
Materail storage :
22L
Max die diameter :
650mm
Description

100L, 120L, 150L plastic oil blue drum extrusion automatic blow molding machine


Production line of blow molding machine
Product: 150L
Power supply: 380v 50 Hz Tri-phase
Output capacity: 800pcs/day
Suitable raw material: HDPE

Model No.: ABLD110(single station single die head)

This type of blow molding machine ABLD110 can produce bottle, kettle, can, flower pot etc. The machine is especially designed for producing with material PE, PVC, PP and so on.

Basic installation including

  • Die head: Center-feed die head
  • Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
  • Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
  • Blowing device: with upper blowing type
  • Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
  • Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand.

Unit price (including one series of spare parts)

  • Unite price (including one series of spare parts for wearing parts)

Basic parameters Suitable materail HDPE
Max volume 160L
Capacity 800pcs/day
Size LXWXH=5.8x3.2x4.6(M)
Weight 20T
System class System details Parameter Remark
Plasticizing system Summary High efficiency and low consumption plasticizing system, variable frequency speed regulation, automatic protection function at low temperature extrusion starting
Gear box Hard Tooth Surface, High Strength, Low Noise Antiwear Reducer
Barrel screw

∮90mm,L/D=28 38CrMoALA
High quality nitride steel, gradual mixing, high efficiency and energy saving screw

The barrel feeding place is available with
Cooling function
Plasticizing 240Kg/H ABS
Heating zone 5 Auto heading
Heating power 25KW/H
Screw motor 3 phase induction motor
Cooling fan 5 Auto cooling
Extruction head Summary

High quality alloy steel with central feeding
Head number 1
Head centre distance /
Max. die ∮650mm
Heating zones 4 Ceramic heater
Heating power 25KW
Open and close mold Summary High Strength, High Rigidity, Center Locking, Low Friction Mould Opening and Closing, Mould Shifting Mechanism
Clamping force 900KN
Mold stroke 550～1350mm
Template size WXH: 1150x1600mm
Mould thickness range 600-1300mm
Electrical control system Summary


PLC + touch screen (man-machine interface) standardized extrusion and blow hollow forming machine control system (automatic monitoring, fault alarm, automatic counting, auxiliary function selection)
Operating interface Touch screen operation, fault alarm auto-display
Action control XIEHE system from TAIWAN, Programming in Chinese and English
Electrical protection Electrical Short Circuit Automatic Protection Function with Current Overload
Hydraulic system Summary Multifunctional Hydraulic Integrated Block, Proportional Control, High Efficiency and Energy Saving
Oil pump motor Servo system
Oil pump Servo pump SUMITOMO from Switzerland
Valve parts Imported Hydraulic Valve Assembly
Oil pipe Double-Layer High Pressure Wear-Resistant Tubing
System pressure 100Kg/cm²
Cooling ways Independent water circulation, oil cooler cooling
Air system Summary Taiwanese AIRTAC Pneumatic Component Combination, Reserve One Way Action
Air pressure 0.8Mpa
Air displacement 1.0M3/min
Soleniod valve AIRTAC from TAIWAN
Cooling system Summary Mold, barrel, oil source three independent cooling water lines, non-interference with each other
Cooling medium Natural water and groundwater (frozen water is better)
Water flowing 150L/min
Water pressure 0.3MPa
