High Efficiency Extrusion Blow Molding Machine ABLD150 Clamping Force 800 KN
High Efficiency Extrusion Blow Molding Machine ABLD150 Clamping Force 800 KN
Specifications
Screw diameter :
150mm
Screw drive power :
55 KW
No.of heating zone :
5 zones
Oil pump drive power :
37 KW
Max.size of mold :
800X1250mm
Air volume :
1.6 M/MIN
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
APOLLO
Certification :
CE/SGS
MOQ :
1SET
Packaging Details :
Film packaging
Delivery Time :
40DAYS
Payment Terms :
L/C, T/T
Supply Ability :
20 SETS PER MONTH
Description

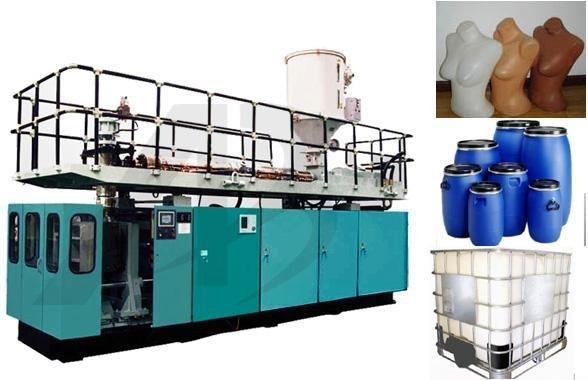

Auto Extrusion blow molding machine ABLD150

ABLD150 This machine with a material storage unit is suitable to produce plastic products volume to 160L and ideal cycle can up to 300PC/H. This machine is specially designed for production of various chemical barrels,tool boxes,plastic boards and etc. Big clamping force unit ensure the mold being tightly closed even under great pressure. Programe design with multifunction guarantee you can produce various craftworks. You don’t only buy one machine,but also a professor products professor. Easy to operate and maintain,operate by one person, professor trained is not required. Low investment with high efficiency.The machine cost will be regained within 1-2 years.
For more information about the machine,please don't hesitate to contact us.

Related technical parameter(ABLD150)

Max. Product volume 1000 liters Dry cycle 300pc/h
Screw diameter 150mm Screw L/D ratio 28 L/D
Screw drive power 55 KW Screw heating capacity 30 KW
No.of heating zone 5 zones Output of HDPE 240 KG/H
Oil pump drive power 37 KW Clamping force 800 KN
Max.size of mold 800X1250mm Mold stroke 600-1500mm
Max.die diameter 520mm Die heating powe 12 KW
Die heating segments 5 zones Blowing pressure 0.8mpa
Air volume 1.6 M/MIN Cooling water pressure 0.3mpa
Water consumption 180 L/MIN

PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
Pairs of spiral type flow dishes of first-in first-out store material mould hair, remove and converge the line completely, guarantee the purity of the products.
Multi- import wall thickness control system use, Can satisfy each irregular product to wall thickness request.
Gathers when the mold diffraction grating induction protective device, Increased the operation security.
Various kinds of functions suitable for matching special products, for instance; Leave and blow and go up and down, prop up the material ,the internal and external whorl is rotated, the drawing of patterns,the sub mould is opened and close, seal automatically, automatically take out/manipulator/,etc.
