Full - Auto PE Plastic Blow Moulding Machine 8L-20L 5 Gallon PC Bottle
Full - Auto PE Plastic Blow Moulding Machine 8L-20L 5 Gallon PC Bottle
Full - Auto PE Plastic Blow Moulding Machine 8L-20L 5 Gallon PC Bottle
Full - Auto PE Plastic Blow Moulding Machine 8L-20L 5 Gallon PC Bottle
Full - Auto PE Plastic Blow Moulding Machine 8L-20L 5 Gallon PC Bottle
Full - Auto PE Plastic Blow Moulding Machine 8L-20L 5 Gallon PC Bottle
Specifications
Price :
Negotiable
Place of Origin :
JIANGSU, CHINA
Brand Name :
APOLLO
Certification :
CE/SGS
MOQ :
1 Set
Packaging Details :
Film packing/Carton packing/Wooden packing
Delivery Time :
30 working days
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Max. Product volume :
5 gallon
Screw diameter :
80 mm
Screw drive power :
30 KW
No.of heating zone :
4 zones
Oil pump drive power :
22 KW
Max.size of mold :
550X650mm
Description

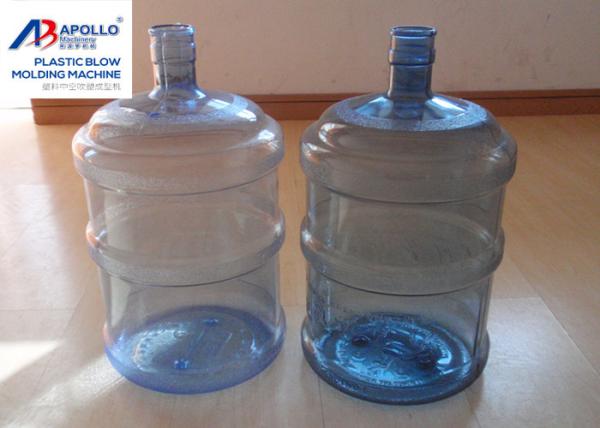

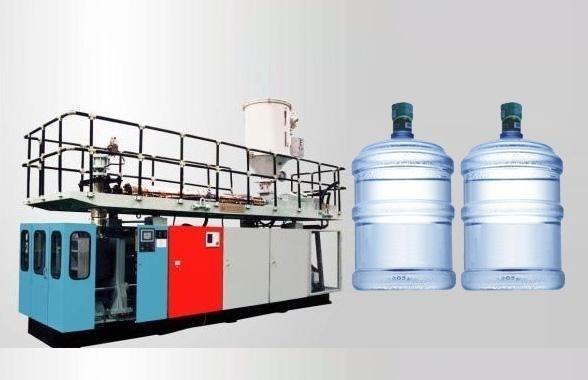

5 Gallon PC bottle blow molding machine is specilized in making 5 gallon PC bottles.We also have CE and ISO9001 certificate for you and offer engineer to your country to help you set up the machine.High quality assurance will be provided for you.
Equipped with special designed marterial storage
Silencer and oil system are used to reduce vibration and lubricate
The machine can be operated in step-by-step mode and also semi-auto mode.
Wide-mouth and irregular shape aslo can be produced in this machine.

Parision controllor make sure the wallthickness is perfect
The max. product volume is up to 5 gallon.
For more information about the machine,please don't hesitate to contact us.

Related technical parameter(ABLB80)

Max. Product volume 5 gallon Dry cycle 600pc/h
Screw diameter 80 mm Screw L/D ratio 25 L/D
Screw drive power 30 KW Screw heating capacity 16 KW
No.of heating zone 4 zones Output of HDPE 100 KG/H
Oil pump drive power 22 KW Clamping force 210 KN
Max.size of mold 550X650mm Mold stroke 350-780mm
Max.die diameter 280mm Blowing pressure 0.8mpa
Air volume 0.8 M/MIN Die heating power 5.3 KW
Die heating segments 4 zones
