ABLB65II Automatic Blow Molding Machine , Plastic Bottle Manufacturing Machine 5ml-2L
ABLB65II Automatic Blow Molding Machine , Plastic Bottle Manufacturing Machine 5ml-2L
ABLB65II Automatic Blow Molding Machine , Plastic Bottle Manufacturing Machine 5ml-2L
ABLB65II Automatic Blow Molding Machine , Plastic Bottle Manufacturing Machine 5ml-2L
ABLB65II Automatic Blow Molding Machine , Plastic Bottle Manufacturing Machine 5ml-2L
ABLB65II Automatic Blow Molding Machine , Plastic Bottle Manufacturing Machine 5ml-2L
ABLB65II Automatic Blow Molding Machine , Plastic Bottle Manufacturing Machine 5ml-2L
ABLB65II Automatic Blow Molding Machine , Plastic Bottle Manufacturing Machine 5ml-2L
ABLB65II Automatic Blow Molding Machine , Plastic Bottle Manufacturing Machine 5ml-2L
ABLB65II Automatic Blow Molding Machine , Plastic Bottle Manufacturing Machine 5ml-2L
Specifications
Price :
Negotiable
Place of Origin :
JIANGSU, CHINA
Brand Name :
APOLLO
Certification :
CE/SGS
MOQ :
1 Set
Packaging Details :
Film packing/Carton packing/Wooden packing
Delivery Time :
30 working days
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Air volume :
0.7 M³/MIN
Max.die diameter :
140mm
Max.size of mold :
330X360mm
Oil pump drive power :
5.5 KW
No.of heating zone :
3 zones
Screw drive power :
18.5 KW
Description

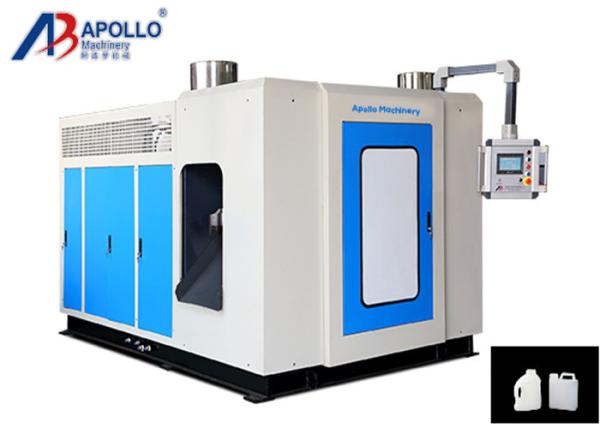

Automatic blow molding machine 5ml-2L Automatic bottle blow molding machine ABLB65II

ABLB65II This type of machine is sutiable to produce different shapes of plastic bottles from 50ml to 1.5L.
Adopt Misubishi PLC from Japan Contactor use Schneider from France Most of spareparts of hydraulic system and pneumatic system are impored from Japan,Korea,France and Taiwan,china to ensure the quality of the machine.
For more info.,please contact us.

Related technical parameter:: (ABLB65II)

Max. Product volume 1.5 liters Dry cycle 800X2pc/h
Screw diameter 65mm Screw L/D ratio 24 L/D
Screw drive power 18.5 KW Screw heating capacity 5.7 KW
No.of heating zone 3 zones Output of HDPE 80 KG/H
Oil pump drive power 5.5 KW Clamping force 45 KN
Max.size of mold 330X360mm Mold stroke 148-508mm
Max.die diameter 140mm Blow pressure 0.6mpa
Air volume 0.7 M³/MIN Cooling water pressure 0.3mpa
Water consumption 65 L/MIN

PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
