Specifications
Place of Origin :
Jiangsu, China
Brand Name :
blow molding machine
Model Number :
ABLB90II
Certification :
CE
Packaging Details :
Film packaging
Price :
$50,000.00/sets
Condition :
New
Application :
Bottle
Plastic Processed :
PE
Year :
2019
Voltage :
220V or 380V or 415V
Dimension(L*W*H) :
4.1*2.2*3.5 M
Hollow part volume :
29CBM
PLC Brand :
MITSUBISHI
Power (kW) :
30
Key Selling Points :
Long Service Life
Warranty :
12months
Applicable Industries :
Home Use
Blow Moulding Type :
Extrusion Blow Moulding
Automatic :
Yes
High Pressure Valve Brand :
SMC
Rotary Cylinder Brand :
SMC
After-sales Service Provided :
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Clamping Force :
140KN
Weight (KG) :
11000
Product name :
Bottle /HDPE Jerry Can Blow Mold Machine
Material :
HDPE LDPE LLDPE
Color :
Yellow
Machine type :
Extrusion
Weight :
11t
Power(W) :
62.3W
Description

Bottle /HDPE Jerry Can Blow Mold Machine

ABLD75(single station single die head)

ABLD75 extrusion blow moulding machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 25L.

The features of this machine:

(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 25L.

(2)Single station single die head design,very easy to operate and maintenance.

(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.

(5)Accumulation die head,MOOG parison controller equipped.

(6)Bottom blow technology make the product perfect.

(7)Auto lubricant system controlled by PLC.

Main parts of Machine


Explanation

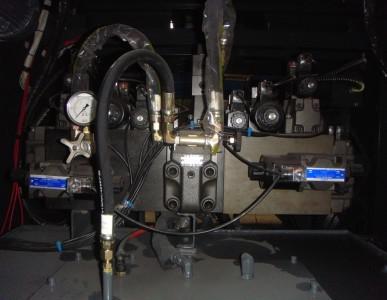

Oil Pump

HDPE Bottle Jerry Can Blow Mold Machine 29CBM 4.1*2.2*3.5 M

Oil pump From Japan YUKEN driving the machine

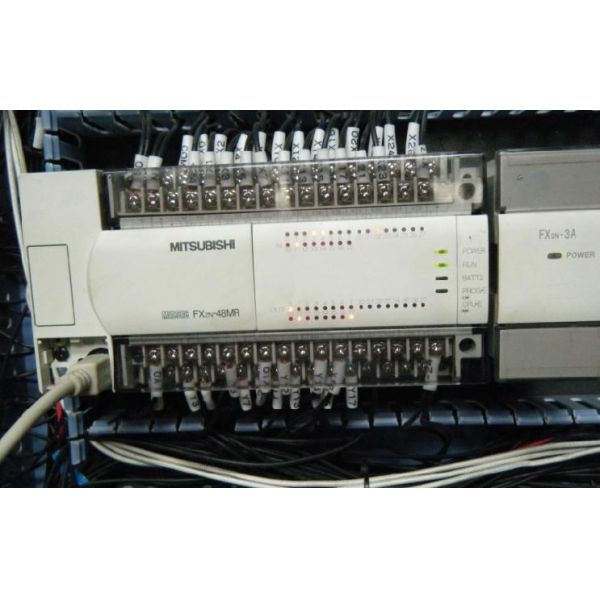

Computer control system (PLC)

HDPE Bottle Jerry Can Blow Mold Machine 29CBM 4.1*2.2*3.5 M

Japanese Mitisubishi PLC

Used to control all electrial components and touch screen

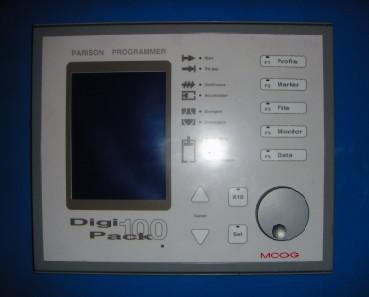

Parison

controllor

HDPE Bottle Jerry Can Blow Mold Machine 29CBM 4.1*2.2*3.5 M

MOOG parison

Controllor

Control the thickness of products

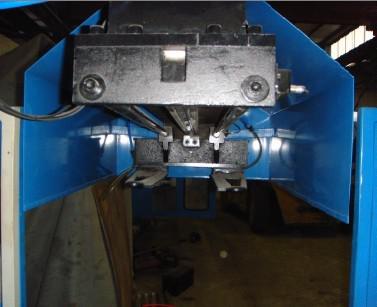

Screw cutter device

HDPE Bottle Jerry Can Blow Mold Machine 29CBM 4.1*2.2*3.5 M

This device is able to remove the extra top of gallons

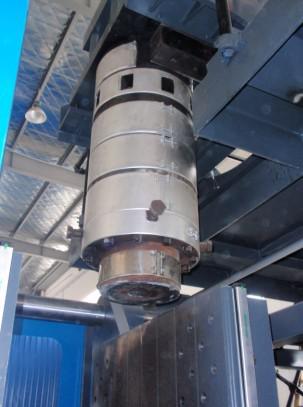

Die head

HDPE Bottle Jerry Can Blow Mold Machine 29CBM 4.1*2.2*3.5 M

Accumulation die head

Manipulator

HDPE Bottle Jerry Can Blow Mold Machine 29CBM 4.1*2.2*3.5 M

Manipulator will

Take the finished

Product out

automatically

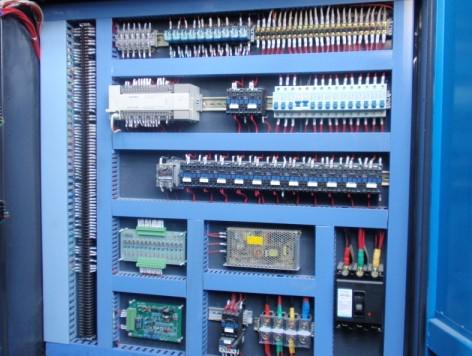

Electric Cabinet

HDPE Bottle Jerry Can Blow Mold Machine 29CBM 4.1*2.2*3.5 M

This part is the full electric components of the machine

The main components of the machine. ( ABLD75 )

electronic parts

Name

Trader

Micro computer control system

Japanese MITSUBISHI

Temperature Controller

TAIWAN YANHUA PID

Auxiliary Relay

OMRON

contactor

Schneider from France

Electric motor

Three phase 220V or 380V

Power Source

TAIWAN MEANWELL

Transducer

TAIDA FROM CHINA

hydraulic parts

Name

Trader

Oil pump

TAIWAN HIGH-TECH

Valve

JAPAN YUKEN

Oil pump and connection

JAPAN YUKEN

Sealed part

HALLITE

air control system

Name

Trader

Cylinder

AIRTAC

Air Valve

FESTO

Technical Parameters: ( ABLD75 )

Max. Product volume

25 liters

Output capacity

80~120pc/h

Screw diameter

75mm

Screw L/D ratio

25 L/D

Screw drive power

30 KW

Screw heating capacity

16 KW

No.of heating zone

4 zones

Output of HDPE

100 KG/H

Oil pump drive power

22 KW

Clamping force

210 KN

Max.size of mold

550X650mm

Mold stroke

350-780mm

Max.die diameter

280mm

Die heating power

5.3 KW

Die heating segments

4 zones

Blowing pressure

0.8mpa

Air volume

0.8 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

60 L/MIN
