38mm Neck Plastic Bottle Manufacturing Equipment 10 Cavities 20000BPH~12000BPH
38mm Neck Plastic Bottle Manufacturing Equipment 10 Cavities 20000BPH~12000BPH
38mm Neck Plastic Bottle Manufacturing Equipment 10 Cavities 20000BPH~12000BPH
38mm Neck Plastic Bottle Manufacturing Equipment 10 Cavities 20000BPH~12000BPH
38mm Neck Plastic Bottle Manufacturing Equipment 10 Cavities 20000BPH~12000BPH
38mm Neck Plastic Bottle Manufacturing Equipment 10 Cavities 20000BPH~12000BPH
Specifications
Brand Name :
RiBo
Model Number :
RiBo-10CR48-1.5L
Place of Origin :
Guangdong, China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
12 PCS/Month
Delivery Time :
120 days
Packaging Details :
Main machine and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box.
Condition :
New
Voltage :
Customized,3 phases 380V/50HZ
Plastic processed :
PET
Automatic :
Yes
Blow moulding type :
Stretch Blow Moulding
Product name :
blow molding machine
Capacity :
20000~12000BPH
Cavity :
10 Cavities
Suitable bottle :
Liquid Milk Drink ,Water Drinking Bottle
Use :
Making PET Bottle
Power :
158KW
Power consumption :
52~72KW
Key selling points :
High speed,high efficiency,saving energy
Air consuming :
12m³/min/40kg
Blowing pressure :
2.8~3.2 Mpa
Max.bottle volume :
1.5L
Max.neck diameter :
38mm
Max.bottle diameter :
90mm
Description

38mm Neck Liquid Milk Drinks Bottle / Mineral Water Bottle / Plastic Blow Molding Machine

This series is applied in making PET bottle for drinking water, beverages,liquid milk drinks……ect.

Machine Technical Parameter

Items Unit Model
RiBo-10CR48-1.5L
Molding Spec. Preform Pitch mm 96
Preform Heating Pitch mm 48
No.of Cav. cav. 10
Container Spec. Max.Container Volume L 1.5
Neck Diameter Range mm 38
Max.Preform height mm 150
Max.Preform diameter mm 37.5
Max.Containr Diameter mm 90
Max.Containr Height mm 320
※※Theoretical Output bph 20000~12000
Power Spec. Rated Power KW 158
Power Consumption KW 52~72
Compressor Spec. Blowing Pressure Mpa 2.8~3.2
Air Consuming m3/min 12
Main Machine Spec. Size mm 9039*3558*3350
Weight Kg 10500
Note: Due to continuous technical development specification would be improved without prior notice.
Special designs correspond to customers needs.

Machine advantages

1.Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and

rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.

2.Operation on the touch screen is simple and easy.

3.The high pressure blowing system is equipped with the air recycling device which may reduce the air consumption to achieve

the energy-efficient and environmental safe.

4.The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and blowing.

5.The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed

precision blowing valve unit helps to make high capacity.

6.The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high

speed and accurate preform handling between the two mechanism.

7.The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform.Hinged

oven holders make it easy for the operators to change infrared tubes and do maintenance.

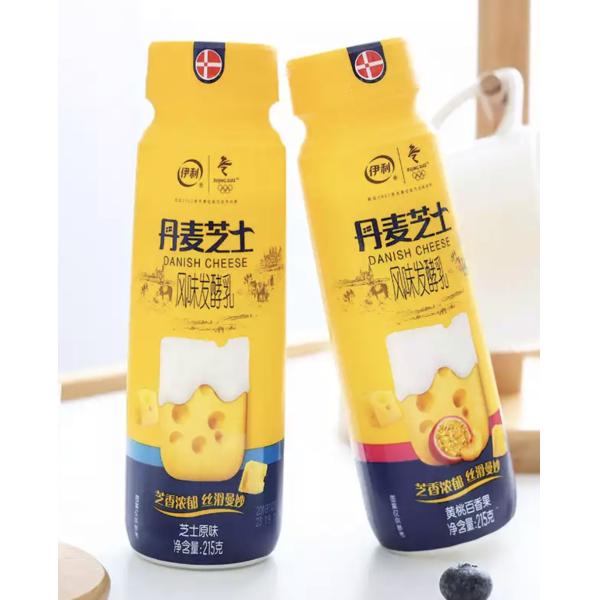

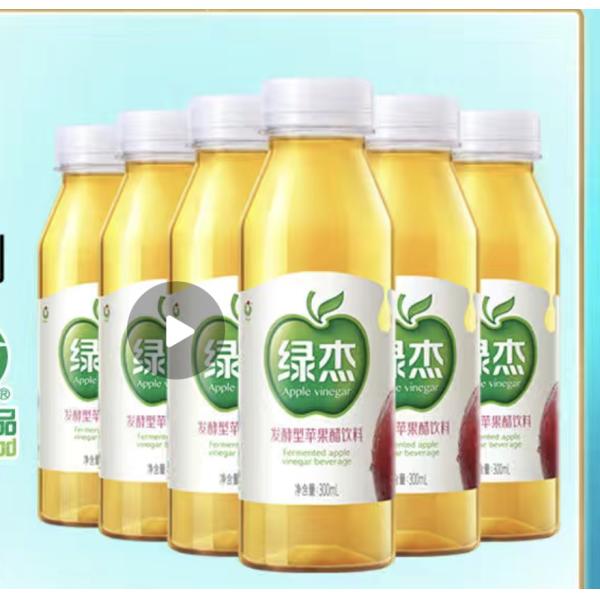

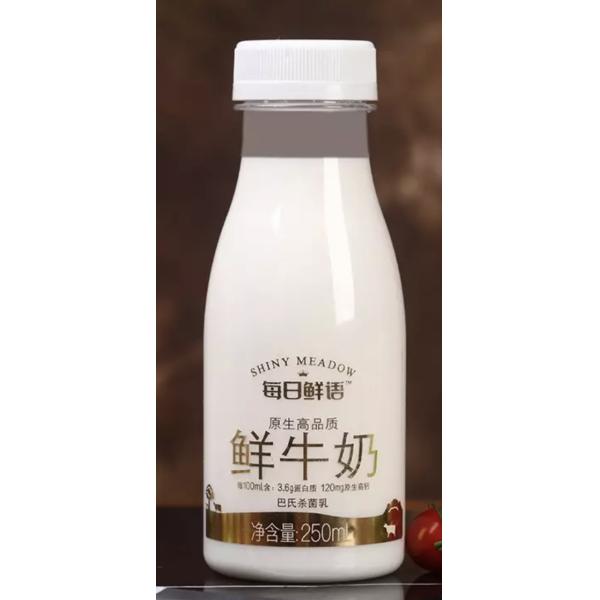

Some Bottle Design as following

38mm Neck Plastic Bottle Manufacturing Equipment 10 Cavities 20000BPH~12000BPH38mm Neck Plastic Bottle Manufacturing Equipment 10 Cavities 20000BPH~12000BPH38mm Neck Plastic Bottle Manufacturing Equipment 10 Cavities 20000BPH~12000BPH
