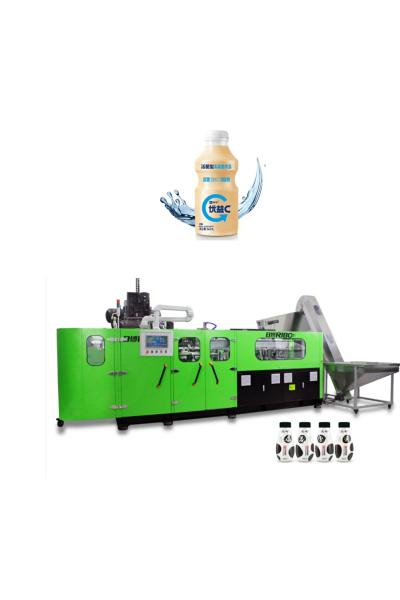

2L Drinking Water , Carbonated Soft Drink Bottle PET Blow Moulding Machine

Performance and Advantages

i.The man-machine interface is easy to operate. Everything is computerized, including temperature adjustment and preform

distribution.

ii.Independent movable operation pannel, make the operation more convenient and flexible.

iii.Preform unscrambling, loading, bottle handling and ordering are all operated by stainless steel manipulator automatically

without a second contamination.

iv.During the process of the automatic embryo preform feeding system, each preform channel has photoelectric detection,

control the action of the upper motor and the parting cylinder, ensure the uniform distribution of the preform in each embryo

channel, and have the function of alarming the material shortage.

Easy Maintenance

Omron servo controller system (motion controller, modular) is connected with the machine via particular communicating

cables.The user can manage all the actions of the machine through the motion controller. Once the machine has a fault, the

man-machine interface will provide warning signals and fault diagnosis report to the operator, the operator can quickly find the

cause of the fault and troubleshoot as soon as possible through the fault display.

★ If the bottle is blocked/full in the air conveyor, the function of automatic stop feeding preforms can be set in the program

through photoelectric detection.

★ If the machine after blowing machine stops working for too long time, the heating lamp can be set with the function of

automatically reducing temperature, saving electricity consumption and avoid the excessive temperature in the heating seat.

The safety of operators

The machine is totally enclosed with perfect reliable safety door and also equipped with aluminum antislip plate on the principal

surface, which can assure operators' safety to the largest degree.

Technical Parameter
