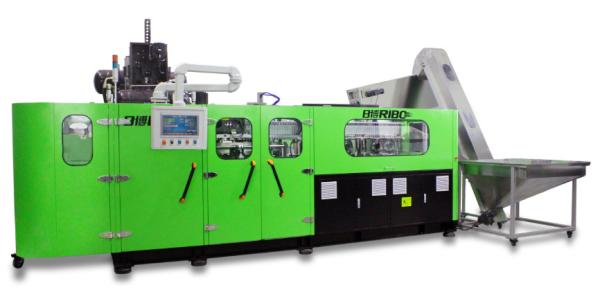

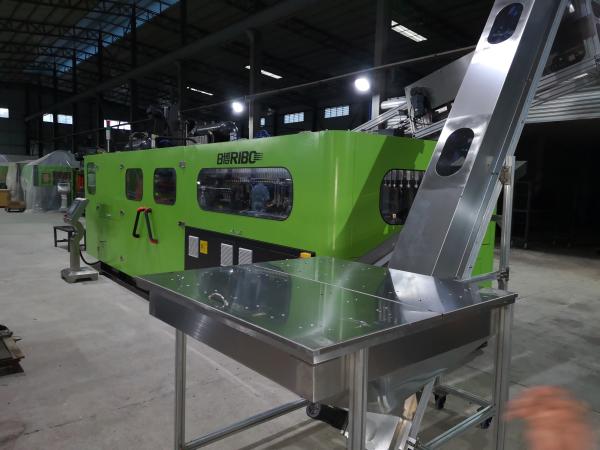

148KW PET Blow Moulding Machine Anti Corrosion For Energy Drink Bottle
148KW PET Blow Moulding Machine Anti Corrosion For Energy Drink Bottle
148KW PET Blow Moulding Machine Anti Corrosion For Energy Drink Bottle
148KW PET Blow Moulding Machine Anti Corrosion For Energy Drink Bottle
148KW PET Blow Moulding Machine Anti Corrosion For Energy Drink Bottle
148KW PET Blow Moulding Machine Anti Corrosion For Energy Drink Bottle
Specifications
Brand Name :
RIBO
Model Number :
RiBo-8CR48-2L
Place of Origin :
Guangzhou China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
30 PCS/Year
Delivery Time :
120 days
Packaging Details :
Machine will be packed by wooden pallet
Automatic :
Yes
Warranty :
12 Months
After-sales service provided :
Engineers available to service machinery overseas,commissioning and training
Blow moulding type :
Stretch Blow Moulding
Application :
Bottle,Mineral water bottle
Plastic processed :
PET
Capacity :
14000~8800BPH
Machine type :
Auto,Stretch Blow Molding Machine,High Speed Plastic Bottle Making Machine
Rated Power :
148KW
Air consuming :
10 M3/min/40kg
Description

38# Juice , Energy Drinks Bottle PET Blow Moulding Machine

Technical Parameter

Items Unit Model
RiBo-8CR48-2L
Molding Spec. Preform Pitch mm 120
Preform Heating Pitch mm 48
No.of Cav. cav. 8
Container Spec. Max.Container Volume L 2
Neck Diameter Range mm 38
Max.Preform height mm 150
Max.Preform diameter mm 37.5
Max.Containr Diameter mm 114
Max.Containr Height mm 320
※※Theoretical Output bph 14000~8800
Power Spec. Rated Power KW 148
Power Consumption KW 50~70
Compressor Spec. Blowing Pressure Mpa 2.8~3.2
Air Consuming m3/min 10
Main Machine Spec. Size mm 8192x3421x3300
Weight Kg 10200
Note: Due to continuous technical development specification would be improved without prior notice.
Special designs correspond to customers needs.

R series linear full electric PET bottle blow molding machine is a high speed automatic PET blower designed and developed

with the most advanced bottle blowing technology at present, the advantages of which can be described as speedy, stable,

simple, general purposed and environmental safe. It is mainly applicable in blow molding PET containers for water, beverage,

juice, etc. The machine yields abundantly with high efficiency. The capacity of each cavity has been increased to

2750~2000bph when the bottle size is equal to or less than 0.55L respectively, which can meet the high-end customer's

requirements. Equipped with preform auto loading system, the machine works fully automatically with consistent performance

and high speed, without any operator's interference during the whole processes. Accordingly, chance of contamination can be

reduced manifestly, which assures the quality of products.

This series is applied in making PET bottle for drinking water, beverages,liquid milk drinks……ect.
