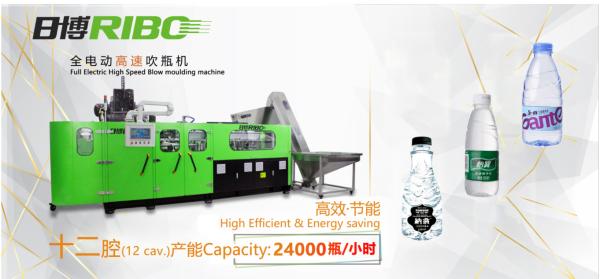

Low Noise 1 Litre Blow Moulding Machine 24000BPH 2.5Mpa~3.2Mpa Power Consumption
Low Noise 1 Litre Blow Moulding Machine 24000BPH 2.5Mpa~3.2Mpa Power Consumption
Low Noise 1 Litre Blow Moulding Machine 24000BPH 2.5Mpa~3.2Mpa Power Consumption
Low Noise 1 Litre Blow Moulding Machine 24000BPH 2.5Mpa~3.2Mpa Power Consumption
Low Noise 1 Litre Blow Moulding Machine 24000BPH 2.5Mpa~3.2Mpa Power Consumption
Low Noise 1 Litre Blow Moulding Machine 24000BPH 2.5Mpa~3.2Mpa Power Consumption
Specifications
Brand Name :
RiBo
Model Number :
RiBo-12CR600
Place of Origin :
Made in Guangzhou,China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70 pcs/Year
Delivery Time :
120 days
Packaging Details :
Main machine with film covered and the preform feeding system will be packed by the wooden pallet,spare parts and the bottle blow mould will be packed by the wooden box.
Model :
RiBo-12CR600
Cavity pitch :
76mm
Preform heating pitch :
38mm
No.of cavity :
12
Max.container volume :
700ml
Neck diameter range :
18~30mm
Max.container diameter :
70mm
Max.container height :
320mm
Output :
24000BPH
Rated power :
147KW
Power consumption :
50~68KW
Blowing pressure :
2.5~3.2Mpa
Air consuming :
12M3/min/40kg
Size :
8641x3640x3450mm
Weight :
11000kg
Condition :
New
Plastic processed :
PET
Blow moulding type :
Two step stretch Blow Moulding machine
Application :
Bottle,PET container
Voltage :
380V/3PH/50HZ,3phase 380V/220V/415V 50HZ
Warranty :
13 Months effected from the date machine arrived user's factory
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service,Field installation,Free spare parts
Product name :
Automatic Blowing Molding Machine,Blow Molding Equipment Manufacturers Used Making Bottles,5 gallon mineral water bottle blow molding machine
Name :
plastic blow moulding machine,Automatic servo motor blow molding machine
Description

Full Automatic Low Prices 1 Liter Small Pet Plastic Mineral Water Bottle Making Blowing Machine / Blow Molding Equipment

The unique servo motor driven screw varaible pitch system integrates mold clamping system and triggering off a bottom mold linkage in one movement, equipped with high speed servo driving system which greatly shortens the blowing cycle and accelerates the speed.This is where our upgrading solution value lies.

Low Noise 1 Litre Blow Moulding Machine 24000BPH 2.5Mpa~3.2Mpa Power Consumption

Equipped with remote monitoring system, engineers in China headquarter can check the data collected and sent by the PLC anytime with the mobile, feedback will be informed to the client' s site if something abnormal,give the machine 24 hours' baby care in the cradle

Low Noise 1 Litre Blow Moulding Machine 24000BPH 2.5Mpa~3.2Mpa Power Consumption

Heater distance in the heating oven is minimized to 38mm, compared with the conventional heating oven (preform heating pitch 76mm/114mm), it saves more than 40% electricity consumption.

Low Noise 1 Litre Blow Moulding Machine 24000BPH 2.5Mpa~3.2Mpa Power Consumption

Equipped with the high pressure air recovery system and redundant heat discharge system, it ensures the constant temperature in the heating ovens.

The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing.The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.

Low Noise 1 Litre Blow Moulding Machine 24000BPH 2.5Mpa~3.2Mpa Power Consumption

DISCOVER HIDDEN COST

When it comes to bottling drinks production, 70% energy occurs at the blower.Lines are expected to continuously produce more with less. Besides maximize the capacity, it is also important to minimize the using cost

Technical Parameter

Items Unit Model
RiBo-12CR600
Molding Spec. Preform Pitch mm 76
Preform Heating Pitch mm 38
No.of Cav. cav. 12
Container Spec. Max.Container Volume L 0.7
Neck Diameter Range mm 18~30
Max.Containr Diameter mm 70
Max.Containr Height mm 240
※※Theoretical Output bph 24000
Power Spec. Rated Power KW 147
Power Consumption KW 50~68
Compressor Spec. Blowing Pressure Mpa 2.5~3.2
Air Consuming m3/min 12
Main Machine Spec. Size mm 8641*3640*3300
Weight Kg 11000
*Due to continuous technical development specification would be improved without prior notice.
*Special designs correspond to customers needs.
