Fully automatic stacking equipment Yellow Brick Stacking Robot Machine

1. Product description

Brick Stacking Robot Machine product integrates mechanical, pneumatic and electronic control, and adopts a man-machine dialogue operation mode to realize the overall automation from clamping to stacking.

Brick Stacking Robot Machine is used for automatic stacking on a kiln car or a drying car. The stacking method can be customized according to the specifications of the kiln car.

(1) Fully automatic brick stacker, which can automatically pick up unburned bricks, transport and put them down.

(2) Adopting advanced servo control, the operation precision is high, the positioning is accurate, and the operation is stable and stable.

(3) The stacking method can be customized, suitable for various types of tunnel kilns.

2.Technical parameters:

3.Product Features

1. Suitable for a variety of brick, standard brick, porous brick.

2. Suitable for a variety of kiln-type and old kiln reconstruction, can save a lot of manpower, improve production efficiency.

3. Suitable for a variety of billet mode, flat code, stand code, code, fork code, flexibility, adjustable.

4. Site layout is simple, less land.

5. Adobe is not easy to deformation, pneumatic blanking, hydraulic lift, stable walking.

6. According to the size of kiln car design and manufacture and installation.

4.Structure and principle

1.In the operation of the equipment, the servo motor completes the overall layout of the brick body and accurately locates it.

2.The elevator adopts frequency conversion control technology, which has no effect on the overall operation of the equipment.

3.According to actual needs, there are process instructions for each time period, and the touch screen and button operation are reasonably configured, which is easy to maintain and maintain.

4.The total motor power of the automatic brick setting machine is 9KW.

5.Mechanical structure, walking and lifting double drag mode, the equipment is in operation, to ensure the balance of force and force.

6. The gas buffer is used to lift the bricks to work in reverse, which greatly reduces the impact on the reducer and balances the force of the reducer.

7.The clamping and sewing are all pneumatic, and the maintenance is intuitive and convenient.

The product has been exported to the United States, France, Canada, Indonesia, Russia, Vietnam, Australia, South Korea, Iran and other countries and has won unanimous praise from customers.

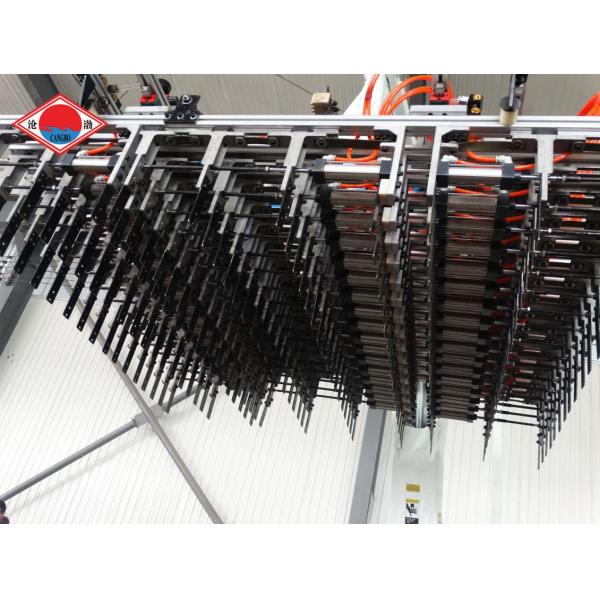

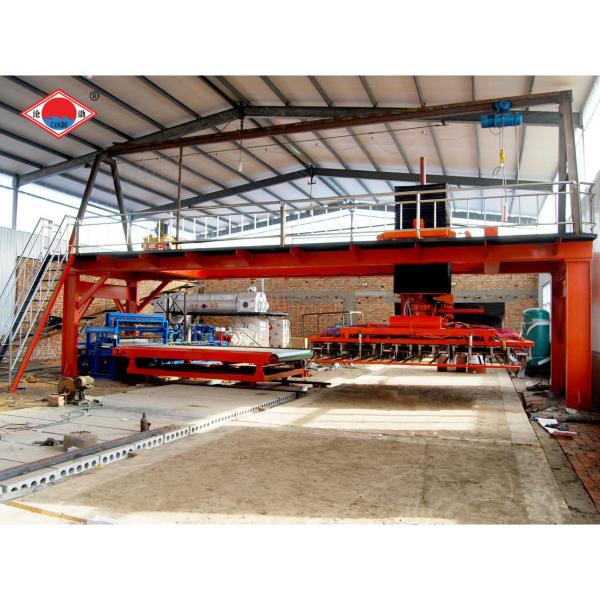

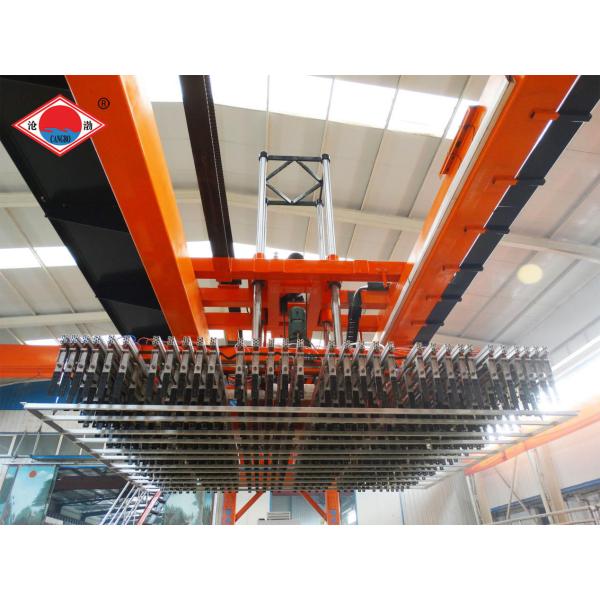

5.Machine picture
