Automatic Steel Single Shaft Brick Extruder Machine For Brick Plant

1, Product features:.

Double shaft mixer uses two symmetrical spiral axis of the synchronous rotation, while conveying dry powder and other powdery material while adding water and stirring, uniform humidification of dry powdery material, so that the humidification material does not take dry ash will not seepage The purpose of water droplets, so as to facilitate wet loading and transportation of ash loading or transfer to other conveying equipment. Mainly used in thermal power plants, brick, mining and other industries fly ash or similar materials wet loadinions.

2, Technical parameters

3. Characteristics

Double shaft mixer uses two symmetrical spiral axis of the synchronous rotation, while conveying dry powder and other powdery material while adding water and stirring, even humidification of dry powdery material, so that the humidification material does not take dry ash will not seepage Water droplets, so as to facilitate the loading and unloading of humidified ash and other conveying equipment, and is mainly applicable to the occasions where the wet loading of fly ash or the like in thermal power plants, mines and the like is carried out.

4. Equipment Structure Characteristics

Double shaft mixer mainly by the shell, screw shaft assembly, drive, piping, cover, chain cover and other components (see random external map), the specific structural performance characteristics are as follows:

1 Shell is mainly composed of plate and steel, welded in the factory forming, and assembled with other components, is the biaxial mixer support. Shell sealed tightly, there will be no fly ash, Yang, the phenomenon of leakage.

2. Screw shaft assembly is the main component of the biaxial mixer, its components are mainly about the screw shaft, bearing housing, bearing housing, bearing cover, gear, sprocket, oil cup, blades and other components.

Screw to the left and right axis to produce high precision requirements, process performance, and the bearing seat, bearing sleeve, bearing cap with strict requirements. The gear module is 8, the number of teeth is 60, the tooth profile angle is 20 °, the sprocket pitch is 50.8, the number of teeth is 25 and the profile is GB1224-85. Gears, sprockets have protective cover protection, safe and effective operation. Oil cup press-fit pressure cup, filling lubricant convenient and effective. Biaxial mixer blade material selection of wear-resistant and difficult to stick gray composite ceramic. Blade structure design is reasonable and easy, easy to change after wearing, long service life.

3. Water conditioning pipe mainly by the takeover, fittings and nozzles. Nozzle spray nozzle stainless steel cone, arranged in the mixer above the internal shell, along the axial direction of the spiral axis arranged to form a curtain to facilitate humidification mixing materials. Nozzle structure is simple, easy to replace, stainless steel, corrosion-resistant durable. Moisture content can be adjusted by operating the manual control valve on the supply line.

4. Cover mainly include left cover, middle cover, right cover, hole cover and access hole cover. Biaxial mixer on both sides of the set six manholes, to facilitate the operator's normal maintenance and repair. Biaxial mixer for pneumatic conveying end,

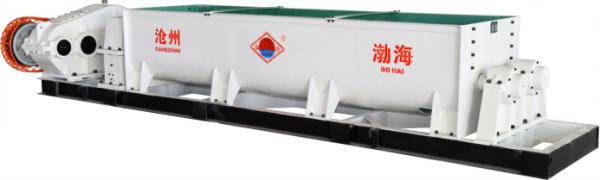

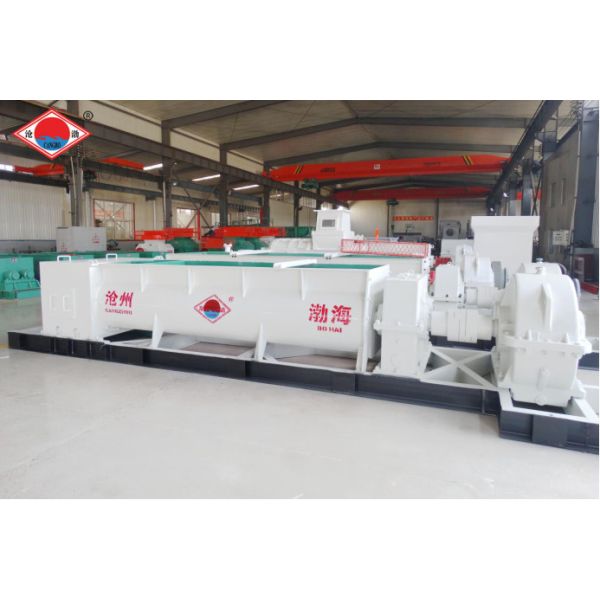

4.Machine pics
