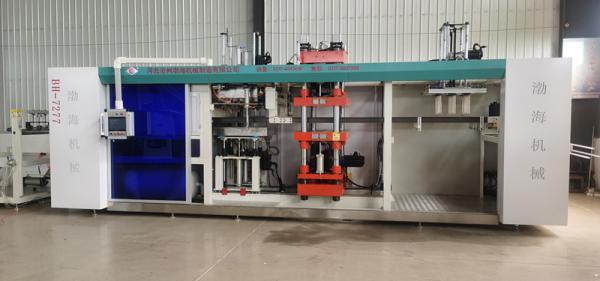

High Speed 125mm Automatic Blister Forming Machine For Plastic Food Box Pp
High Speed 125mm Automatic Blister Forming Machine For Plastic Food Box Pp
Specifications
Brand Name :
BoHai
Model Number :
BH-7177
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
Two in a month
Delivery Time :
20day
Packaging Details :
Container
Processing Type :
Plastic Thermoforming Machine
Max.Forming Height(mm) :
125mm
(mm): 710 mm Video outgoing-inspection: Provided Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Air Comsumption(L/min :
2.5 L/min
Weight (T) :
11T
Plastic Type :
Hips, PVC, PS, PP, PET
Warranty :
1 Year
Key Selling Points :
Easy to Operate
Description

Speed Automatic Plastic Blister Vacuum Forming Machine Food Box PP

Plastic cup thermoforming machine is our lasted developed product, Sheet feeding and stretching part are driven by servo motor.Machine produces disposable products, such as plastic cup, bowl, lid, and box through the workflow of sheet feeding, sheet heating, forming,

Product Paramenters

Model
TQC-750
TQC-650B
Max. Forming Area
750*480mm
650*320mm
Max. Forming Depth
125mm(custom height)
Sheet Thickness
0.3-1.8mm
Sheet Width
760mm
650mm
Max. Forming Speed
35 times/min
Air Pressure
0.6-0.8mpa
Air Consumption
3.0m³/min
2.0m³/min
Water Consumption
0.7m³/h
0.5m³/h
Rated Power
140Kw
98Kw
Used Power
98Kw
69Kw
Power Supply
AC 380V,50Hz, Three-phase, Four-wire
Dimension
L8500*W2200*H3100mm
L6000*W2000*H2700mm
Weight
About 6.5T
About 5T

cutting and blowing, widely used and suitable for most of the customer requested. PLC for program, manual interface for operation, stable, low noise, and high efficiency.
