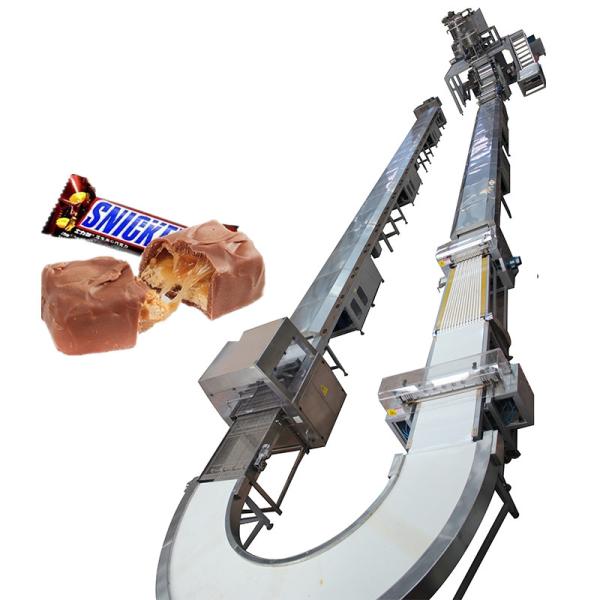

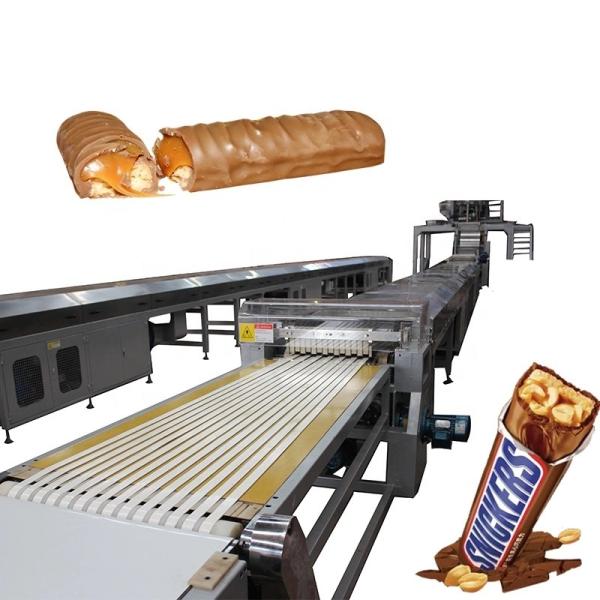

Healthy Snack Stainless Steel Chocolate Bar Production Line
Healthy Snack Stainless Steel Chocolate Bar Production Line
Healthy Snack Stainless Steel Chocolate Bar Production Line
Healthy Snack Stainless Steel Chocolate Bar Production Line
Healthy Snack Stainless Steel Chocolate Bar Production Line
Healthy Snack Stainless Steel Chocolate Bar Production Line
Specifications
Brand Name :
OEM
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Delivery Time :
15-25days
Packaging Details :
Export Standard Packing
Name :
Chocolate Bar Production Line
Capacity :
400kg/h
Machine Material :
Stainless Steel
Dimension(L*W*H) :
25m*25m*3m customized
Power(W) :
150kw
Voltage :
220V/380V/480V customized
Weight :
1000kg
Type :
Fully Automatic
Function :
Multifunctional
Applicable Industries :
Food & Beverage Factory
Description

Healthy Snack Stainless Steel Chocolate Bar Production Line​

Products Description


The production line is mainly used for producing producing different kind of bars with or without chocolate coating. The multi-functional production line is consists four section: cooking and mixing ; bar forming unit (including sheet forming/caramel depositing/nuts mixing/cooling/slitting and guillotine); chocolate enrobing and cooling unit; automatic conveying and flow packing unit. The cooking and mixing equipments are flexibility and different base on different technology for different types of bars; the bar forming section can be used for various kinds of materials such as fondant, aerated mass, caramel or mixed cereal, praline, condensed fruit, jelly etc..The universal bar forming principle is that bar core materials first sheeted by chilled roller, and then combined with nuts to cooling, slitting and guillotine to get bar shape and then move to the chocolate enrobing line which optional unit for chocolate coating products.

Parameters

Model
COB400
COB600
COB800
COB1000
TTP5000
Capacity
400kg/h
600kg/h
800kg/h
1000kg/h
1200kg/h
Steam Requirement
300kg/h, 0.2-0.8MPa
600kg/h, 0.2-0.8MPa
900kg/h, 0.2-0.8MPa
1200kg/h, 0.2-0.8MPa
1500kg/h, 0.2-0.8MPa
Compressed Air Requirement
0.9m3/min; 0.6MPa
1.2m3/min; 0.6MPa
1.5m3/min;
0.6MPa
1.8m3/min; 0.6MPa
2.1m3/min;0.6MPa
Working Condition
18-25℃ temperature humidity 55%
Workshop Size
28*4.5*>2.8m
35*5*>3m
38*6*>3.2m
45*8>3.5m
48*5>3.8
Electric Power Needed
65kW/380-220V
90kW/380V-220V
110kW/380-220V
135kW/380-220V
140kW/380-220V
Weight Of Machine
17500kg
20500kg
23500kg
26500kg
28500kg

Healthy Snack Stainless Steel Chocolate Bar Production LineHealthy Snack Stainless Steel Chocolate Bar Production Line
