240mm Aluminum Tube Sealing Machine 5kw Automatic Capsule Filling Machine
240mm Aluminum Tube Sealing Machine 5kw Automatic Capsule Filling Machine
Specifications
Brand Name :
LEADTOP
Model Number :
LTRG-60A
Certification :
CE certification
Place of Origin :
China
MOQ :
1 set
Price :
discuss personally
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 days/month
Delivery Time :
25days
Packaging Details :
wooden box
Model :
LTRG-60A
Tube Material :
Aluminum Tube
Tube Diameter :
Dia.5mm-50mm
Tube Length :
50-240mm (customizable)
Filling Volume :
5-250ml/piece (Adjustable)
Filling Accuracy :
≤±1%
Description

This equipment can automatically fill, seal, stamp batch numbers and exit tubes(with 8 tube position) . Inner-heating and outside -heating method is adopted in the heating section, which can blow hot-wind to the tube tail-ends inner wall.The parts touched with material adopt 304 stainless steel, which can proof acid, alkali and corrosion. All the channels can be unloaded fast and agilely.

The material-valve can be rotated, it can be cleanout easily, so there's no place for the dirty. Fixing organization can fix position precisely and firmly.

The position-turning part can change speed by using different-frequency. Customers can adjust the working speed themselves.

Main Features

This machine can be used for both plastic and laminated tubes.
This equipment is widely used in industry of toothpaste, cosmetic,pharmaceutical and food etc., it is applicable for various plastic tube and plastic-laminated-tube.
It can fill-pack all kinds of cream, latex, lotion, oil and water etc.
Before you use our equipment, read this user manual carefully, so that you can make a good use of our products.

Main technical parameters
Model LTRG-60
Tube Material Plastic tube, laminated tube,Aluminum Tube
Tube Diameter Φ5mm-Φ50mm
Tube Length 50-240mm (customizable)
Filling Volume 5-250ml/piece (Adjustable)
Filling Accuracy ≤±1%
Product Capacity (Pcs/min) 60pcs/min
Air Supply 0.55-0.65Mpa
Motor Power 4kw (380V/220V 50Hz)
Heat Sealing Power 5kw
Overall Dimension(mm) 2807*1240*1900mm (L*W*H)
Machine Weight (kg)

1100kg

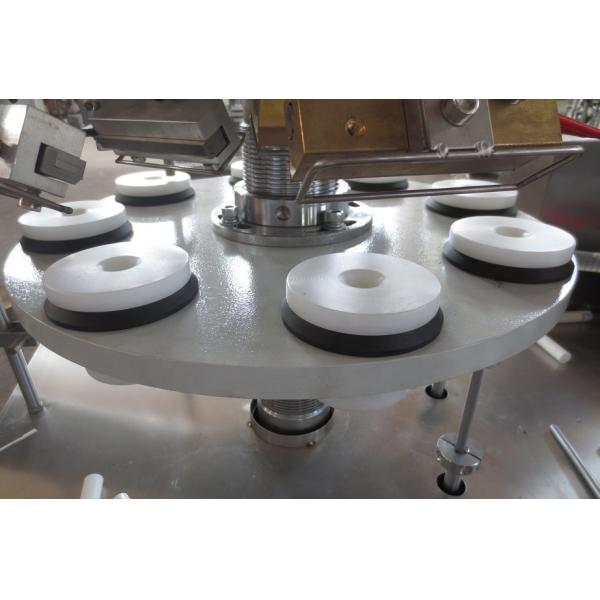

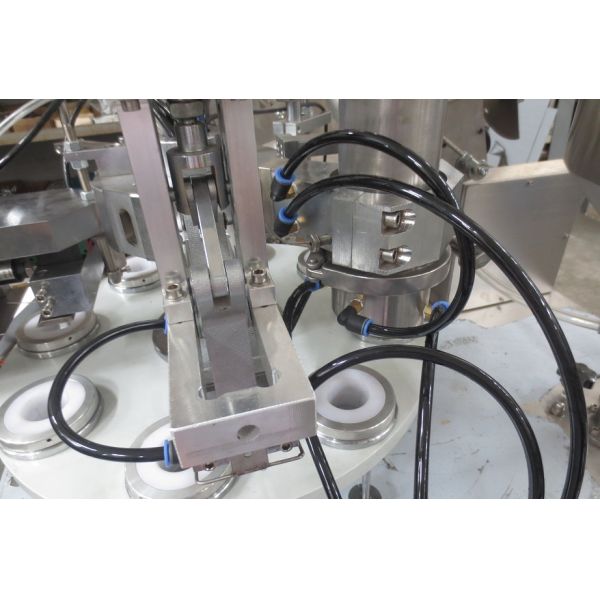

Detailed Images
240mm Aluminum Tube Sealing Machine 5kw Automatic Capsule Filling Machine240mm Aluminum Tube Sealing Machine 5kw Automatic Capsule Filling Machine240mm Aluminum Tube Sealing Machine 5kw Automatic Capsule Filling Machine240mm Aluminum Tube Sealing Machine 5kw Automatic Capsule Filling Machine
