V1.5 Wifi On And Off Switch OBD2 ELM327 Diagnostic Interface Work IOS And Android

We are factory, welome OEM customize.

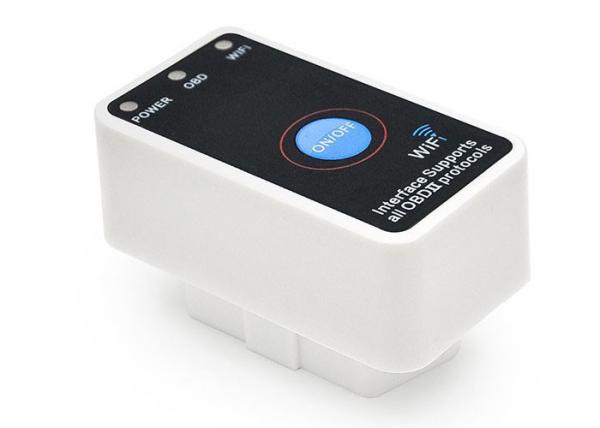

The Mini ELM327 WIFI + Power Switch scanner is an engine performance and diagnostics tool for automotive professionals and enthusiasts that allows you to wirelessly connect your car's onboard computer from your any Wi-Fi enabled device with the compatible application or software. The WiFi connectivity makes it compatible with your iPhone, iPad or iPod Touch. This model features an integrated power switch that allows you leave it plugged into your vehicle and turn it off when it's not in use.

Highlights:

ON/OFF Power Switch that allows you to keep it plugged in at all times
CLEAR engine codes and check engine lights
Pays for itself with one use
iPhone, iPad and iPod Touch compatible
Hassle-free setup: Setup in seconds
View real-time vehicle data while driving
Find and fix problems before they happen
Dimensions: 1.9 x 1.4 x 1 inches
Weight: 1 oz
Firmware Version: 1.5 (Latest)
Software Version: 1.5

Display real-time sensor data, including:

Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
Note : Your vehicle may not support all engine metrics. The availability of engine metrics varies depending on the vehicle make and model

Compatible Protocols

SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)

ELM327 WIFI detects and interprets these protocols automatically. It also provides support for high speed communications and a low power sleep mode. There are plenty of compatible software packages available that offer useful features such as real-time engine parameters and Engine check light reading and clearing. The iPhone iPad or iPod touch connection is made by WIFI in adHoc mode.

Technical Specifications
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 FT (Line of sight)
Antenna Type: Internal
Power Consumption: 0.75 Watts
Wi-Fi Standard: 802.11a/b/g
Operating Temperature: -15 to 100C
Dimensions: 2.75 x 1.25 x 1.2 inches

What's Included:

ELM327 WIFI OBD2 Scanner
Optional Software CD
Easy Setup Guide

Available applications in the Apple App Store include: REV, DashCommand, NovaScan, Engine Link, etc.
Apple iOS Easy Setup:
Go to WiFi settings, search for the WiFi connection called "WiFiOBD" and connect
Open your favorite application and connect to 192.168.0.10, Port 35000
Enjoy!
